Brand: SEALEY
Category: Wet & Dry Vacuum Cleaner
Document Type: Manual
Language: EN
Manual for PC150BV
Uploaded: Nov. 21, 2025, 8:53 p.m.
Manual Publish Date: 2024-10-14
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.

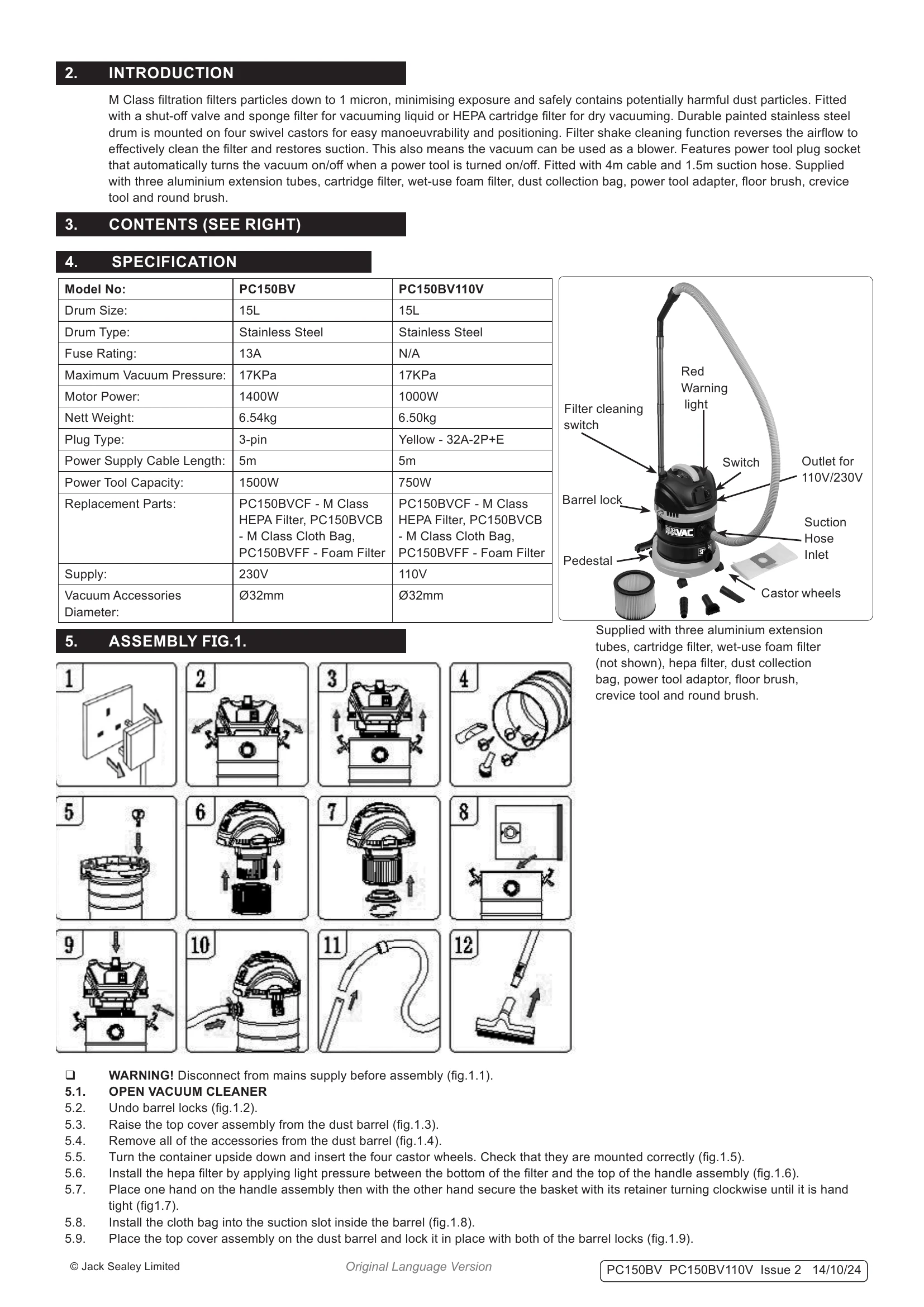

Assembly: Disconnect from mains. Undo barrel locks, lift top cover, invert barrel to attach castors, remove accessories, install HEPA filter, install cloth bag, place top cover and lock. Attach hose assembly to suction port, extend with tubes, and attach brush.
Dry Vacuuming: Disconnect from mains. Release barrel locks, lift top cover, check/install HEPA filter, place top cover and lock. Insert hose connector to air inlet, connect tubes and floor nozzle. Plug in and switch on.
Wet Vacuuming: Ensure vacuum is unplugged. Release barrel locks, lift top cover, install air inlet filter sponge. The safety valve stops suction at maximum capacity. Drain liquid when full.
Maintenance: Disconnect from mains. Clean barrel, filters, and accessories. Check for leaks. Clean filter after each use. If suction is reduced, check for blockages. Empty machine carefully. Keep dry. Do not use abrasives. Do not immerse top cover assembly in water. Limit operation to 2 hours. Stop immediately if abnormal vibrations, noises, or smells occur.
Troubleshooting and error codes
| Problem | Cause | Solution |
|---|---|---|
| Reduced suction | Filter clogged | Use filter cleaning switch (2-3 secs, 5-10 times). If still reduced, wash HEPA filter with clean warm water (mild detergent if soiled). Ensure filter is dry before reinstalling. |
| Reduced suction | Air intake blocked | Check for blockages and clear them. |
| Reduced suction (Red warning light) | Blockage/Clogged filter | Block inlet by hand. Press filter cleaning button (2-3 secs, 5-10 times). |
