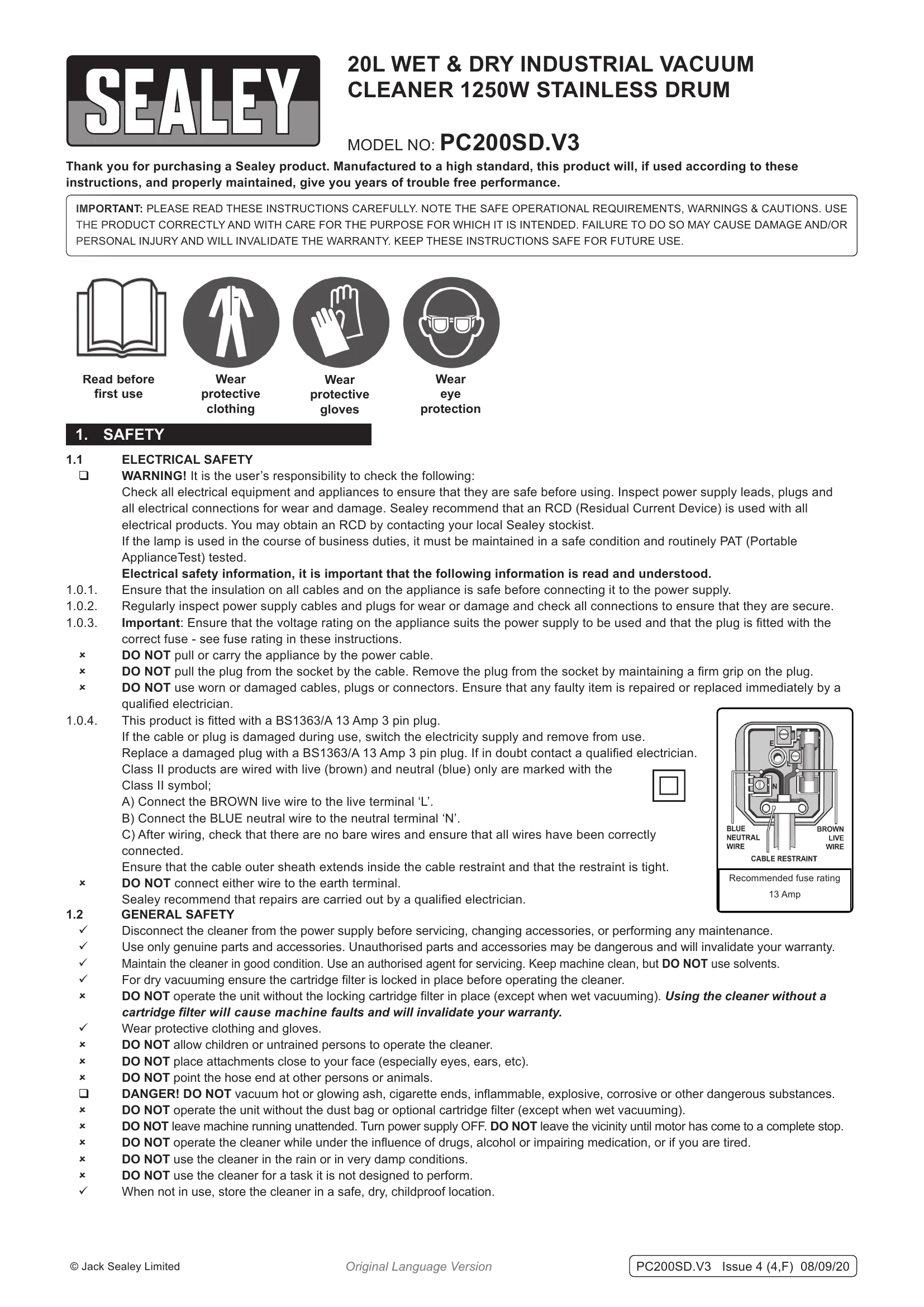

Manual for PC200SD.V3

Electrical Safety

• Ensure all electrical equipment is safe before use, checking leads, plugs, and connections for wear or damage.
• Use an RCD (Residual Current Device) with all electrical products.
• Ensure appliance voltage matches the power supply and the plug is fitted with the correct fuse.
• DO NOT pull the appliance by the cable or pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables or plugs.

General Safety

• Disconnect power before servicing or maintenance.
• Use only genuine parts and accessories.
• Maintain the cleaner in good condition and keep it clean, but DO NOT use solvents.
• For dry vacuuming, ensure the cartridge filter is locked in place.
• DO NOT operate without the cartridge filter for dry use.
• Wear protective clothing and gloves.
• DO NOT allow children or untrained persons to operate.
• DO NOT point attachments near the face or animals.
• DO NOT vacuum hot ash, flammable, explosive, corrosive substances.
• DO NOT operate without the dust bag or optional cartridge filter.
• DO NOT leave machine running unattended.
• DO NOT operate under the influence of drugs, alcohol, or if tired.
• DO NOT use in rain or damp conditions.
• DO NOT use for tasks it is not designed for.
• Store in a safe, dry, childproof location when not in use.

Dry Vacuum Cleaning

• Ensure machine is unplugged.
• Fit the locking cartridge filter.
• Reposition power head and clip in place.
• Insert the flexible hose into the front inlet and lock.
• Attach desired nozzle to the hose.
• Plug in and switch to 'On' (I). Switch to 'Off' (0) when finished.

Wet Vacuum Cleaning

• Ensure machine is unplugged and the tank is clean.
• Remove cartridge filter and fit foam filter.
• Refit power head.
• Attach desired nozzle to the hose.
• Plug in and switch to 'On' (I).
• When vacuuming large liquids, do not immerse nozzle fully.
• The float valve will stop suction when the tank is full; motor speed will increase. Turn off and empty tank.
• After use, turn off, unplug, empty tank, clean, and dry machine.
• Remember to refit cartridge filter before dry vacuuming.
• NOT designed for liquid storage; always empty liquids.

Blowing

• Push hose into blow connection.
• Ensure power switch is off and plug in.
• Switch on power (I).
• Clear obstructions. Turn off if hose remains blocked.

Maintenance

• Ensure machine is unplugged. Disconnect hose.
• Remove power head. Clear container and hose of dirt.
• Clean foam filter with mild soapy solution.
• Check telescopic tube and power cable for damage.

Cartridge Filter Maintenance

• Unlock and remove cartridge filter. Inspect for damage.
• To clean dry filter, tap inside a waste bin.
• DO NOT use if wet. Rinse from inside and air dry for 24 hours if inadvertently wetted.
• Fit cleaned filter and lock in place.

Troubleshooting

• Cleaner not operating: Check power supply, cable, switch, motor, or if container is full of liquid.
• Dust from motor cover: Cartridge filter missing/damaged or dust container full.
• Reduced efficiency: Filter clogged or nozzle/hose/inlet blocked.
