Brand: SEALEY
Category: Workshop Furniture
Document Type: Manual
Language: EN
Manual for AP1905C
Uploaded: Nov. 21, 2025, 9:19 p.m.
Manual Publish Date: 2016-04-13
Warranty Information
Guarantee is 12 months from purchase date, proof of which will be required for any claim.
1. SAFETY
- Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to.
- Locate bench in a suitable, well-lit, clean, and uncluttered working area.
- Use on level and solid ground (preferably concrete); avoid tarmacadam.
- Keep the bench clean and tidy.
- Keep children and unauthorized persons away from the working area.
- DO NOT use the bench for any purpose other than that for which it is designed.
- DO NOT exceed maximum capacity of workbench (300kg).
- DO NOT undertake work without the workpiece being adequately secured (use clamps or vice).
- DO NOT use the bench outdoors or in damp/wet locations.
- DO NOT clean with solvents that may damage the paint or wooden top.
2. INTRODUCTION
Heavy duty powder coated metal frame with a 40mm MDF work surface. Features storage with cupboards, drawers, and an open space with an adjustable shelf. Drawers have ball bearing runners. Cupboards have an inside peg board. Fully lockable with adjustable feet for stability. Supplied flat packed.

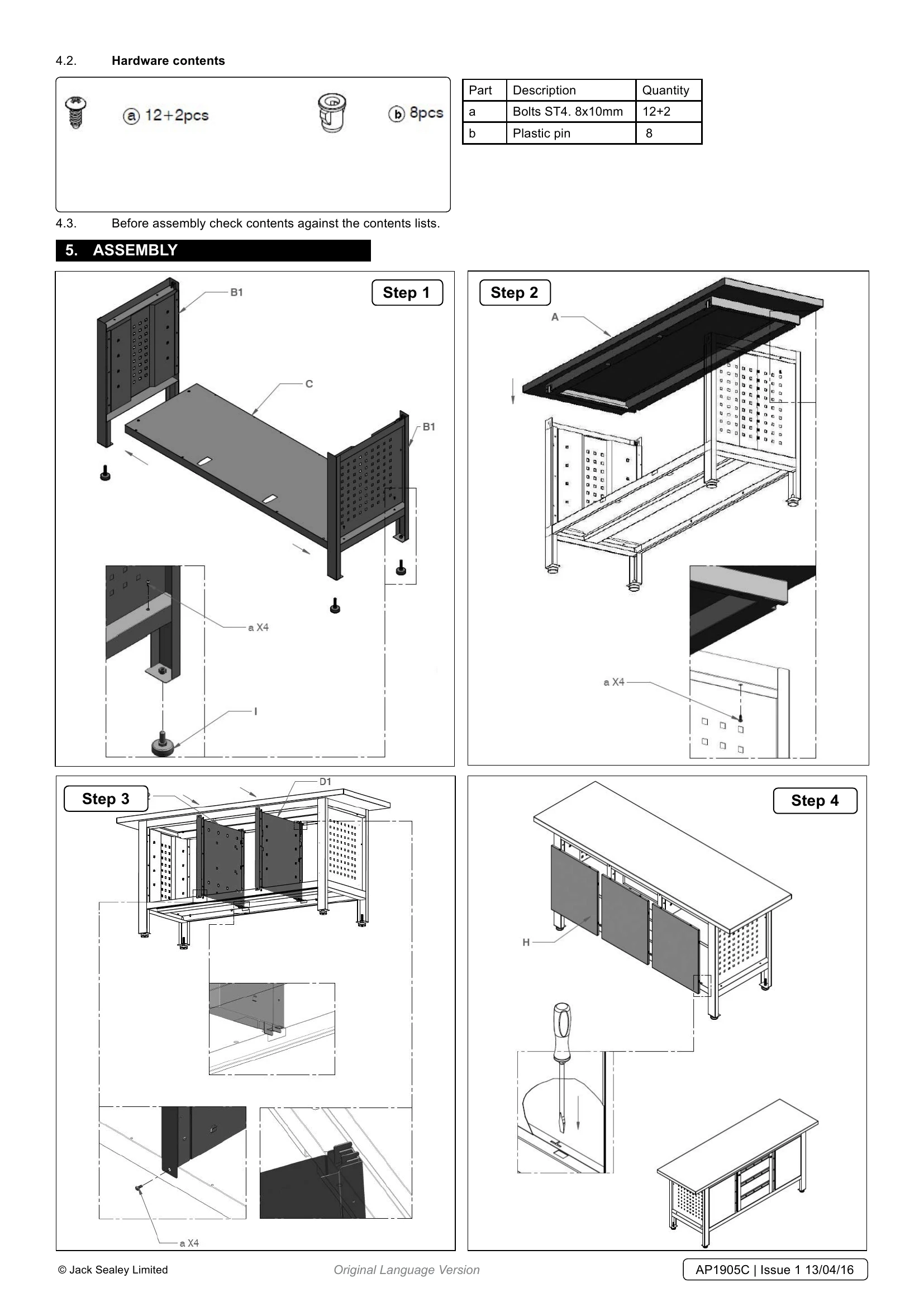

5. ASSEMBLY
Follow the step-by-step instructions provided, using the indicated parts and hardware. Ensure all parts are correctly aligned and secured before proceeding to the next step.
