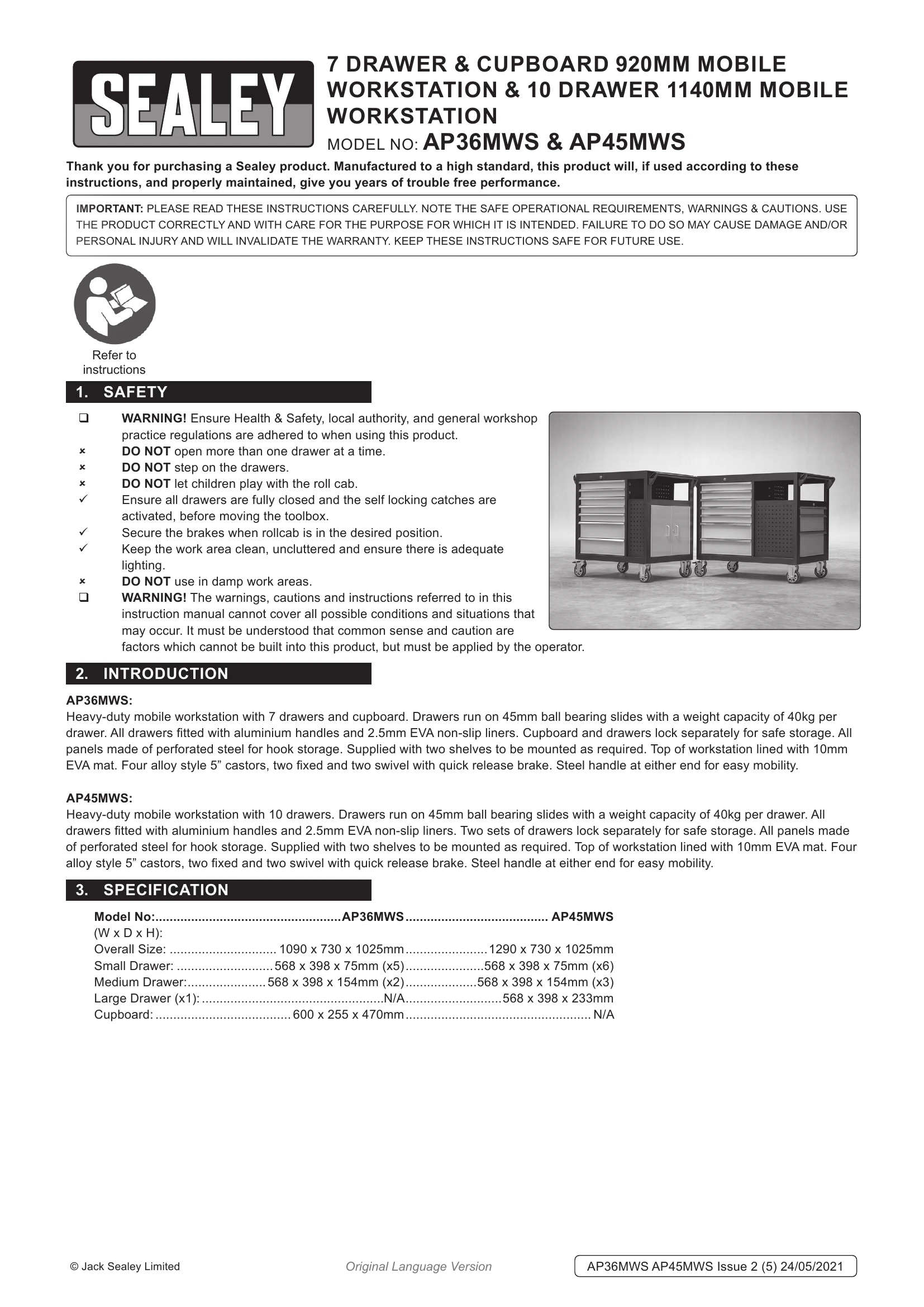

Manual for AP36MWS & AP45MWS
Uploaded: Nov. 21, 2025, 8:21 p.m.
Manual Publish Date: 2021-05-24
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.
1. Safety: Always adhere to Health & Safety regulations. Do not open more than one drawer at a time. Do not step on drawers. Ensure all drawers are closed and locked before moving. Secure brakes when the unit is in position. Keep the work area clean and well-lit. Do not use in damp areas.
2. Introduction: The AP36MWS is a 7-drawer & cupboard mobile workstation. The AP45MWS is a 10-drawer mobile workstation. Both feature heavy-duty construction, ball bearing slides with a 40kg capacity per drawer, aluminium handles, EVA non-slip liners, and perforated steel panels for hook storage. Both have a 10mm EVA mat top and 5" castors (two fixed, two swivel with brakes). Steel handles are provided at each end for mobility.
3. Assembly: Attach handles using screws and covers. Slot hooks into place using perforations.
4. Operation: Do not overload drawers (see fig. 2 for max weight per drawer). Ensure drawers are closed and locked before moving. Release brakes (fig. 5) before moving, and re-apply brakes once in position. Do not move across slopes greater than 5°.
