Brand: SEALEY
Category: Workshop Furniture
Document Type: Manual
Language: EN
Manual for APMS21
Uploaded: Nov. 21, 2025, 6:28 p.m.
Manual Publish Date: 2021-07-30
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.

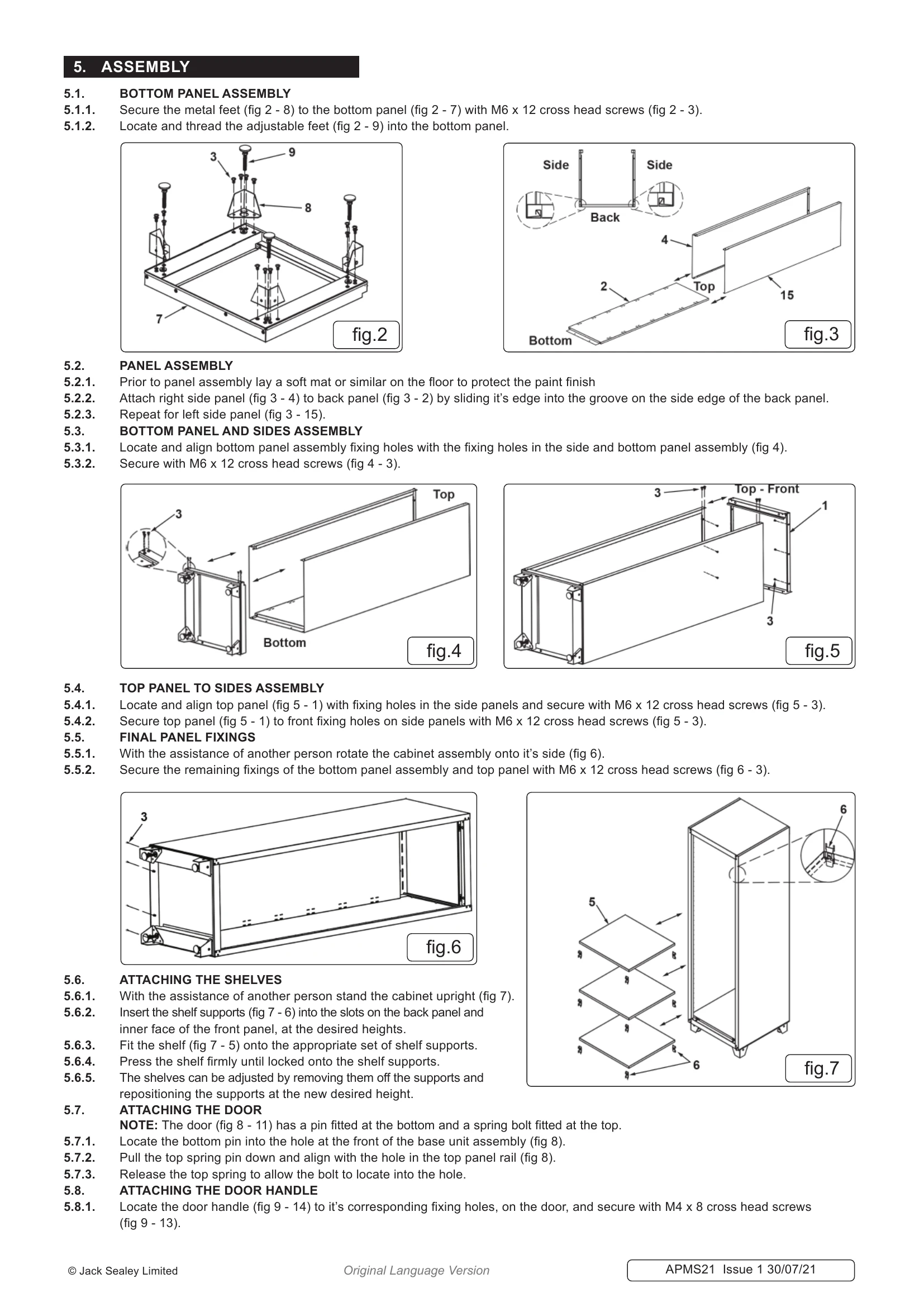

Assembly Steps:
- Bottom Panel Assembly: Attach metal feet and adjustable feet to the bottom panel using provided screws.
- Panel Assembly: Connect side panels to the back panel by sliding edges into grooves.
- Bottom Panel & Sides Assembly: Align and secure the bottom panel assembly to the side panels using screws.
- Top Panel Assembly: Align and secure the top panel to the side panels using screws.
- Final Panel Fixings: With assistance, rotate the cabinet and secure remaining fixings for the top and bottom panels.
- Attaching Shelves: Stand the cabinet upright, insert shelf supports at desired heights, and place shelves onto supports, ensuring they lock into place.
- Attaching Door: Align the bottom pin of the door with the hole on the base and pull the top spring pin down to align with the top panel rail, then release to secure.
- Attaching Door Handle: Secure the door handle to the door using M4 screws.
- Attaching Skirting Board: Level the cabinet using adjusting feet, then attach the skirting board using M6 screws.
- Ensure work area is clean, well-lit, and uncluttered.
- Use on level, solid ground.
- Keep children and unauthorized persons away.
- Be aware of sharp edges during assembly.
- Do not use outdoors, in damp locations, or with solvents.
- Do not move when loaded.
- Do not step on shelves or overload the system.
