Installation Guide for GSC110385.V2
Uploaded: Nov. 21, 2025, 7:09 p.m.
Manual Publish Date: 2016-10-24
Warranty Information
Guarantee is 12 months from purchase date, proof of which will be required for any claim.

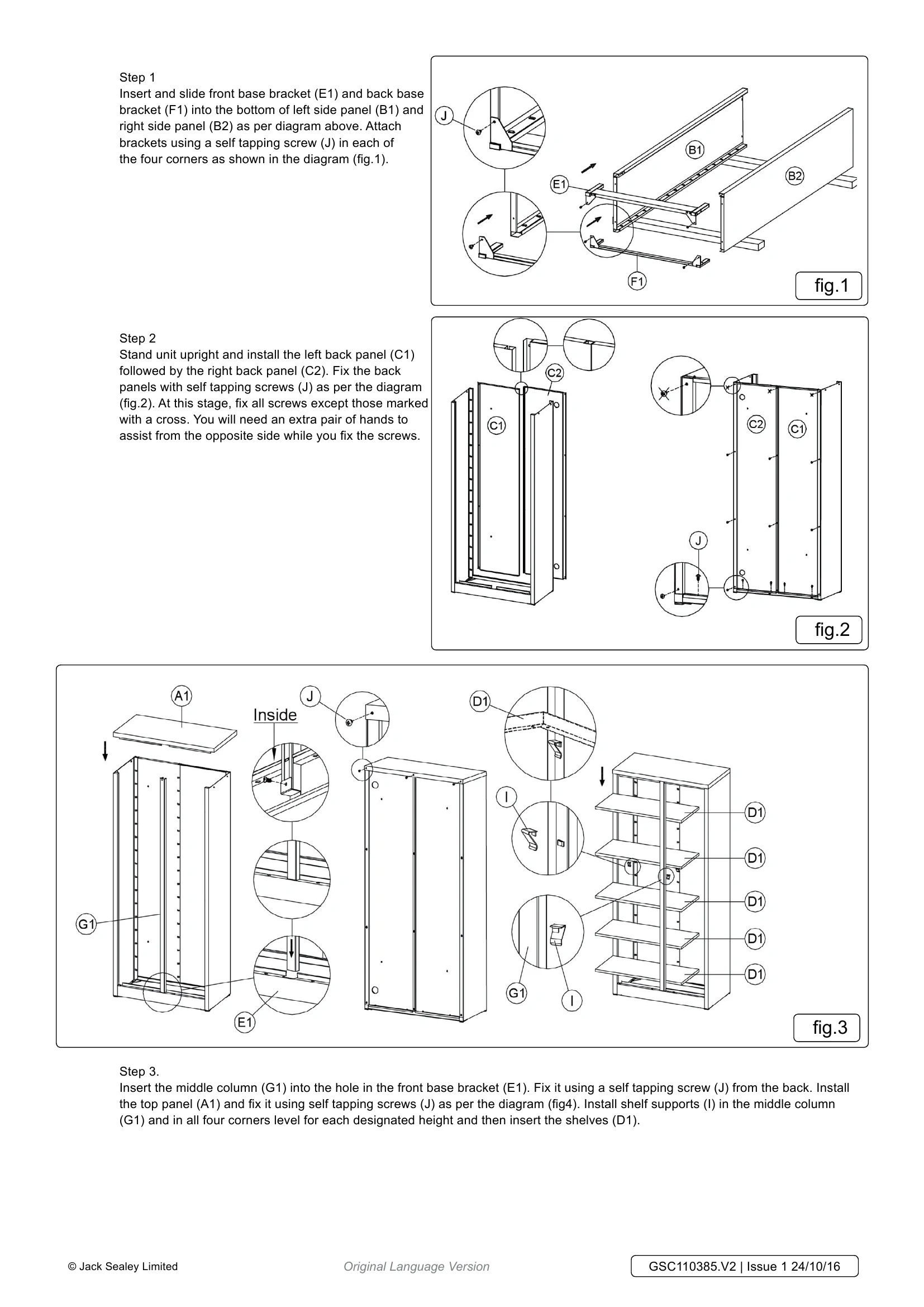

Assembly Instructions for SEALEY GSC110385.V2 Galvanized Steel Floor Cabinet
Step 1: Attach front and back base brackets (E1, F1) to the bottom of side panels (B1, B2) using self-tapping screws (J).
Step 2: Stand the unit upright. Install back panels (C1, C2) using self-tapping screws (J), leaving some screws unfixed initially. Assistance from a second person is recommended.
Step 3: Insert the middle column (G1) into the front base bracket (E1) and secure with a screw (J) from the back. Attach the top panel (A1) with screws (J). Install shelf supports (I) at desired levels and place shelves (D1).
Step 4: Install doors (R1, L1) using hinge pins (K). Adjust door spacing with washers (M) if needed. Insert wiring grommets (N) into the back panel.
