Brand: SEALEY
Category: Workshop Furniture
Document Type: Manual
Language: EN

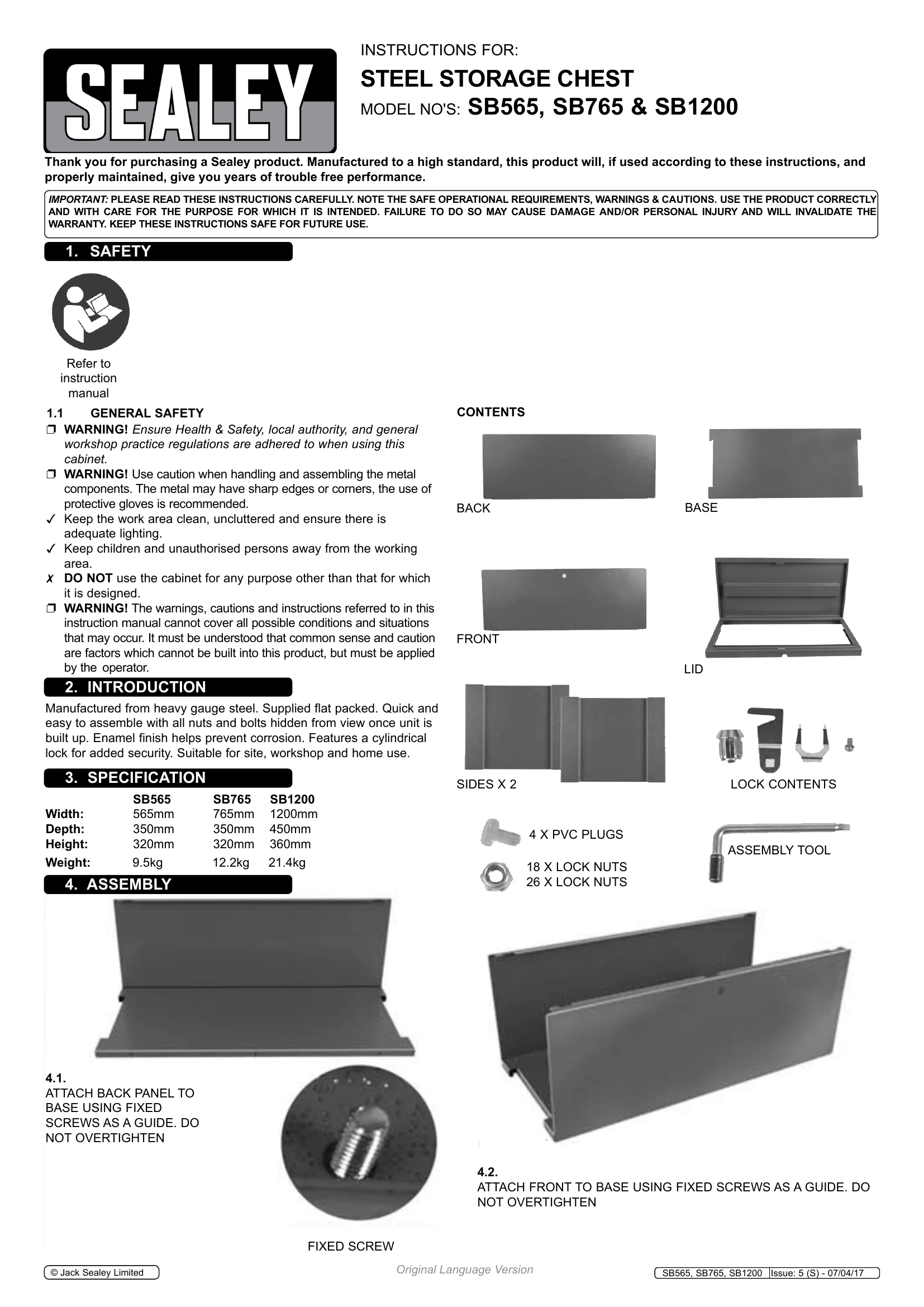

Manual for SB565, SB765 & SB1200
Uploaded: Nov. 21, 2025, 6:39 p.m.
Manual Publish Date: 2017-04-07
Warranty Information
Guarantee is 12 months from purchase date, proof of which will be required.
1. SAFETY
1.1 Refer to instruction manual
1.2 GENERAL SAFETY
- Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to.
- Use caution when handling and assembling metal components; sharp edges may be present. Use protective gloves.
- Keep the work area clean, uncluttered, and adequately lit.
- Keep children and unauthorised persons away.
- DO NOT use the cabinet for any purpose other than intended.
- Common sense and caution must be applied by the operator.
2. INTRODUCTION
- Manufactured from heavy gauge steel, supplied flat packed.
- Quick and easy assembly with hidden nuts and bolts.
- Enamel finish prevents corrosion.
- Features a cylindrical lock for security.
- Suitable for site, workshop, and home use.
4. ASSEMBLY
4.1. Attach Back Panel to Base.
4.2. Attach Front to Base.
4.3. Attach Both Sides.
4.4. Attach Lid.
4.5. Insert PVC Plugs into corner holes.
4.6. Lock Assembly: Disassemble lock, insert into hole, attach retention clip, screw latch onto lock barrel.
