Warranty Information

Guarantee is 12 months from purchase date, proof of which is required for any claim.

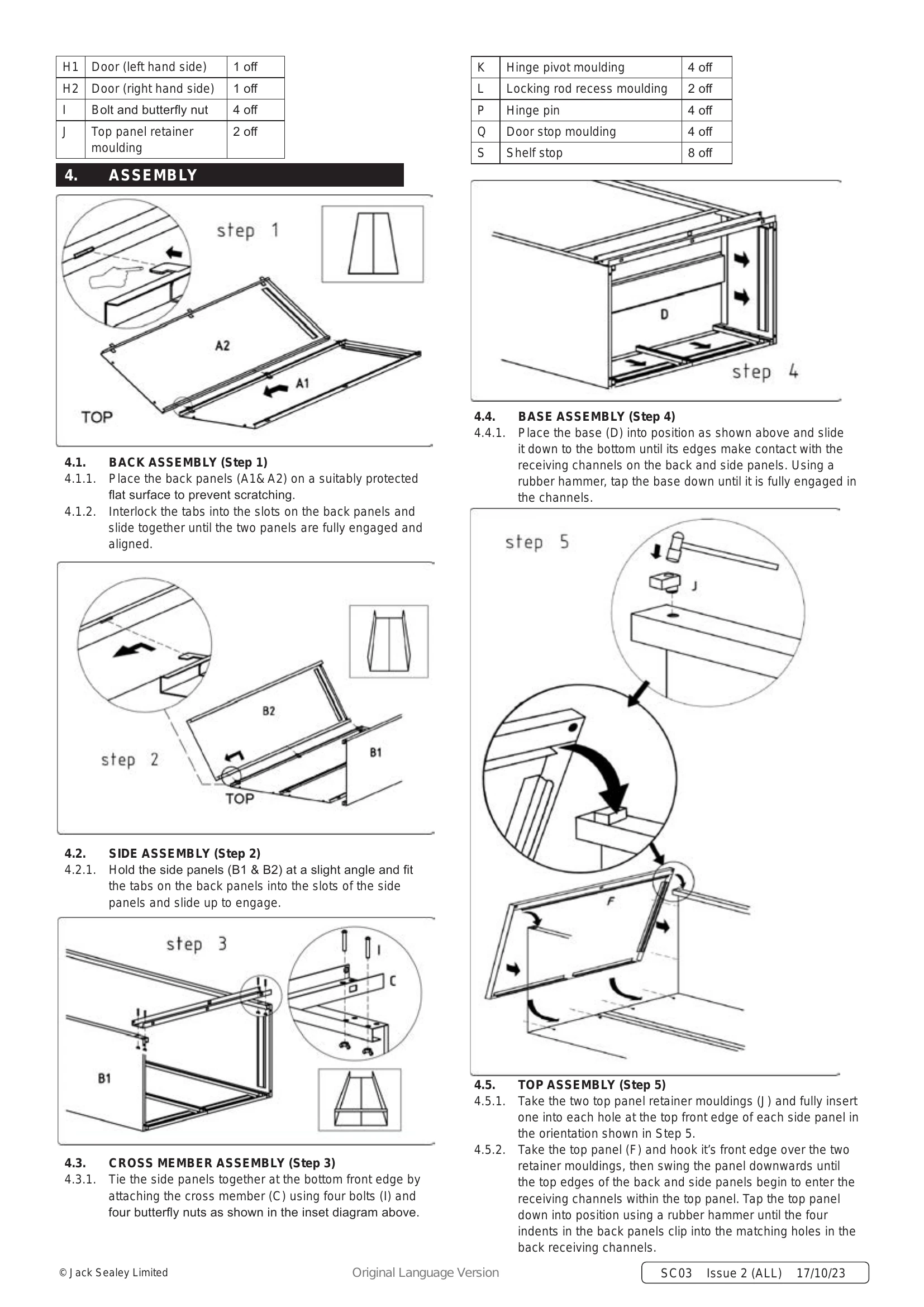

Assembly Instructions

  1. Back Assembly: Interlock back panels A1 and A2.
  2. Side Assembly: Fit side panels B1 and B2 to the back panels.
  3. Cross Member Assembly: Attach cross member C to the bottom front edge using bolts (I) and butterfly nuts.
  4. Base Assembly: Slide base D into the channels of the back and side panels and tap into place.
  5. Top Assembly: Insert top panel retainer mouldings J, then hook and secure top panel F.
  6. Base Outer Fascia Assembly: Fit fascia E over cross member C, then insert hinge pivot mouldings K and locking rod recess mouldings L.
  7. Shelf Assembly: Insert shelf stops S at desired height and place shelves G.
  8. Doors Assembly: Mount doors H1 and H2 using hinge pins P and secure with metal tabs. Fit rubber door stops Q.

General Safety

  • Adhere to Health & Safety regulations.
  • Use caution with sharp metal edges; wear protective gloves.
  • Locate and secure the cabinet to a wall.
  • Keep the work area clean and tidy.
  • Keep children and unauthorized persons away.
  • Do not climb or stand on shelves.
  • Use only for intended purpose.
  • Do not use in damp areas.
