Brand: SEARS
Category: Vacuum Cleaner
Document Type: Manual
Language: EN

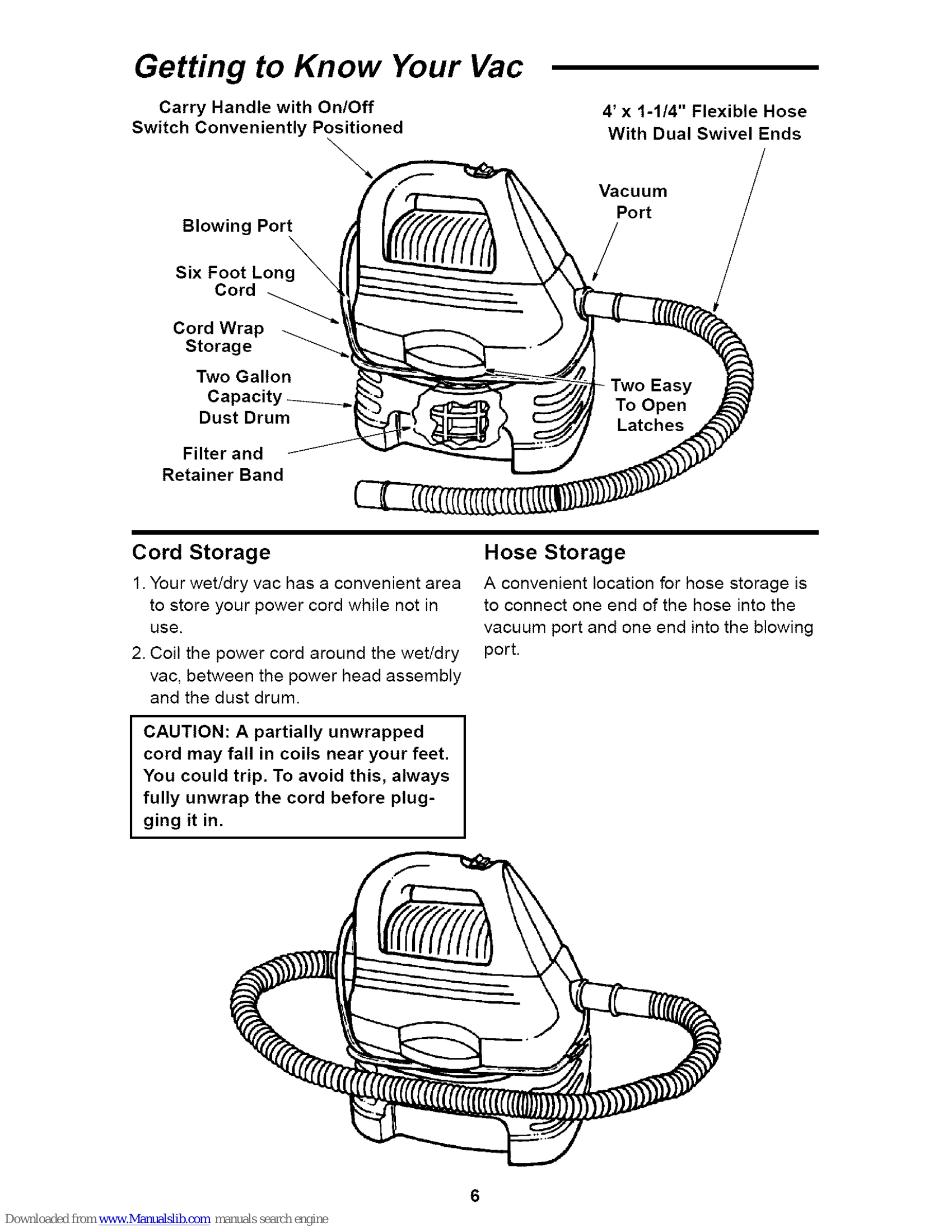

Manual for 113.177110
Uploaded: Nov. 21, 2025, 7:21 p.m.
Warranty Information
One year warranty on Craftsman Wet/Dry Vac for defects in material or workmanship; 90 days for commercial/rental use.
- Dry Vacuuming: Ensure the filter is correctly positioned to prevent leaks and damage. For fine dust, empty and clean/replace the filter frequently. A dry filter is essential for dry material pickup.
- Wet Vacuuming: Remove the filter. The float mechanism will automatically shut off airflow when the liquid reaches a predetermined level. Turn off, unplug, and empty the dust drum. Do not run the motor with the float in the raised position.
- Blowing: Insert the hose into the blowing port. Turn the unit ON. Always wear safety goggles, and a dust mask if needed.
Troubleshooting and error codes
| Problem | Cause | Remedy |
|---|---|---|
| Vac will not pick up dirt | 1. Clogged filter | 1. Clean or replace filter (follow instructions on page 10) |
| Vac will not pick up dirt | 2. Clogged hose | 2. Remove hose and clear debris. |
| Vac will not pick up dirt | 3. Air leak | 3. Make sure power head is securely attached to dust drum. |
| Vac will not run | 1. No electricity | 1. Make sure electrical outlet has voltage. (A qualified electrician may need to be contacted.) |
