Brand: SEARS
Category: Vacuum Cleaner
Document Type: Manual
Language: EN

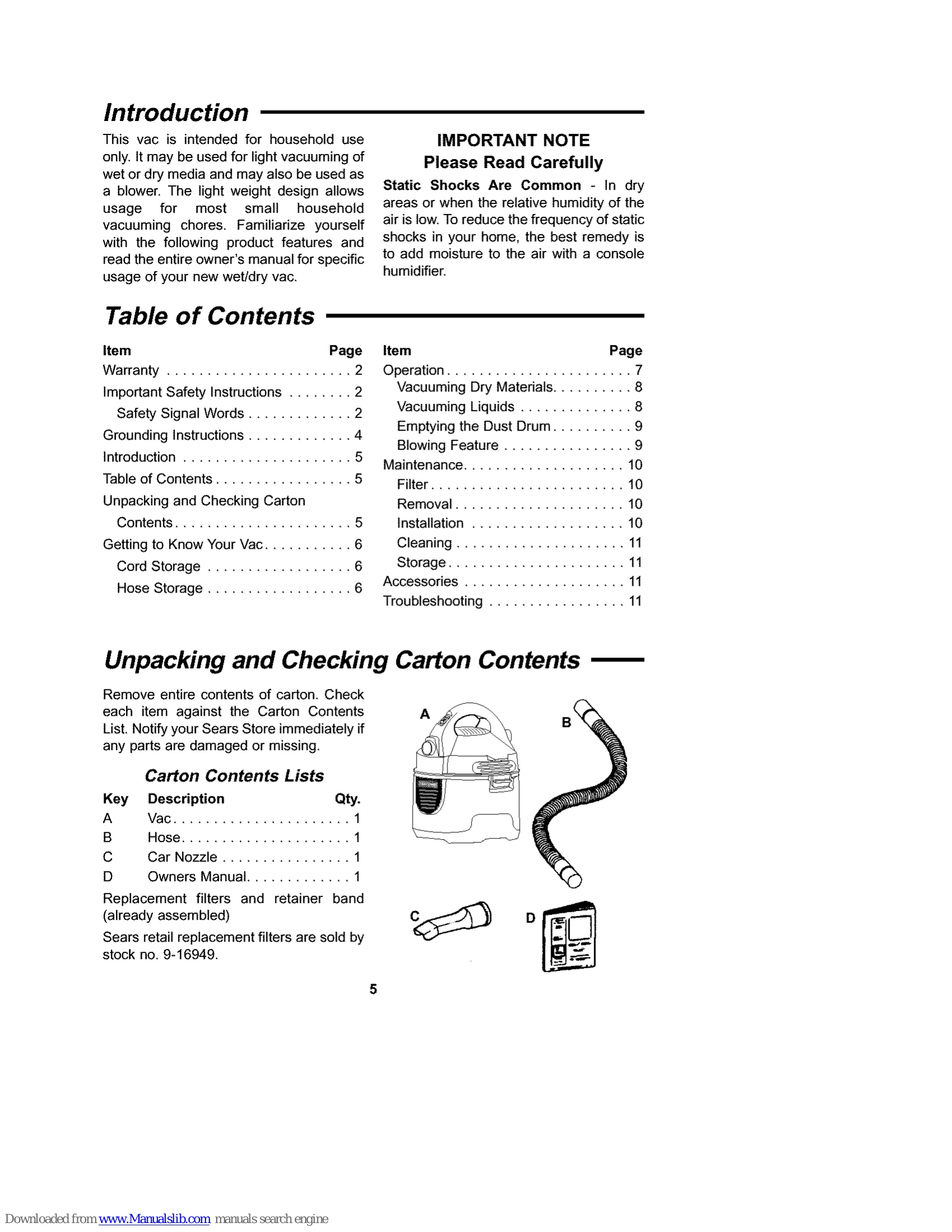

Manual for 113.177135
Uploaded: Sept. 12, 2025, 4:16 a.m.
Warranty Information
A one-year limited warranty on material or workmanship from the date of purchase, with a 90-day warranty for commercial or rental use.
This Craftsman two-gallon wet/dry vac is designed for household use and can handle both wet and dry materials, as well as function as a blower. To operate, plug the power cord into a receptacle and push the switch from 'O' (OFF) to 'I' (ON). For dry vacuuming, ensure the filter is properly installed and clean. For wet vacuuming, remove the filter; the unit has a float mechanism to shut off airflow when the liquid reaches a certain level. To use the blower feature, attach the hose to the blowing port. Always follow safety instructions, wear appropriate safety gear, and unplug the unit before performing maintenance or emptying the drum.
Troubleshooting and error codes
| Problem | Cause | Remedy |
|---|---|---|
| Vac will not pick up dirt | 1. Clogged filter | 1. Clean or replace filter (follow instructions on page 10) |
| 2. Clogged hose | 2. Remove hose and clear debris. | |
| 3. Air leak | 3. Make sure power head is securely attached to dust drum. | |
| Vac will not run | 1. No electricity | 1. Make sure electrical outlet has voltage. (A qualified electrician may need to be contacted). |
