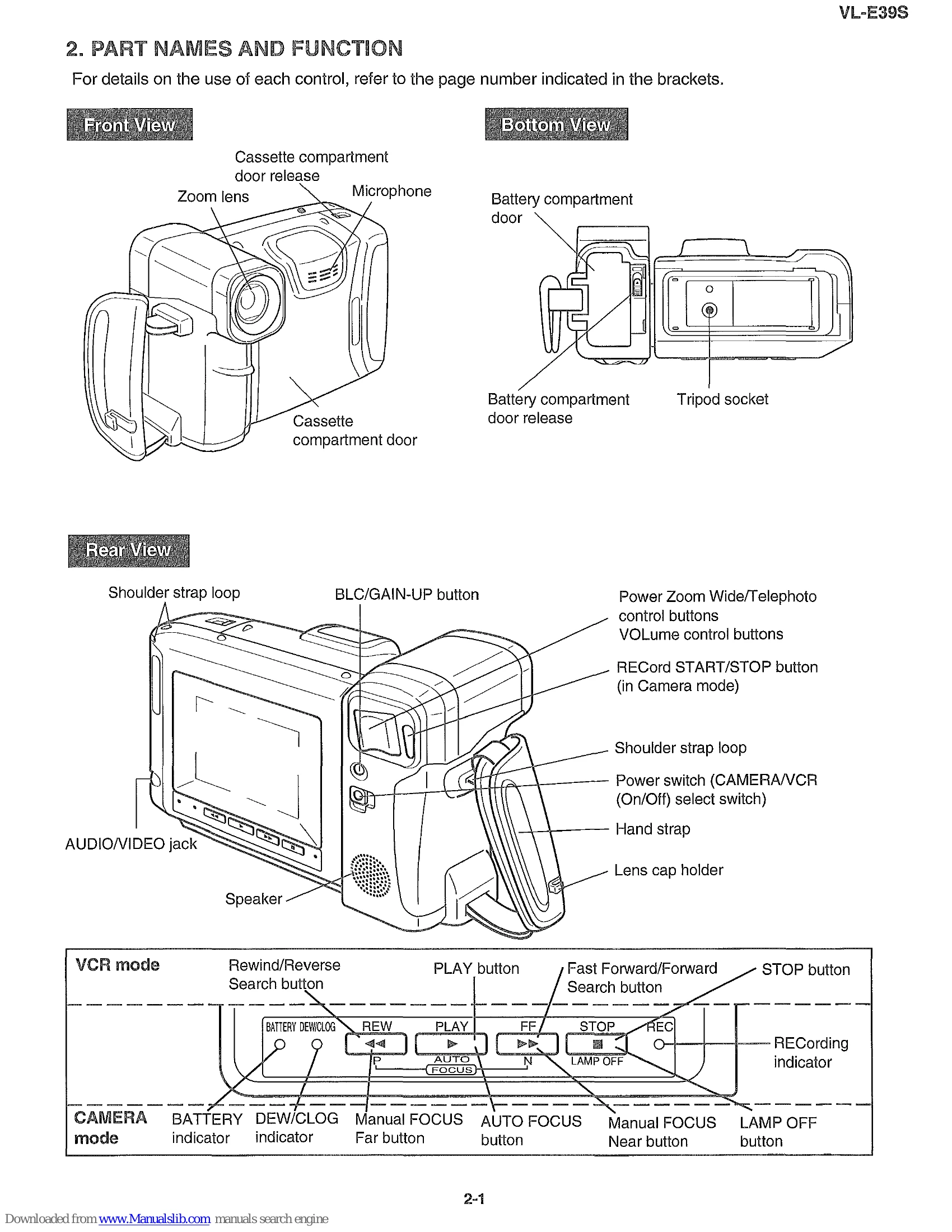

Parts/Service for VL-E39S
Uploaded: Nov. 21, 2025, 7:42 p.m.
Warranty Information
Specifications are subject to change without notice.
Specifications
Signal System: PAL standard
Recording System: 2 rotary heads, helical scanning system
Cassette: 8 mm video tape, MP type
Recording/Playback Time: 120 minutes (P5-120)
Tape Speed: 20.051 mm/second
Pickup Device: 1/4" CCD image sensor (approx. 320,000 pixels)
Lens: 12x power zoom lens (F1.8, f=4.2-50.4 mm) with auto focus
Monitor: 3" full-colour LCD screen
Minimum Illumination: 3 lux* (with gain-up)
Power Requirement: DC 3.6V
Power Consumption: 5.6W (camera recording)
Dimensions: 188 mm (W) × 122 mm (H) × 92 mm (D)
Weight: 740 g (approx., without accessories)
AC Adaptor/Battery Charger (UADP-0206TAZZ)
Power Requirement: AC 110-240 V, 50/60 Hz
DC Output: 4.5 V
Power Consumption: 27 W
Dimensions: 75 mm (W) × 51 mm (H) × 135 mm (D)
Weight: 360 g (approx.)
Troubleshooting and error codes
| Adapter Mode | Charging Mode | Refresh Mode | |||
| Problem | Solution | Problem | Solution | Problem | Solution |
| Power lamp fails to light up. | Check the fuse F1. | Charge lamp fails to light up. | Repair the adapter mode. | Charge lamp does not blink. | Repair the adapter mode. |
| D9 is defective. | Repair the adapter mode. | Repair the charge mode. | |||
| Q1 and IC4 are defective. | No charge. | No discharge. | Is IC3 defective? | ||
| IC4 is defective. | IC3 is defective. | ||||
| IC2 is defective. | Is SW1 operating? | SW1 is defective. | |||
| IC3 is defective. | Is the pin 22 of IC3 more than 1.7V? YES: Q4 and R44, R46, R47 are defective. NO: D14, D21, R41 are defective. | ||||
| PC1, IC4, and CN2 are defective. | |||||
| Is there output to the battery terminal? | YES: D17 is defective. | ||||
| NO: D11 and Q2 are defective. | |||||
