Parts/Service for VL-E630U/T

Name: Parts/Service for VL-E630U/T
Brand: SHARP
Availability: InStock

Brand: SHARP

Category: Camcorders

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 7:59 p.m.

Manual Publish Date: 1998-12-01

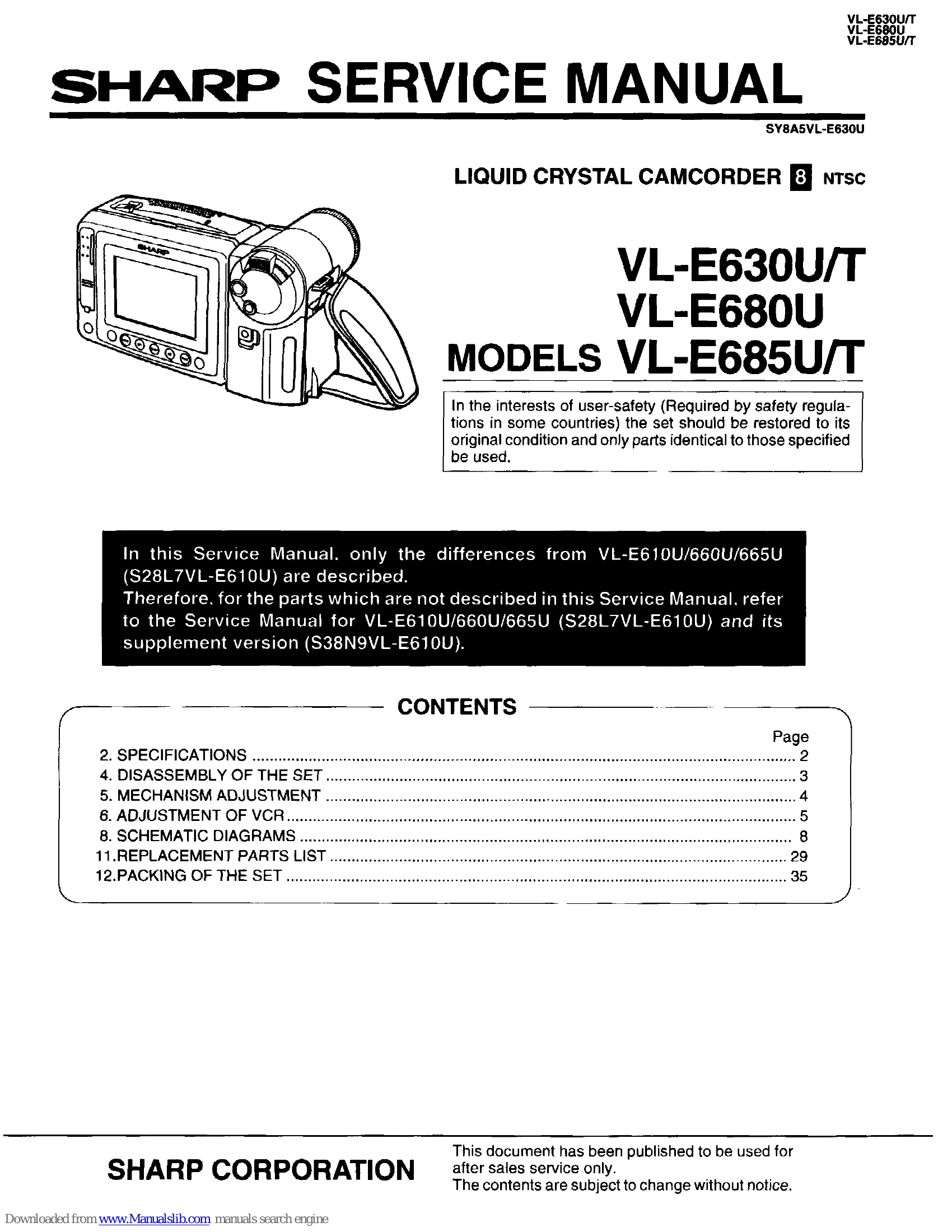

The manual provides detailed specifications for the VL-E630U/T, VL-E680U, and VL-E685U/T camcorder models, including recording system, cassette type, recording/playback time, tape speed, pickup device, lens, monitor, microphone, and output levels. It also details the specifications for the AC adapter/battery charger (UADP-0274TAZZ/UADP-0275TAZZ) and the battery pack (BT-H22). The manual outlines the disassembly procedures for the VCR main body and CCD sensor replacement, along with initial settings for EPROM IC. It covers mechanism adjustment, VCR adjustment (Y/C circuit, LCD display circuit), camera section adjustment (sync level, auto white balance), and includes schematic diagrams for various circuits like power, audio, motor driver, LCD display, Y/C, system control, and D/A conversion. A comprehensive parts list and packing instructions are also provided.

Troubleshooting and error codes

Possible symptom encountered	Remarks
• Lateral noise • Unclean head • Screen shaking	Rollers • If abnormal rotation or deflection (signifi- cant) is found, replace the roller. Other than rollers • Clean the tape con- tacting areas. Be sure to use the specified cleaning agent.
• Improper S/N ratio • No color appears.	• Replace if failure is found.
• Tape does not run. • Tape slackens. • Screen shakes.	• Replace if failure is found.
• Abnormal sound	• Apply oil. (Oil:) Note: After oil is applied to the drive gear shaft, slightly wipe it off with swab.
• Not ejectable • The specific mode can- not be set.	• Replace if failure (ab- normal sound) is de- tected.
• If conformance to the standard is not en- sured, replace part.
