FEATURES
1. Hi 8 RECORDING/PLAYBACK SYSTEM 2. FREE-ANGLE SHOOTING AND INSTANT REPLAY WITH 10.2 cm COLOUR LCD MONITOR AND BUILT-IN SPEAKER 3. EASY TV/VCR CONNECTION AND CONTINUOUS CHARGING WITH VIEWCAMPORT UNIT 4. 16x DIGITAL ZOOM (OPTICAL 8x POWER ZOOM) 5. DIGITAL 2x QUICK ZOOM (2x EXTEND ZOOM) 6. DIGITAL IMAGE STABILIZATION 7. DIGITAL STILL/STROBE/SNAP RECORDING 8. Hi-Fi STEREO SOUND 9. NEURO AUTO EXPOSURE 10. DIGITAL AUTO WHITE BALANCE 11. DIGITAL FULL RANGE AUTO FOCUS 12. INFRARED REMOTE CONTROL 13. 16:9 WIDE SCREEN 14. PROGRAM SEARCH/QUICK RETURN 15. BACKLIGHT COMPENSATION 16. 1/10000, 1/4000, 1/1000, 1/250, 1/120, AND STANDARD 1/50-SECOND SWITCHABLE HIGH-SPEED ELECTRONIC SHUTTER FOR BLUR-FREE STILL IMAGES 17. FADE IN AND FADE OUT 18. FLYING ERASE HEAD FOR EDITING 19. EDIT SEARCH 20. WARNING INDICATORS - LOW BATTERY, LOW LIGHT, TAPE END, ETC. 21. 3-WAY POWER SOURCE: AC, RECHARGEABLE BATTERY AND CAR BATTERY (WITH OPTIONAL VR-410CH or VR-410CA)PREPARATION

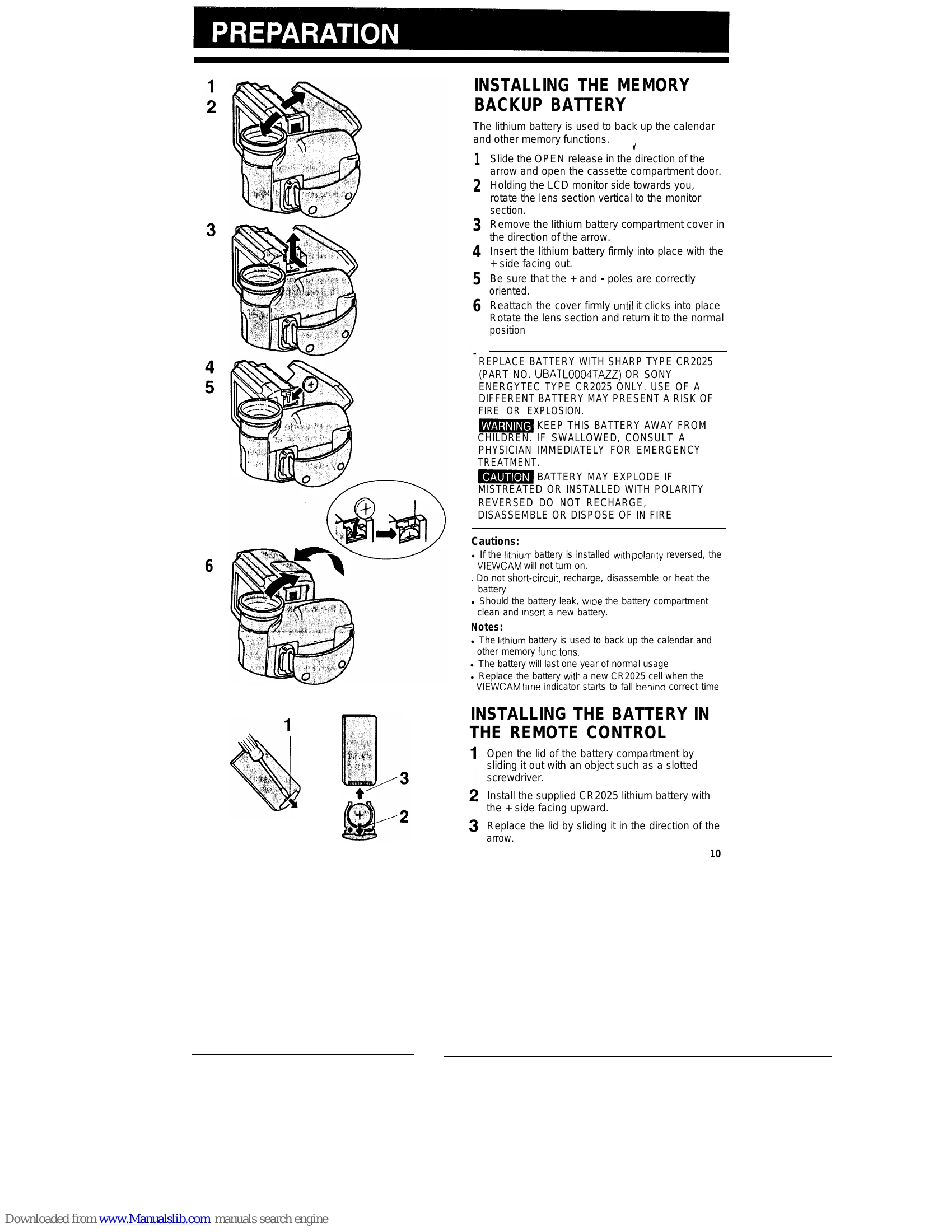

1. INSTALLING THE MEMORY BACKUP BATTERY 2. INSTALLING THE BATTERY IN THE REMOTE CONTROL 3. USING THE AC ADAPTOR/BATTERY CHARGER 4. CHARGING ON THE VIEWCAMPORT UNIT 5. CHARGING TWO BATTERY PACKS SUCCESSFULLY 6. REMOVING THE VIEWCAM FROM THE VIEWCAMPORT UNIT 7. INSERTING AND REMOVING THE BATTERY PACK 8. INSERTING AND REMOVING A CASSETTE 9. SETTING THE DATE AND TIME 10. WORLD CLOCK 11. PICTURE/VOLUME/BACKLIGHT ADJUSTMENTS 12. ATTACHING THE SHOULDER STRAP 13. USING THE HAND STRAPCAMERA RECORDING
1. EASY CAMERA RECORDING WITH FULL AUTO ZOOMING 2. DIGITAL 2x QUICK ZOOM (EXTEND ZOOM) 3. AUTO/MANUAL FOCUS 4. QUICK RETURN 5. EDIT SEARCH 6. TIPS ON RECORDING POSITIONS 7. HINTS FOR BETTER SHOOTING 8. RECORDING THE DATE AND TIME 9. REMAINING TAPE AND BATTERY 10. TURNING OFF THE LCD MONITOR BACKLIGHT 11. HIGH-SPEED SHUTTER 12. MACRO SHOTS 13. FADE IN & FADE OUT 14. WIDE SCREEN 15. LIGHTINGCONNECTIONS FOR PLAYBACK ON A TV
1. USING THE VIEWCAMPORT UNIT 2. CONNECTION TO TV VIA VCR 3. AUTOMATIC SWITCHING OF THE AUDIO/VIDEO JACK'S INPUT/OUTPUT MODE 4. USING THE AV PACK (OPTIONAL ACCESSORY) 5. MONITOR IN JACK 6. CONNECTION TO TV WITHOUT AUDIO/VIDEO JACKSEDITING
1. EDITING 2. CUTTING UNWANTED SEQUENCES 3. TO STOP EDITING 4. RECORDING FROM AN EXTERNAL SOURCE 5. TO RECORD FROM AN EXTERNAL SOURCE 6. TO STOP RECORDINGTroubleshooting and error codes
| SYMPTOM | POSSIBLE CAUSE | SUGGESTED SOLUTION | |
|---|---|---|---|
| Power | No power | Safety devices are functioning. | Disconnect the AC adaptor cord; then, plug it into the wall outlet again. (p. 11) |
| The battery pack is not charged. | Charge the battery pack sufficiently. (p. 11) | ||
| The power source is not correctly connected. | Connect the power source correctly. (pp. 13, 14) | ||
| Depleted battery pack. | Use a fully charged battery pack. (p. 11) | ||
| Recording | Power goes off soon after coming on. | Dew in VIEWCAM | Wait until dew dries. (p. 2) |
| VIEWCAM is in VCR mode. | Slide the Operate switch to CAMERA. (p. 22) | ||
| Power on but no image on the monitor. | Erasure protection hole is covered. | Slide the red projection to open the hole. (p. 5) | |
| TV not properly adjusted. | Adjust the TV. (See TV operation manual.) | ||
| White balance is set improperly. | Reset the white balance or set the VIEWCAM to Full Auto mode. (p. 22, 41) | ||
| Poor colour | Poor lighting. | Apply additional lighting or correct temperature of lighting. (p. 45) | |
| Fuzzy picture | Dust or other foreign matter on lens. | Clean the lens. | |
| Not properly focused. | Adjust the focus or set the VIEWCAM to Full Auto mode. (p. 22) | ||
| Monitor picture is too dark. | High-speed shutter is set to high speed mode. | Set the VIEWCAM to Full Auto mode. (p. 22) | |
| Monitor picture not easy to see. | Inappropriate picture adjustments | Adjust the picture. (p. 20) | |
| No image appears. | Improperly connected to TV. | Reconnect properly. (p. 46) | |
| TV's channel or TV/VIDEO switch is not properly set. | Tune TV to RF converter's output channel (VHF channel 0 or 1). (p. 48) | ||
| Set TV's TV/VIDEO switch to the VIDEO position if the AV input is used. (p. 46) | |||
| Playback | Poor colour | White balance not properly adjusted during recording. | Make sure the white balance is properly adjusted during recording. (p. 41) |
| Dirty video heads | Call for service. | ||
| Video noise in image | Worn video heads | Call for service. | |
| Old or worn tape | Use a new video cassette. (p. 5) | ||
| The infrared remote control does not function. | The lithium battery has run down. | Replace the lithium battery with a new one. (p. 10) | |
| The remote control is being used beyond its operating range. | Use the remote control within its operating range. (p. 36) | ||
| Intense daylight is falling on the VIEWCAM's photoreceptor. | Avoid letting intense daylight fall on the VIEWCAM's photoreceptor. (p. 36) | ||
| There is an obstacle between the remote control and the VIEWCAM's photoreceptor. | Remove the obstacle or use the remote control from a different angle. (p. 36) | ||
| Cassette cannot be inserted. | Cassette is not right side up or is backwards. | Check cassette positioning and reinsert. (p. 15) | |
| Another cassette is in the unit. | Press the EJECT button and remove. (p. 15) | ||
| VIEWCAM is in Camera Recording mode. | Press REC START/STOP button to stop recording and try again. (p. 22) | ||
| Cassette won't eject. | Tape is already completely wound. | Rewind to desired point. (p. 31) | |
| No tape movement in Fast Forward mode. | Tape is already completely rewound. | Fast forward to desired point. (p. 31) | |
| No tape movement in Rewind mode. |
