Parts/Service for AX-1500J(S)
Uploaded: Nov. 21, 2025, 8 p.m.
Warranty Information
None
This manual provides detailed service information for the SHARP SUPER STEAM OVEN MODEL AX-1500J(S). It covers:

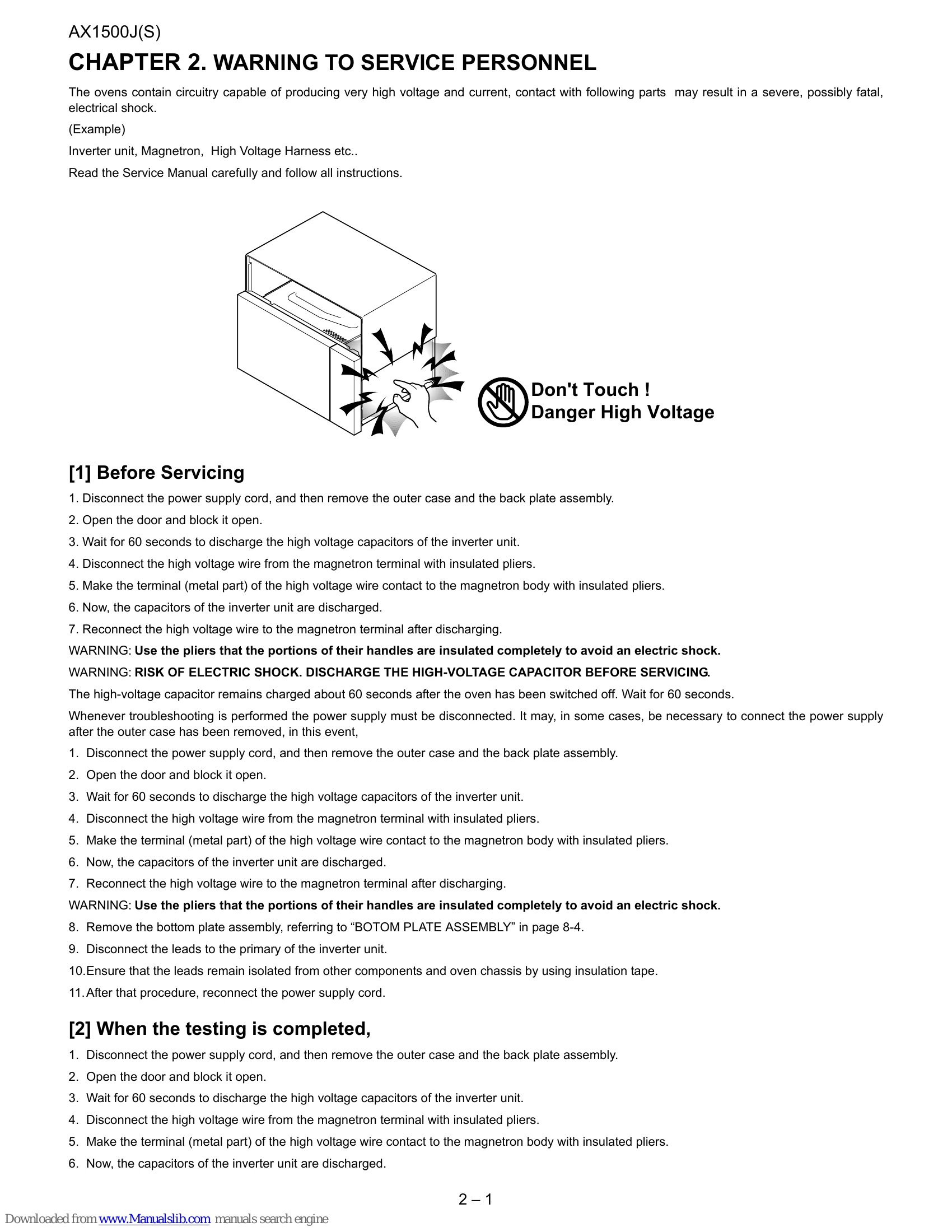

- Before Servicing: Safety precautions, microwave radiation, and general warnings.
- Product Description: Specifications and component illustrations.
- Operation: Water supply/drainage schematics and electric part operation in different heating modes.
- Test Procedures: Magnetron test, interlock switch tests, monitor switch, fuse tests, temperature checks, and error code analysis.
- Component Replacement: Procedures for replacing various parts.
- Troubleshooting: Error lists, malfunction checks, and circuit diagrams.
- Parts List: Detailed listing and diagrams of all replaceable parts.
The manual emphasizes safety precautions when working with high voltage and microwave components.
Troubleshooting and error codes
| Display | Detail of error | Error condition | Application mode | Check method | Check timing from heating start | Note |
|---|---|---|---|---|---|---|
| Wait. Oven is too warm to use. | Oven temperature is high. | Oven temperature is too high. | Proof defrost | Oven thermister | After 1 sec. | When oven temperature is turned under 90C error is released. |
| Replace drip tray. | Drip tray isn't set. | Drip tray isn't set. | Steam mode super steam convection | Dew tray switch water level sensor | Always | Immediately |
| Empty drip tray and replace. | Water in the drip tray is not removed. | Drip tray is not removed on repeatedly operation of application mode. | Steam mode super steam convection | Dew tray switch | Immediately | |
| Remove water tank. | Water exist in the water tank. | Water exist in the water tank at drain mode. | Drain mode | Water level sensor | After 1sec | |
| Water is frozen. Please refer to instructions in operation manual. | Water tank is frozen. | Engine heater temperature is too low. | Steam mode super steam convection | Oven thermister water level sensor | Immediately | |
| Fill water tank with water. | Shortage of water. | Water in the water tank isn't enough. | Steam mode super steam convection | Water level sensor | Auto mode: after 30 sec. Manual mode: within 7 sec. | |
| SENSOR ERROR Finish cooking by time. Press CLEAR. | AH sensor sequence error | Sensor stop error caused by open door. Sensor stop error caused by pressing Clear key. Sensor does not detect vapor or sensor circuit error. | microwave mode (AH sensor menu) | AH sensor door switch | Always | |
| EE01 Please refer to instructions in operation manual. | Oven thermister error | Oven thermister is short or open. | always | Immediately and always | ||
| EE02 Please refer to instructions in operation manual. | AH sensor error | AH sensor is short or open. | microwave mode (AH sensor menu) | After 32 sec. | ||
| EE05 Please refer to instructions in operation manual. | Engine heater error | Engine heater temperature is too high. | Steam mode Super steam convection | Always | When engine heater operate more than 30sec. | |
| EE12 Please refer to instructions in operation manual. | Engine thermistor error | Engine thermistor is open. | Steam mode Super steam convection | 30sec. | ||
| EE14 Please refer to instructions in operation manual. (reset) | EEPROM error (EEPROM data verification error) Something is burring in the oven. | EERROM Read data is not same as EEPROM write data. Oven thermister change level is abnormal. | micro mode | PWB short check program | After 5 min. | short check program |
