Brand: SHARP
Category: Home Appliances
Document Type: Manual
Language: EN

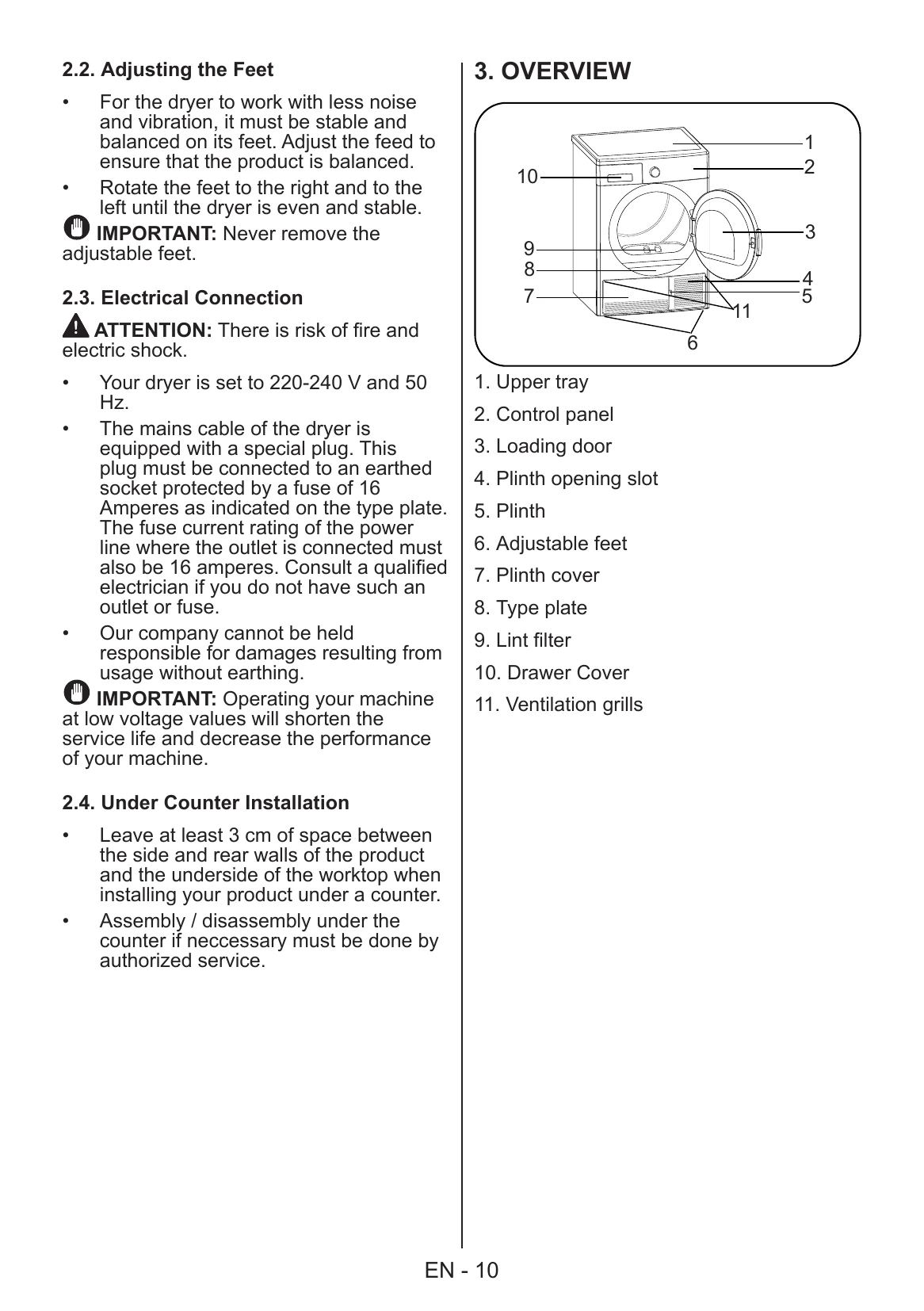

Manual for KD-NCB8S7PW9-EN
Uploaded: Nov. 21, 2025, 7:24 p.m.
Warranty Information
The manufacturer cannot be held responsible for damages resulting from un-authorised repairs.
Using the Tumble Dryer
1. Prepare the laundry by sorting and ensuring items are suitable for drying (check labels). Remove all objects from pockets and secure fasteners.
2. Select the desired drying programme using the Programme Selection Knob.
3. Utilize auxiliary functions like Anti-Crease or Delay Start if needed.
4. Press the Start/Pause button to begin the drying cycle.
5. Upon completion, remove laundry promptly. Clean the lint filter and empty the water tank after each use.
Cleaning and Care
Regularly clean the lint filter, empty the water tank, clean the condenser, and wipe the humidity sensor and inner door surface.
Troubleshooting and error codes
| PROBLEM | REASON | SOLUTION |
|---|---|---|
| The drying process takes a long time. | The surface of the lint filter might be clogged. | Wash the filter with lukewarm water. |
| The condenser might be clogged. | Clean the condenser. | |
| The ventilation grills in front of the machine might be closed. | Open the doors/windows to prevent the room temperature from rising too much. | |
| There might be a layer of limescale on the humidity sensor. | Clean the humidity sensor. | |
| The dryer might be overloaded with laundry. | Do not overload the dryer. | |
| The laundry might be insufficiently spun. | Select a higher spin speed on your washing machine. | |
| The laundry that comes out hot at the end of the drying process generally feels more humid. | ||
| Laundry comes out damp at the end of the drying process. | The programme used might not be suitable for the type of laundry. | Check the care labels on the laundry items, select a suitable programme for the type of laundry and additionally, use the time programmes. |
| The surface of the lint filter might be clogged. | Wash the filter with lukewarm water. | |
| The condenser might be clogged. | Clean the condenser. | |
| The dryer might be overloaded with laundry. | Do not overload the dryer. | |
| The laundry might be insufficiently spun. | Select a higher spin speed on your washing machine. | |
| The dryer cannot be opened or the programme cannot be started. The dryer does not get activated when adjusted. | The dryer might not be plugged in. | Make sure that the plug is fitted in the socket. |
| The loading door might be open. | Make sure that the loading door is properly closed. | |
| You might not have set a programme or pressed the Start/Pause key. | Make sure that the programme has been set and the dryer is not in the Standby (Pause) mode. | |
| Child lock might be active. | Deactivate the child lock. | |
| The loading door might not be closed properly. | Make sure that the loading door is properly closed. | |
| The programme has been interrupted for no reason. | There might have been a power failure. | Press the Start/Pause key to start the programme. |
| The water tank might be full. | Empty the water tank. |
