Brand: SHARP
Category: Home Appliances
Document Type: Manual
Language: EN
Manual for KD-NHH7S7GW2-EE
Uploaded: Nov. 21, 2025, 7:46 p.m.
Warranty Information
Failure to follow safety instructions in the manual will void any warranty.

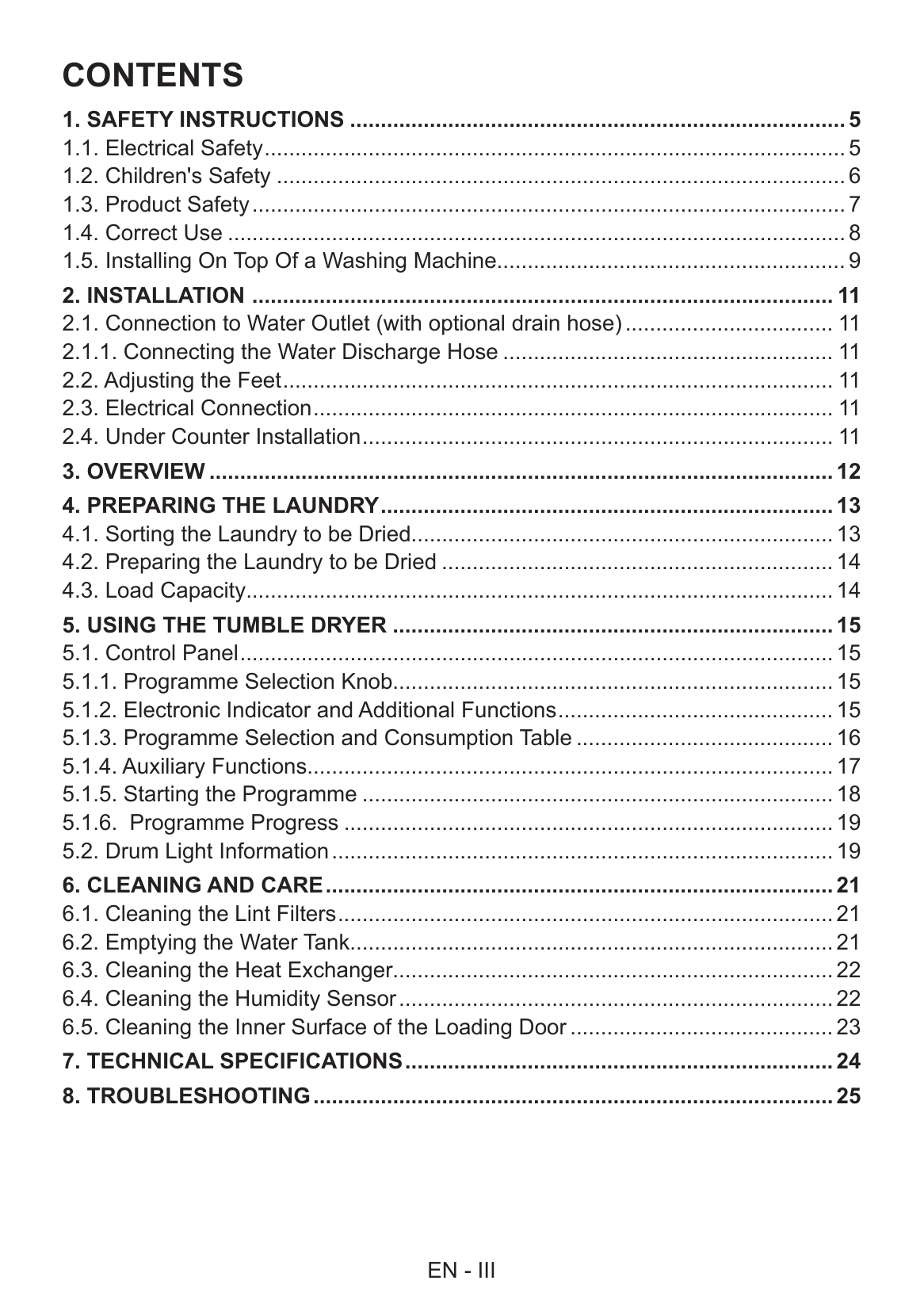

The manual provides comprehensive instructions for operating the SHARP KD-NHH7S7GW2-EE Tumble Dryer. It covers essential safety precautions, installation procedures, and detailed guidance on preparing laundry. The operation section explains the control panel, program selection, and auxiliary functions. It also includes important information on cleaning and care, technical specifications, and troubleshooting common issues. Additionally, the manual offers insights into energy labeling and saving energy, along with environmental protection and packaging disposal information.
Troubleshooting and error codes
| PROBLEM | CAUSE | SOLUTION |
|---|---|---|
| Drying process takes too long. | Lint filter may be blocked. | Wash the filter with lukewarm water. |
| Heat exchanger may be blocked. | Clean the heat exchanger. | |
| Ventilation grilles at the front of the appliance may be closed. | Open the door/window to prevent excessive room temperature increase. | |
| A layer of limescale may be deposited on the humidity sensor. | Clean the humidity sensor. | |
| Dryer is overloaded or possibly overfilled with laundry. | Do not overload the dryer. | |
| Laundry is damp or possibly not wrung out enough. | Select a higher spin speed on the washing machine. | |
| Laundry remains damp after drying. | Laundry that is removed hot from the dryer usually feels slightly damp. | (No specific solution provided, implies normal behavior) |
| Selected program may not be suitable for this type of laundry. | Check the labels on the laundry items, select a suitable program for the type of laundry and use time programs additionally. | |
| Dryer cannot be opened, or program cannot be started. Dryer is not active, is balanced and set. | Lint filter may be blocked. | Wash the filter with lukewarm water. |
| Heat exchanger may be blocked. | Clean the heat exchanger. | |
| Dryer is overloaded or possibly overfilled with laundry. | Do not overload the dryer. | |
| Laundry is damp or possibly not wrung out enough. | Select a higher spin speed on the washing machine. | |
| Dryer is not balanced and possibly not connected to the mains. | Check if the plug and socket are properly connected. | |
| The filling door may have remained slightly open. | Ensure the filling door is properly closed. | |
| Program may not have been set, or the Start/Pause button was not pressed. | Ensure the program has been selected and the dryer is not in standby or paused mode. | |
| Child lock may be activated. | Deactivate the child lock. | |
| Program interrupts without reason. | The filling door may not have been closed properly. | Ensure the filling door is properly closed. |
| There may have been a power outage. | Press the Start/Pause button to start the program. | |
| The water tank is full or possibly full. | Empty the water tank. | |
| Selected program may not be suitable for this type of laundry. | Check the labels on the items, select a suitable program for the type of laundry. | |
| Clothes have shrunk, are tangled or in poor condition. | Lint may have accumulated on the inner side of the filling door and on the sealing surfaces of the filling door. | Clean the inner side of the filling door and the sealing surfaces of the filling door. |
| Water leaks through the filling door. | The filling door may not have been closed properly. | Push the filling door until it clicks to indicate it is closed. |
| The water tank is full or possibly full. | Empty the water tank. | |
| The drain hose may be bent. | If the product is directly connected to a drain, check the drain hose. | |
| Filling door opens by itself. | Lint filter may be blocked. | Clean the filter. |
| The filter bed may be clogged with lint. | Clean the lint filter bed. | |
| A layer may have formed, creating an obstruction on the surface of the lint filter. | Wash the filter with lukewarm water. | |
| Water tank symbol lights up/flashes. | Heat exchanger may be dirty. | Clean the heat exchanger. |
| The filter seat may be clogged with fibers. | Clean the filter seat. | |
| A layer of fibers may have formed on the filter surface, causing a blockage. | Wash the filter with lukewarm water. | |
| Filter cleaning symbol lights up. | Heat exchanger may be clogged. | Clean the heat exchanger. |
| Warning symbol for heat exchanger cleaning lights up. | Filter may not be connected. | Connect the filter. |
| Warning symbol for filter and heat exchanger cleaning flashes. | Warning light for the filter flashes even if the filter is connected. | Contact the service. |
| *Program cannot be started and the filter warning light flashes. | (No specific cause listed, but implied related to filter) | Contact the service. |
