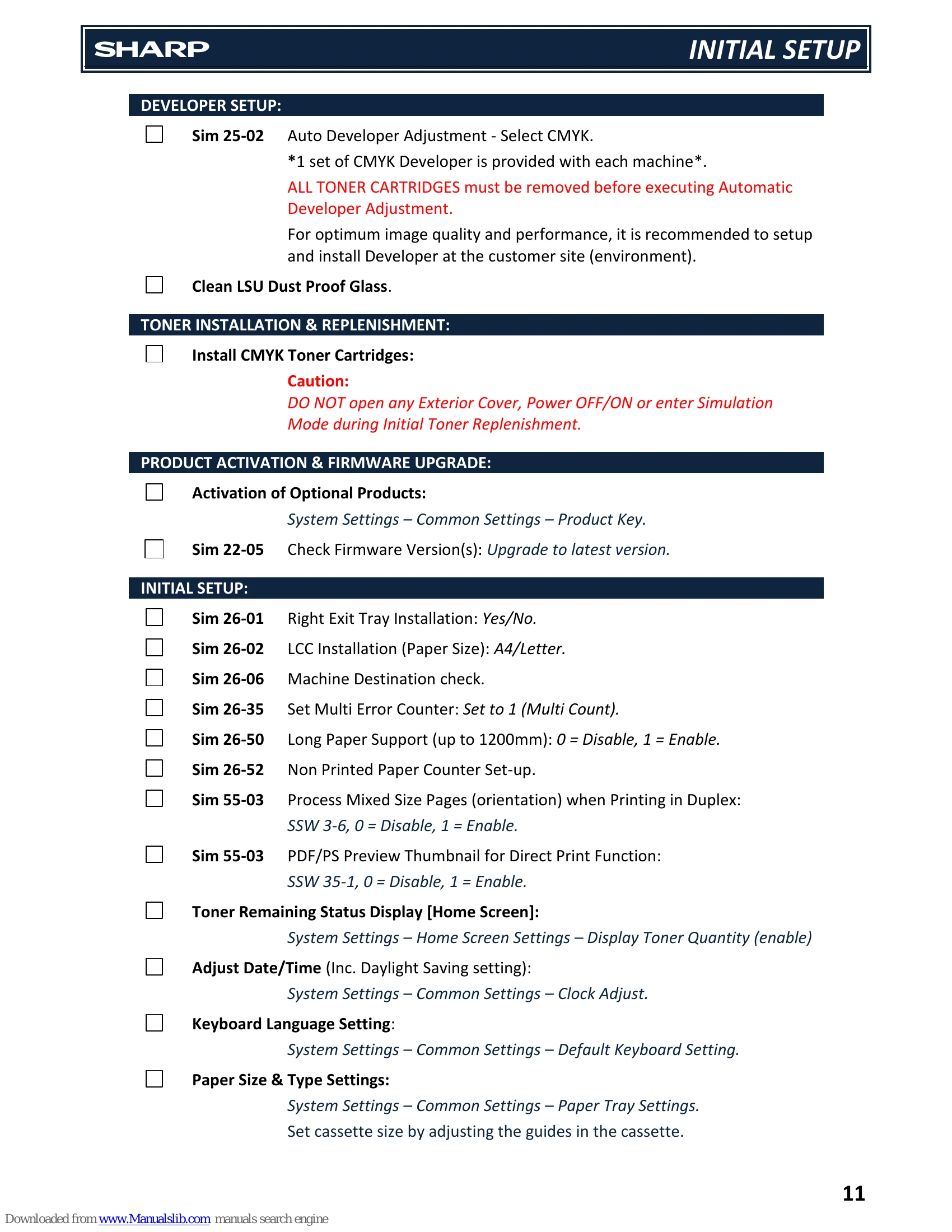

This manual provides a comprehensive technical guide for the SHARP MX-3070N, MX-3570N, and MX-4070N multifunction printers. It covers product specifications, product options, and consumables. Detailed sections include initial setup procedures, image quality adjustments, maintenance schedules, troubleshooting steps for various components like the SCN-MFP PWB and PCU PWB, and jam cause codes. The guide also references necessary tools and parts for repair and provides guidance on operating system support and document referencing.
Troubleshooting and error codes
| Report Code (Result) | Result Displayed | Communication Interruption Content | Send / Receive |
|---|---|---|---|
| 93 | NG93 XXXX *1 | When error in D-SMTP send (with recall):- • An error response of 4XX occurs during communication with the SMTP server. • Time out occurs after establishment of connection with the SMTP server. |
|
| 94 | NG94 XXXX *1 | When busy in D-SMTP send Time out occurs during establishment of connection with the SMTP server. |
|
| 95 | NG95 XXXX *1 | When the path is too long in execution of Scan To USB. | |
| 96 | NG96 XXXX *1 | When the normal process is not executed in the secure mail sending. | |
| 98 | NG98 XXXX *1 | The copy inhibit pattern is detected when scanning a document. | |
| 99 | NG99 XXXX *1 | A document which is inhibited to be copied such as a banknote is scanned. | |
| Report Code 2 | Send / Receive | ||
| 60 | In resend of document filed data, an error occurs in decoding or coding. | Resend | |
| 61 | In resend of document filed data, setting to inhibit resolution conversion is made. (The resolution after resend is set to be Enlarged.) | Resend | |
| 62 | In resend of document filed data, rotation setting is made for data which cannot be rotated. | Resend | |
| 63 | In resend of document filed data, data cannot be stored in HD after conversion of resolution for resend. | Resend | |
| 64 | In resending data of document file, during conversion for resending, the number of IMS management pages exceeds the upper limit (999). (IT occurs in OSA Scan to FTP also, resulting in memory over.) | OSA Scan To FTP | |
| 70 | E-mail header acquisition error | E-mail receive | |
| 71 | Time out occurs during e-mail receive. | E-mail receive | |
| 72 | Receive reject occurs during e-mail receive. | E-mail receive | |
| 73 | Network communication cannot be made due to port disable. | Network send | |
| 74 | An authentication of the POP server is failed when POP before SMTP is enabled. | Network send | |
| 75 | In the setting of SSL communication, when SSL communication is tried but the server side does not support SSL. | Network send | |
| 76 | There is no image in network communication (transfer). | Network send | |
| 80 | There is no attached file in received e-mail. | E-mail receive | |
| 81 | The attached file of received e-mail is not of TIFF type which is supported. | E-mail receive | |
| 82 | The TIFF type of the attached file in received e-mail cannot be recognized. ID error | E-mail receive | |
| 83 | The TIFF type of the attached file in received e-mail cannot be recognized. | E-mail receive | |
| 84 | The TIFF type of the attached file in received e-mail cannot be recognized. Version error | E-mail receive | |
| 85 | The TIFF type of the attached file in received e-mail cannot be recognized. Tag data error | E-mail receive | |
| 86 | The TIFF type of the attached file in received e-mail cannot be recognized. | E-mail receive | |
| 87 | The TIFF type of the attached file in received e-mail cannot be recognized. Tag parameter error | E-mail receive | |
| 88 | The TIFF type of the attached file in received e-mail cannot be recognized. Header size error | E-mail receive | |
| 90 | In e-mail receive; an attached file cannot be stored in memory. Memory over. Cannot be stored in memory. | E-mail receive | |
| 91 | In e-mail receive, an attached file cannot be stored in memory. The file size is too great to be stored in memory. | E-mail receive | |
| 92 | In SMTP e-mail receive; an attached file cannot be stored in memory. Cannot be stored in memory. | E-mail receive |
