Parts/Service for VT-1480B / VT-2198B
Uploaded: Nov. 21, 2025, 8:47 p.m.
- Specifications for both VT-1480B and VT-2198B models including broadcast standards, channels, systems, input impedance, audio/video signals, speaker output, power source, dimensions, weight, temperature, TV viewing area, picture power, and tube types.
- Detailed VCR specifications including outline, format, recording system, luminance, chrominance, video signal system, tape type, width, speed, and recording/playback times.
- Accessories include Operation Manual, Infrared Remote Control Unit, and Dry Batteries.
- Important service notes emphasize safety, handling high voltage systems and picture tubes with precautions against X-ray radiation.

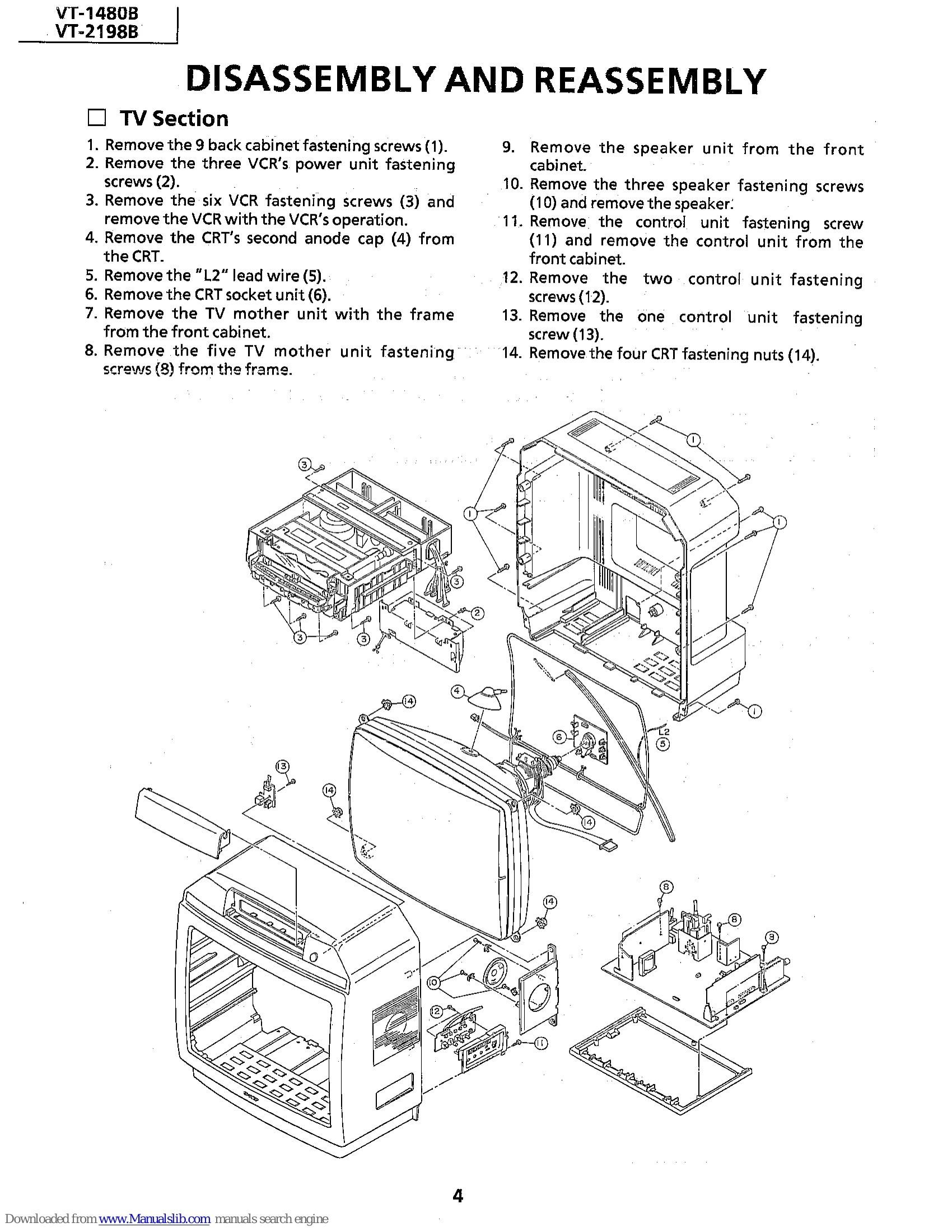

- Disassembly and reassembly instructions are provided for both the TV and VCR sections with diagrams.
- Adjustments for TV electrical circuitry, video/chroma, deflection loop, CRT display, purity, convergence, VCR electrical circuitry (power, servo, Y/C, audio), and RF AGC are detailed with specific test points and procedures.
- Mechanism operation flowchart and troubleshooting guide for cassette insertion to stop, and stop to replay are included.
- Replacement parts lists for mechanism chassis, screws, nuts, washers, cassette housing control, VCR section mechanical parts, and TV section mechanical parts are provided with reference numbers, part numbers, descriptions, and codes.
- Packing of the set instructions are given with knob setting positions and illustrations for packing.
Troubleshooting and error codes
| CASSETTE INSERTION → STOP | STEP | REPLAY → UNLOADING |
|---|---|---|
| Insert cassette. | ||
| Turn off cassette switch. | ||
| Loading motor starts in normal direction and master cam clockwise. | ||
| Cassette inserting. | ||
| Does cassette control clutch come off within 2.5 sec. after cassette switch has turned off? | NO | Cassette is judged caught halfway. |
| YES | Half-loading | |
| Are start/end sensors at high level before cassette insertion? | YES | STOP REC/PLAY |
| NO | Cassette switch turns on. | |
| Cassette is ejected and loading motor stops. | ||
| Loading motor turns in normal direction and master cam clockwise. | ||
| Drum starts. | ||
| Press REC/PLAY Key. | ||
| Half-loading lever works to draw out tape. | ||
| Loading motor turns in reverse direction and master cam counterclockwise. | ||
| Tape loading | ||
| Pole base works to draw out tape. | ||
| Pinch roller comes into contact. | ||
| Drum starts. | ||
| Loading motor stops. | ||
| Is cam switch at PB position? | YES | Loading motor stops. |
| NO | ||
| Is take-up reel sensor signal outputted? | YES | Picture appears. |
| NO | ||
| Capstan motor turns in normal direction. | ||
| Is cam switch at FF position? | YES | Loading motor stops. |
| NO | ||
| Is drum FG pulse outputted? | YES | Take-up and motor unload. |
| NO | End | |
| Unloading |
