Brand: SIEMENS
Category: Control Unit
Document Type: Manual
Language: EN

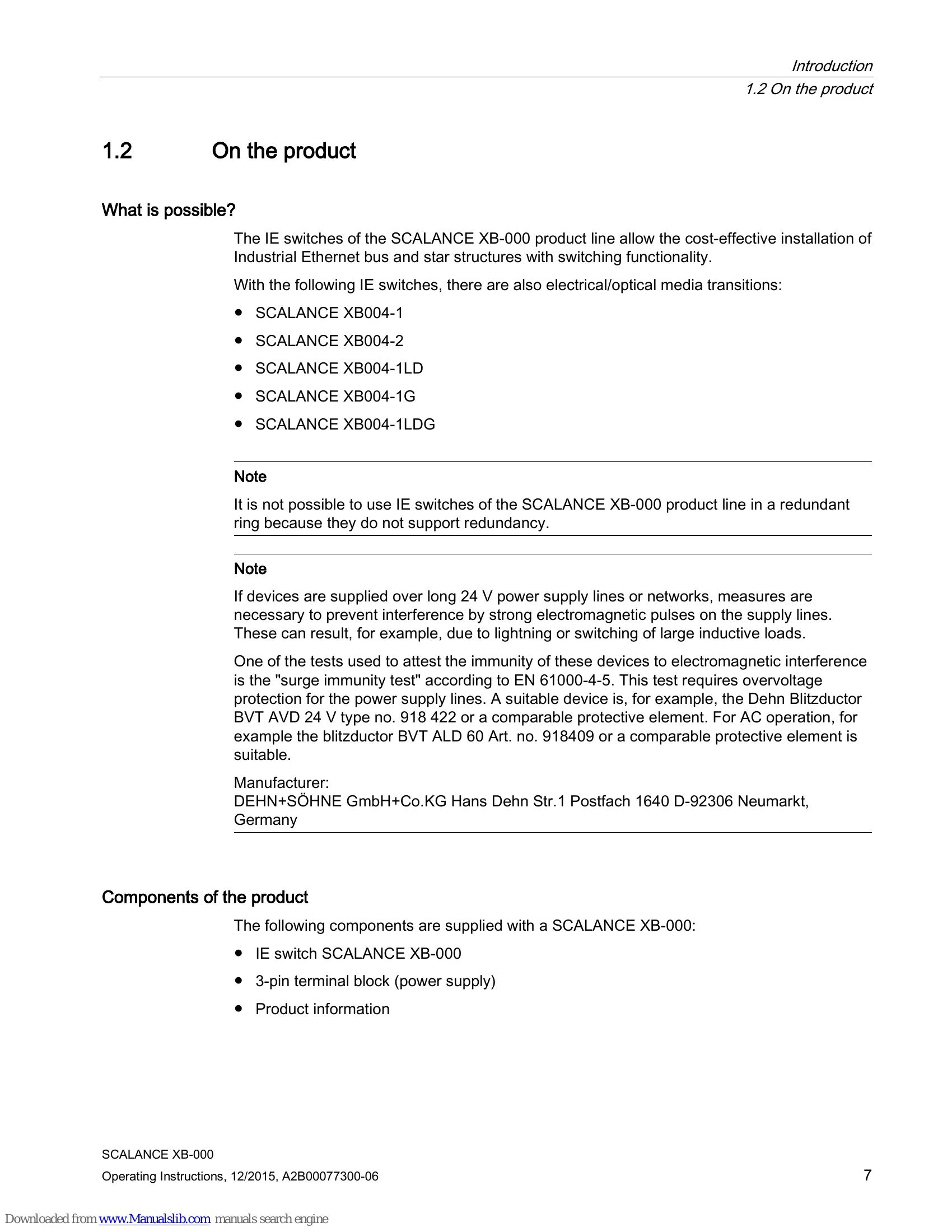

Manual for SCALANCE XB-000
Uploaded: Nov. 21, 2025, 6:38 p.m.
Manual Publish Date: 2015-12-01
The "Operating Instructions" support commissioning networks with the Industrial Ethernet switches of the SCALANCE XB-000 product line. These switches allow cost-effective installation of Industrial Ethernet bus and star structures with switching functionality. Key features include support for star topologies, various connection options (RJ-45, SC sockets), and Gigabit Ethernet capability for some models. The manual also covers mounting, connecting, maintenance, troubleshooting, technical specifications, and approvals. Safety guidelines and electrostatic discharge precautions are also detailed.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No communication | Incorrect cabling | Check cabling. |
| Device not detected | Incorrect IP address | Check IP address settings. |
| LEDs indicate error | Refer to LED display section for error codes | Consult manual for specific LED error codes and troubleshooting steps. |
