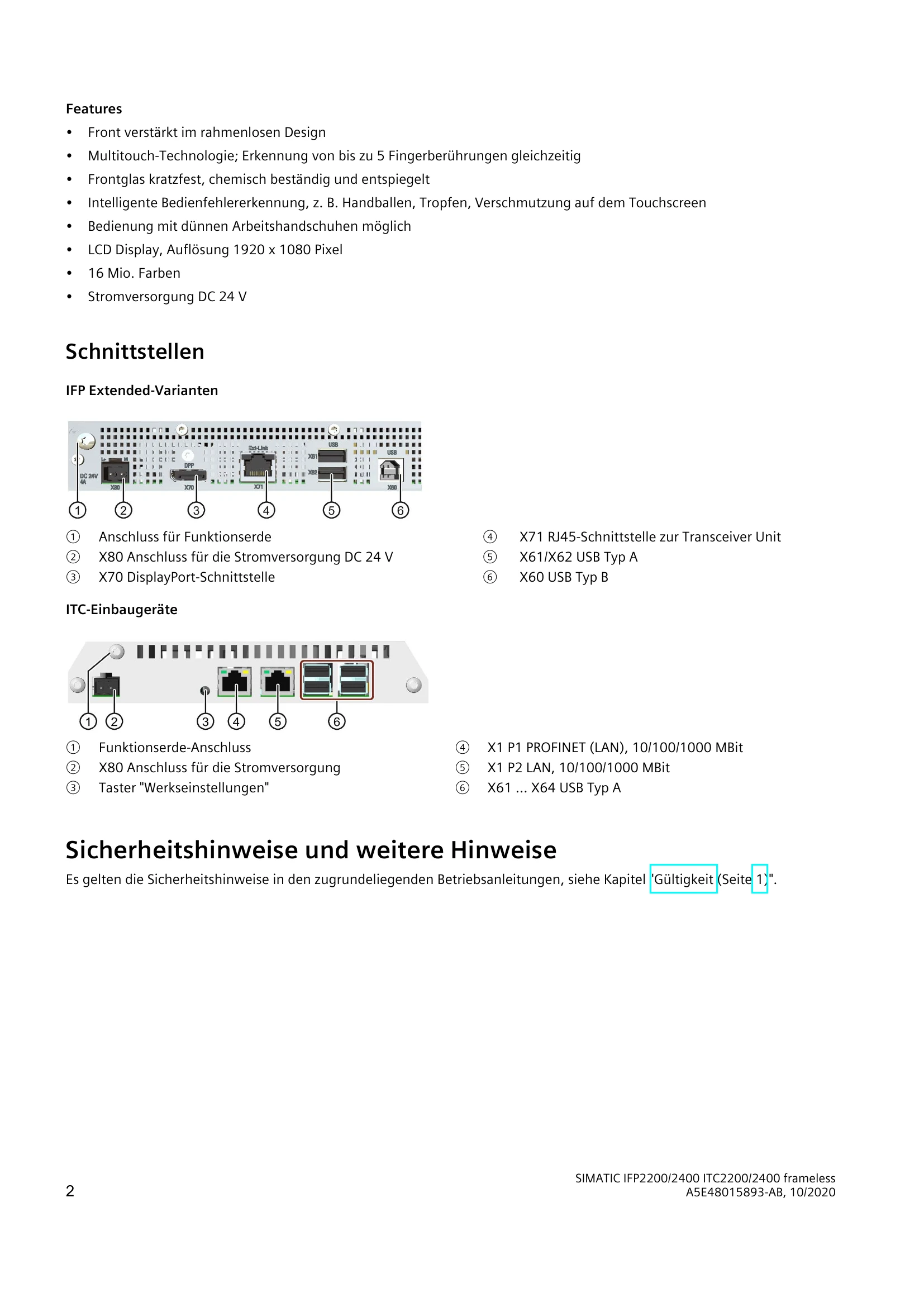

Manual for SIMATIC IFP2200/2400 ITC2200/2400 frameless
Uploaded: Nov. 21, 2025, 6:05 p.m.
Manual Publish Date: 2020-10-01
Warranty Information
Non-compliance with transport, storage, installation, or maintenance requirements voids the warranty.
The multi-touch screen can be operated with one or multiple fingers, supporting gestures with up to five fingers. It features intelligent operation fault recognition and can be operated with thin working gloves. The display offers a resolution of 1920 x 1080 pixels and 16 million colors, powered by a 24 V DC supply. Safety functions in industrial environments lock the touchscreen in case of conductive liquid contact or electromagnetic interference.
Troubleshooting and error codes
| Condition | Troubleshooting |
|---|---|
| No earth connection or protective conductor connection | Malfunctions of the capacitive touch screen; may cause personal injury or property damage. Always connect the device to a grounding conductor or protective conductor. Ensure low impedance connection to earth. Connect protective conductor to the control cabinet/system with a minimum cross-section of 2.5 mm². |
| Maloperation | Configure the plant so safety functions are not operated by touch screen. Switch off for cleaning/maintenance. Keep touch screen clean. |
| Improper execution of gestures | Gestures may not be recognized or may be recognized incorrectly, leading to unintended device implementation. Incorrect execution can cause plant errors and physical injury. Touch screen reacts to surface contact, not pressure. Use capacitive touch pens. Avoid unintended multiple touches. Familiarize yourself with gestures and applications. |
| Touch screen locked (security reasons) | Conductive liquid on screen with ground contact, or electromagnetic interference exceeding EN 61000-4-2. Touch screen unlocks when interference ceases. |
