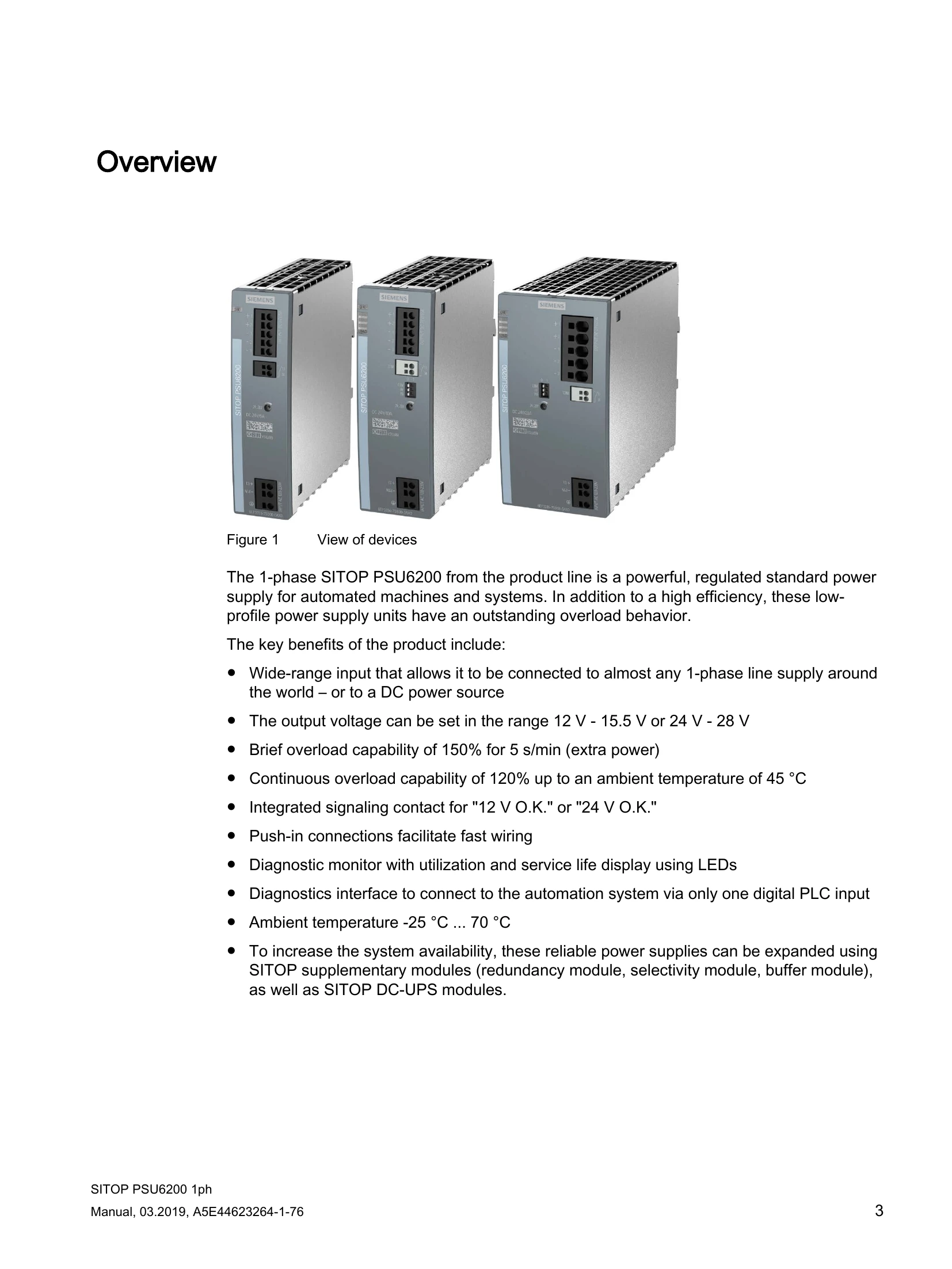

Overview

The 1-phase SITOP PSU6200 is a powerful, regulated standard power supply for automated machines and systems. It offers high efficiency and outstanding overload behavior.

Key benefits include:

  • Wide-range input (1-phase AC or DC) for global compatibility.
  • Adjustable output voltage (12 V - 15.5 V or 24 V - 28 V).
  • Brief overload capability (150% for 5 s/min) and continuous overload capability (120% up to 45 °C).
  • Integrated signaling contact for "O.K." status.
  • Push-in connections for fast wiring.
  • LED diagnostics for utilization and service life.
  • Diagnostics interface for automation system connectivity.
  • Wide operating ambient temperature range (-25 °C to 70 °C).
  • Expandable with SITOP supplementary modules for increased system availability.

Troubleshooting and error codes

Problem Possible Cause Solution
Output voltage cannot be set. Potentiometer is not actuated. Actuate potentiometer with an insulated screwdriver.
Device does not start up. Incorrect input voltage. Check input voltage connection and source.
Output overload indicated. Load exceeds rated capacity. Reduce load or use a higher capacity power supply. Consider parallel connection.
Thermal overload. Excessive ambient temperature or continuous overload. Ensure adequate ventilation, comply with ambient temperature limits, and reduce load if necessary.
Signaling contact not active. Incorrect DIP switch setting for COM. Check DIP switch settings for COM function.
