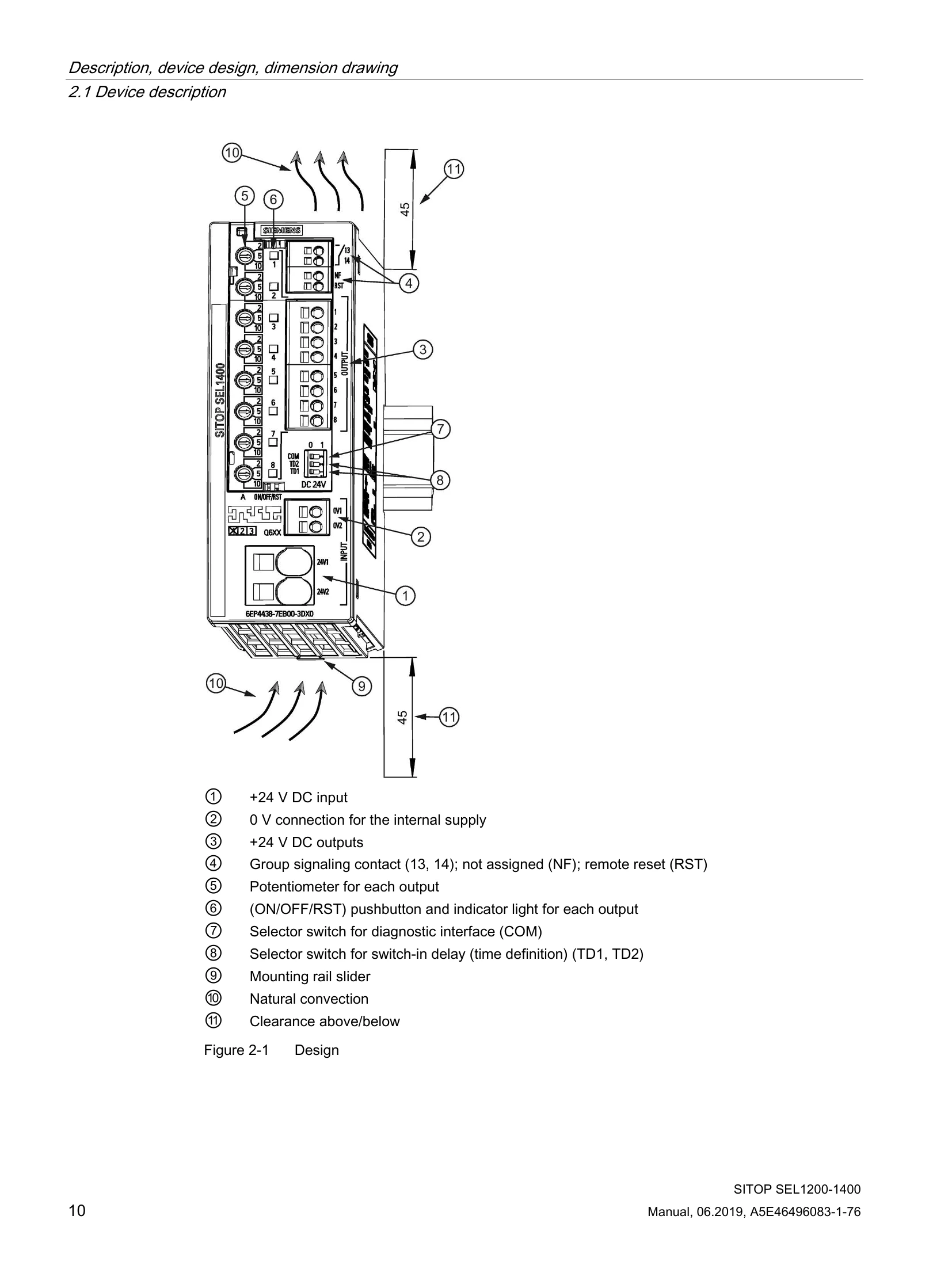

Manual for SITOP SEL1200-1400

The SITOP SEL1200-1400 is a selectivity module used in conjunction with a 24 V power supply to distribute load current across multiple branches and monitor individual branch currents.

Key features include:

• Monitoring of up to 8 load branches per module.
• Adjustable response threshold for each output via potentiometer.
• Automatic selective switch-off of faulty branches (overload or short-circuit) to prevent impact on other circuits.
• Fast troubleshooting and minimized downtime.
• SEL1200 buffers a 10 ms voltage-free period; SEL1400 prevents voltage dips below 20 V.
• Outputs can be switched on/off manually or via remote reset.
• Fast fault diagnostics with multi-colored LEDs.
• Floating group signal contact for remote diagnostics.
• Sequential switch-on of load branches to reduce inrush current.
• Push-in terminals for easy connection.

The module ensures that the 24 V supply for other loads is maintained during faults.
