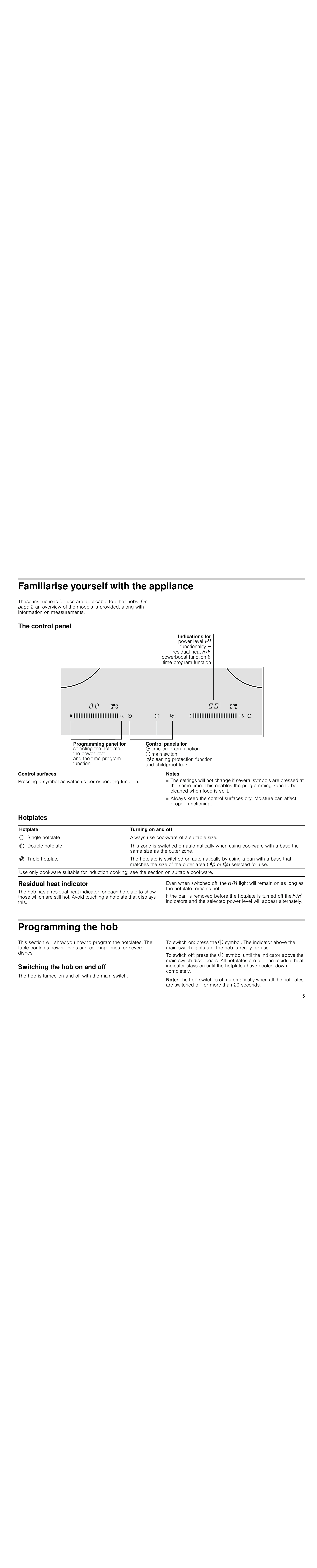

Manual for EH9..SK1..
Uploaded: Nov. 21, 2025, 7:03 p.m.
Warranty Information
Refer to the appliance certificate or contact customer service for warranty information.
Hob Operation Summary
This manual provides instructions for operating the Siemens EH9..SK1.. cooktop. Key operations include:
- Switching On/Off: Use the main switch symbol to turn the hob on and off.
- Setting Power Levels: Select the desired hotplate and slide your finger on the programming panel to choose a power level from 1 (minimum) to 9 (maximum). Intermediate settings are available.
- Time Programming: Set a cooking time to automatically switch off a hotplate or use it as a timer.
- Powerboost Function: Activates a higher heating power for quicker cooking.
- Childproof Lock: Prevents accidental activation of the hob.
- Cleaning Protection: Locks the control panel for safe cleaning.
Refer to the manual for detailed instructions on each function and safety precautions.
Troubleshooting and error codes
| Indicator | Malfunction | Solution |
|---|---|---|
| none | The electric power supply has been cut off. | Use other electrical appliances to check whether there has been a power cut. |
| none | The appliance has not been correctly connected following the connection diagram. | Check that the appliance has been connected correctly according to the connection diagram. |
| none | Electronic system malfunction. | If in the above checks, the malfunction is not resolved, contact the Technical Assistance Service. |
| E flashes | The control panel is damp or an object is resting on it. | Dry the control panel area or remove the object. |
| Er + number / 2 + number | Electronic system malfunction. | Unplug the hob from the mains. Wait about 30 seconds before plugging it in again.* |
| F0 | There is an internal error in the operation. | Unplug the hob from the mains. Wait about 30 seconds before plugging it in again.* |
| F2 | The electronic system has overheated and the corresponding hotplate has been switched off. | Wait until the electronic system has cooled down completely. Then push any symbol on the hob.* |
| F4 | The electronic system has overheated and all hotplates have been switched off. | |
| U1 | Supply voltage outside normal operating limits. | Please contact the local electricity board. |
| U2 / U3 | The hotplate has overheated and has switched off in order to protect its cooking surface. | Wait until the electronic system has cooled down sufficiently before switching it back on. |
