Brand: SIEMENS
Category: Cooktop
Document Type: Manual
Language: EN
Manual for EX675LYV1E
Uploaded: Nov. 21, 2025, 8:40 p.m.
Warranty Information
Contact customer service for repair information and booking.

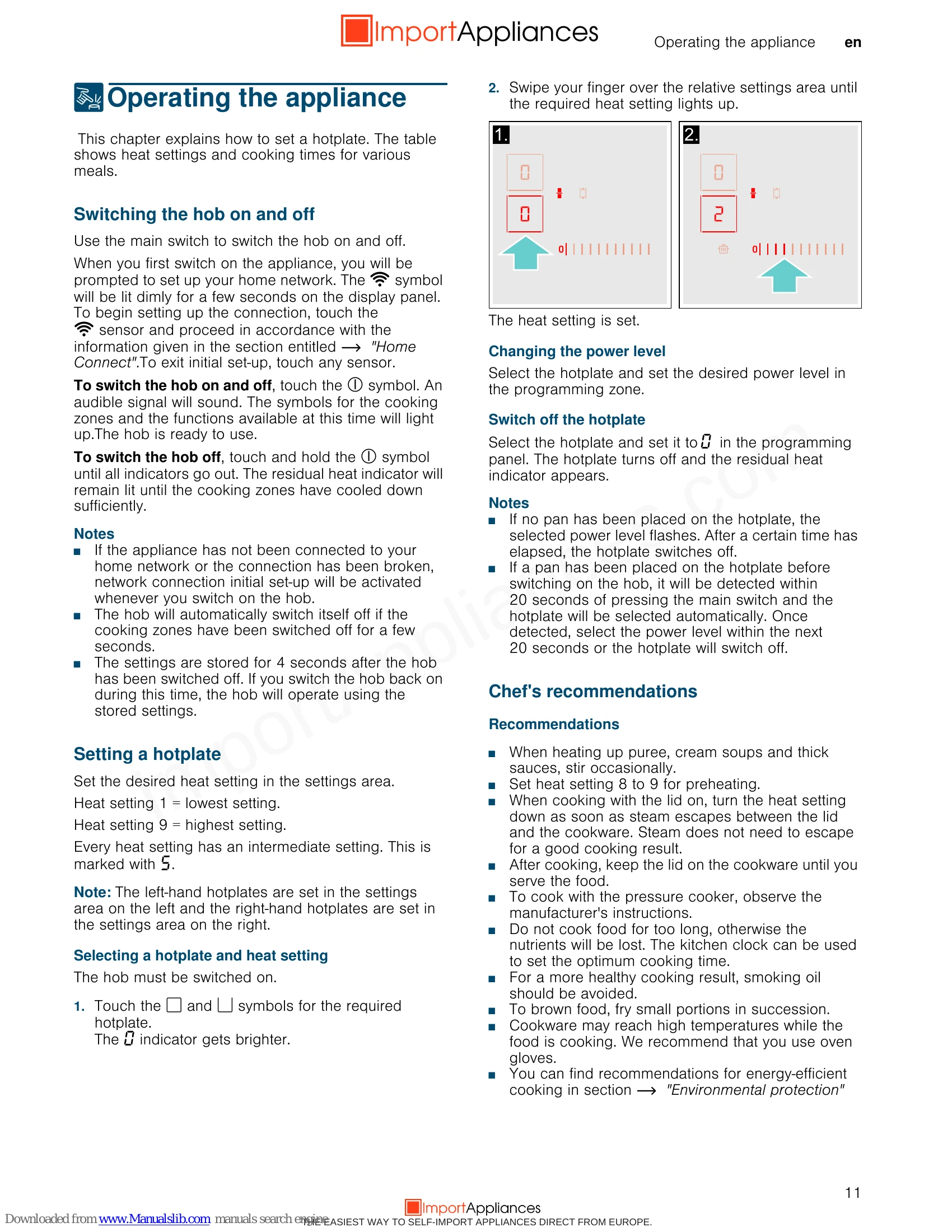

Switching the hob on and off
Use the main switch to switch the hob on and off.
To switch the hob on and off, touch the ⑪ symbol. An audible signal will sound. The symbols for the cooking zones and the functions available at this time will light up. The hob is ready to use.
To switch the hob off, touch and hold the ⑪ symbol until all indicators go out.
Setting a hotplate
Set the desired heat setting in the settings area.
Heat setting 1 = lowest setting.
Heat setting 9 = highest setting.
Every heat setting has an intermediate setting. This is marked with 5.
Chef's recommendations
- When heating up puree, cream soups and thick sauces, stir occasionally.
- Set heat setting 8 to 9 for preheating.
- When cooking with the lid on, turn the heat setting down as soon as steam escapes between the lid and the cookware.
- After cooking, keep the lid on the cookware until you serve the food.
Troubleshooting and error codes
| Display | Possible cause | Solution |
|---|---|---|
| None | The power supply has been disconnected. | Use other electrical devices to check whether a short-circuit has occurred in the power supply. |
| The device has not been connected in accord-ance with the circuit diagram. | Ensure that the device has been connected in accordance with the circuit diagram. | |
| Electronics fault. | If the fault cannot be eliminated, inform the technical after-sales service. | |
| The displays flash | The control panel is damp or an object is cover-ing it. | Dry the control panel or remove the object. |
| A fault has occurred in the electronics. | To acknowledge the fault, cover the control panel with your hand. | |
| The indicator flashes in the hotplate displays F2 | The electronics have overheated and have switched off the corresponding hotplate. | Wait until the electronics have cooled down sufficiently. Then touch any symbol on the hob. |
| F4 | The electronics have overheated and have switched off all hotplates. | Wait until the electronics have cooled down sufficiently. Then touch any symbol on the hob. |
| FS + heat setting and acous-tic signal | There is a hot pan in the area of the control panel. There is a risk that the electronics will overheat. | Remove the pan. The fault display goes out shortly afterwards. You can continue to cook. |
| FS and acoustic signal | There is a hot pan in the control panel. To protect the electronics, the hotplate has been switched off. | Remove the pan. Wait for a few seconds. Touch any control. If the fault display goes out, you can continue to cook. |
| F1/F6 | The hotplate has overheated and switched itself off to protect the work surface. | Wait until the electronics have cooled down sufficiently and switch the hotplate on again. |
| F0 | You cannot activate the settings transfer function | Check the fault display by touching any control. You can cook as usual without using the settings transfer function. Contact the technical after-sales service. |
| F9 | You cannot activate the FlexPlus cooking zone | Check the fault display by touching any control. You can use the remaining hotplates to cook as usual. Contact the technical after-sales service. |
| F8 | The hotplate was operating for an extended period without interruption. | The automatic safety switch-off function has been activated. See section |
| 89000 E9010 0400 | The supply voltage is faulty; outside of the nor-mal operating range. | Contact your electricity provider. |
| DE | The hob is not connected properly The demo mode is activated | Disconnect the hob from the power supply. Ensure that it has been connected in accordance with the circuit diagram. Disconnect the hob from the power supply. Wait 30 seconds and reconnect it. Touch any touch control in the next three minutes. The demo mode is deactivated. |
