Brand: SIEMENS
Category: Mobile Phone
Document Type: Parts/Service
Language: EN

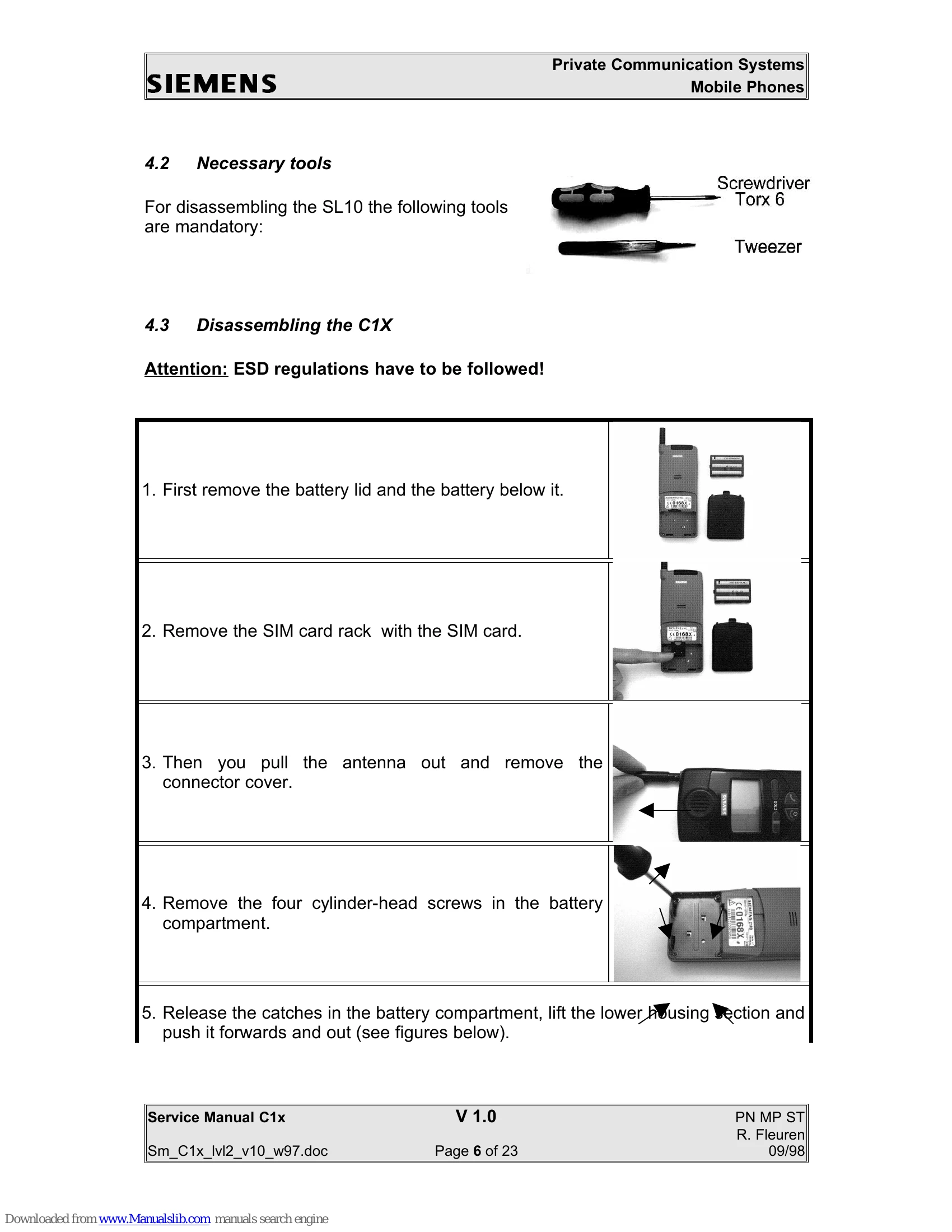

Parts/Service for C1x
Uploaded: Nov. 21, 2025, 9:25 p.m.
Manual Publish Date: 1998-09-01
Warranty Information
Warranty information is not detailed in this service manual.
Basic Operation of the C1x Mobile Phone
The C1x series (C10, C11, C12) are entry-level mobile phones. Key features include an alphanumeric display with 3 lines of text (12 characters each) and a dedicated icon-line. The phones are designed for mass consumer market use. For detailed operation, refer to specific sections on software booting, language groups, and battery charging.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Phone does not turn on. | Battery discharged. | Charge the battery (see Section 7.4 Deep Discharge). |
| Charging does not start. | Battery deeply discharged. | Perform trickle charge for approx. 1 hour, then reconnect charger. If deeply discharged, trickle charge may need up to 24 hours. |
| Phone is disabled (e.g., wrong phone code entry). | Incorrect unblocking code entered. | Contact the Siemens Hotline or use the internet solution to retrieve the correct unblocking code using the IMEI number. |
| Overvoltage condition. | Supply voltage above 6.2V (battery) or 7V (potential destruction). Charging current above 1A. | Ensure correct voltage and current. If voltage exceeds 7V or polarity is wrong, the phone can be destroyed. Charging current must be limited to below 1A. |
