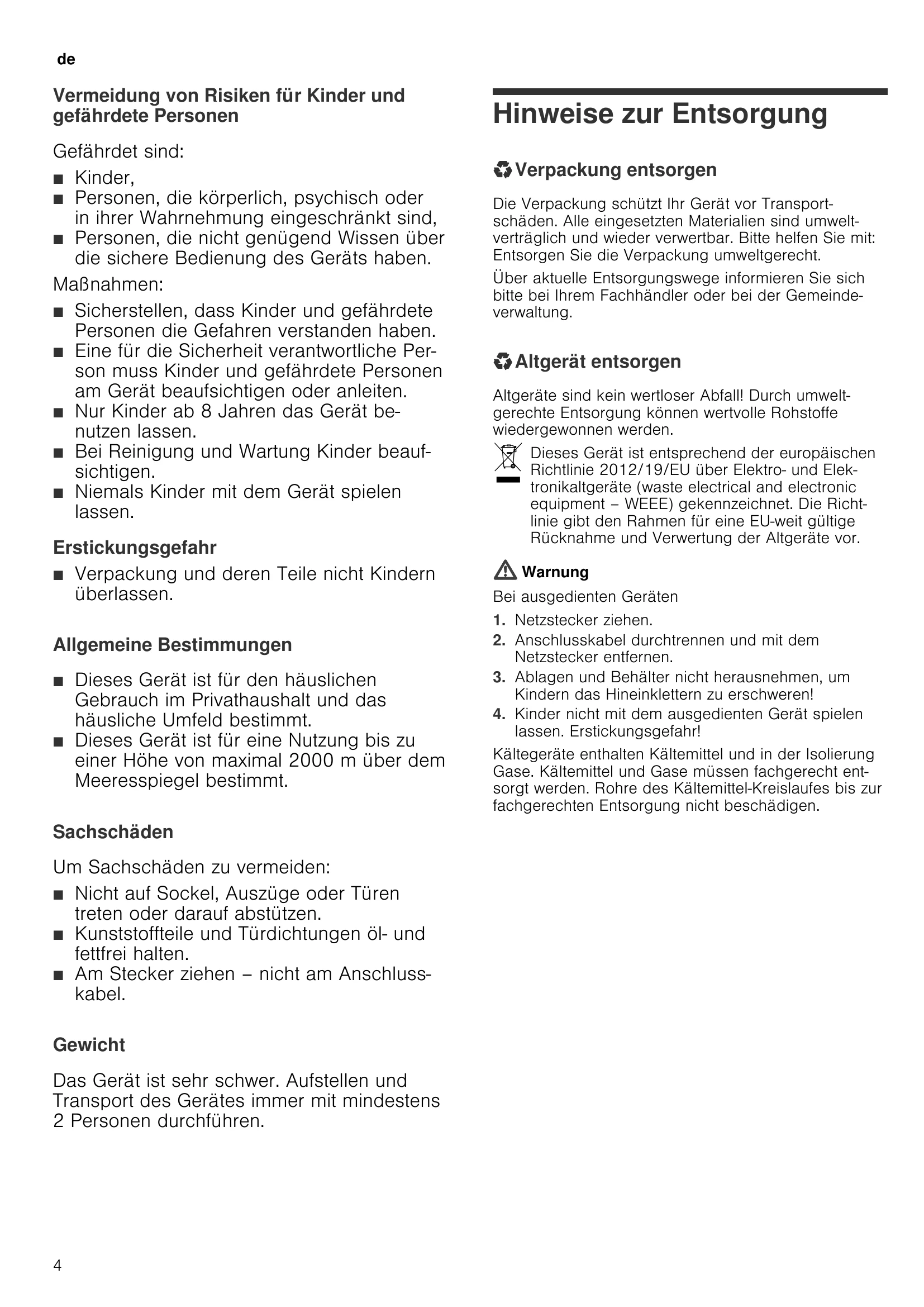

Manual for KA93DVIFP
Uploaded: Nov. 21, 2025, 9:01 p.m.
Warranty Information
Consult the service booklet for warranty details.
Appliance Features
Getting Started
- Installation: Ensure the appliance is installed correctly according to the manual's instructions, including proper ventilation and leveling. Connect to water supply before connecting to power. Allow at least 1 hour before initial operation.
- Initial Setup: Clean the interior before first use. Temperatures will be set to recommended levels (-18°C for freezer, +4°C for refrigerator) by default.
Basic Operation
- Temperature Control: Adjust freezer and refrigerator temperatures using the 'freeze/super 3s' and 'cool/super 3s' buttons respectively. Options for 'Super-Cooling' and 'Super-Freezing' are available for rapid cooling/freezing.
- Ice & Water Dispenser: Select water, cubed ice, or crushed ice. Ensure the door is closed and child lock is off for operation.
- Special Modes: Utilize 'Vacation' mode for energy saving during absences and 'Eco' mode for general energy efficiency.
Maintenance
- Cleaning: Regularly clean the interior and exterior with mild detergent. Remove and clean shelves and drawers.
- Water Filter: Replace the water filter every 6 months or when indicated.
- Defrosting: The NoFrost system automatically defrosts the freezer. The refrigerator defrosts automatically.
Troubleshooting and error codes
| Trouble | Possible Cause | Solution |
|---|---|---|
| Appliance not working | Mains plug not inserted properly. Fuse is blown or faulty. Mains voltage failure. Too low ambient temperature. | Check plug is firmly in socket. Check fuse, replace if necessary. Check mains voltage. Try to remedy the problem by lowering the set temperature. |
| Odors in the interior | Interior is soiled. Some foodstuffs, containers or packaging are causing odors. | Clean the interior. |
| Motor runs continuously | It is normal for the motor to run frequently. The motor runs more often under the following conditions: Temperature set too low. A large quantity of warm foodstuffs was recently placed in the appliance. Ambient temperature is too high. Doors were open for a long time or opened too frequently. After initial start-up or after the appliance has been switched off for a long time. | Ensure air vents are not blocked by foodstuffs and that foodstuffs are placed in the appliance in a way that ensures adequate ventilation. Check that the door is properly closed. To remove ice buildup: See "Cleaning the Appliance". |
| Ice layer forms in the interior | Air outlets are blocked; insufficient ventilation; door is not properly closed. | Ensure air outlets are not blocked by foodstuffs and that foodstuffs are placed in the appliance in a way that ensures adequate ventilation. Check that the door is properly closed. To remove ice buildup: See "Cleaning the Appliance". |
| Temperature in the appliance is too high | Doors were opened for too long or too frequently; or doors were held open by an obstruction; or the appliance was set up with insufficient clearance at the sides, bottom, or top. | Do not open doors unnecessarily or for longer than needed; check clearance around the appliance. |
| Doors close with difficulty | The appliance is not tilted backward by approx. 15 mm. Something in the interior is preventing the doors from closing. | Check tilt and correct if necessary by turning the leveling feet. Check interior and remove obstruction. |
| Light does not work | The LED lighting has automatically switched off because the door was open for too long. The LED lighting is faulty. | Close and reopen the door to reactivate the lighting. Have the LED lighting replaced. See "Lighting (LED)". |
