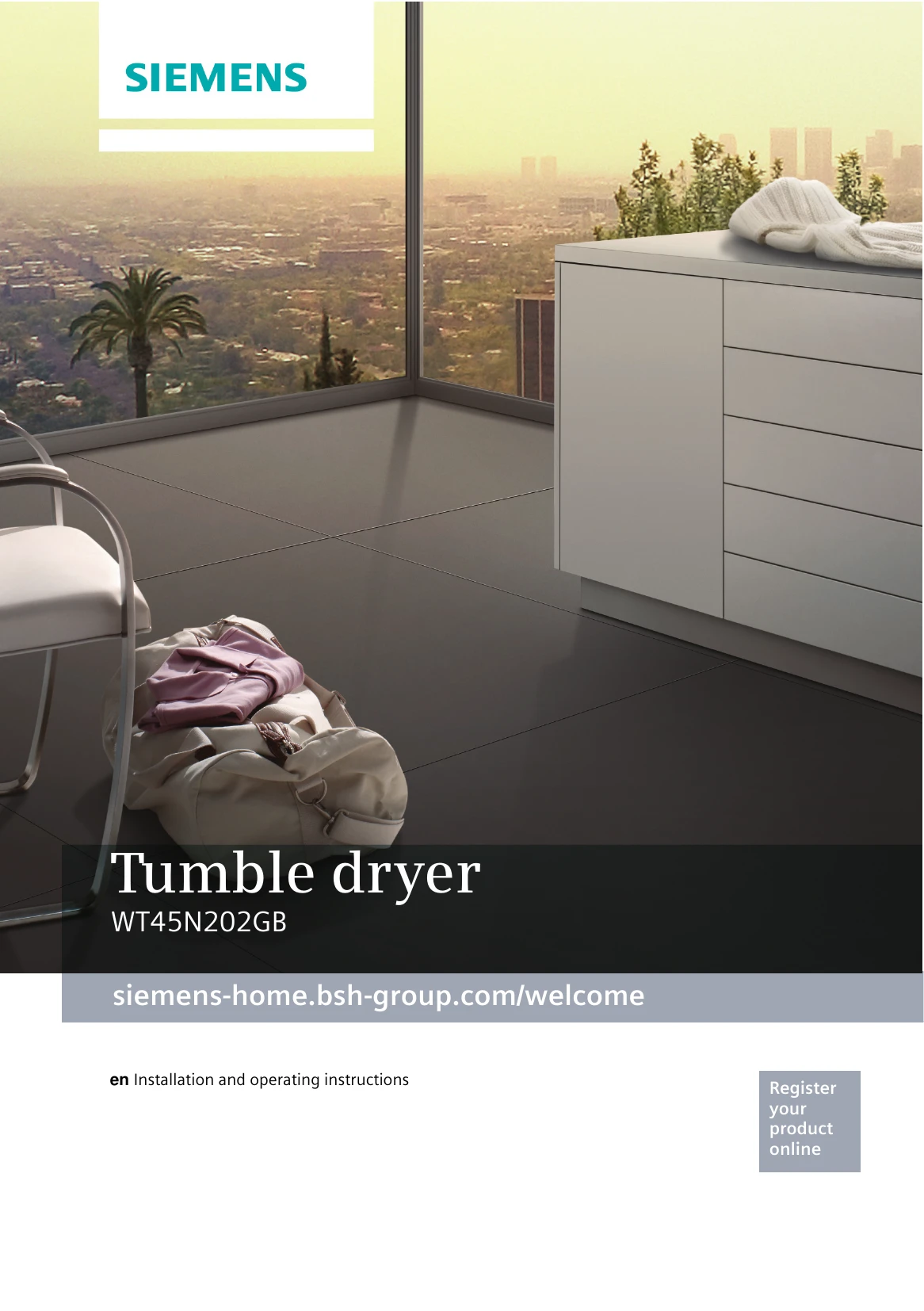

Manual for WT45N202GB

Manual for WT45N202GB

Brand: SIEMENS

Category: Tumble Dryer

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:14 p.m.

Warranty Information

Refer to the enclosed documentation for warranty details.

Basic Operation

  1. Load laundry and close the door.
  2. Switch on the dryer.
  3. Select a program and adjust default settings if necessary.
  4. Press the Start button to begin drying.
  5. Remove laundry once the cycle is complete.
  6. Switch off the dryer.
  7. Empty the condensate container and clean the fluff filter after each use.

Refer to the manual for detailed program information and specific instructions.

Troubleshooting and error codes

Faults Cause/remedy
On the display panel and drying has been interrupted. Empty the condensate container and press the Start button → Page 24. If the optional condensation drain is installed, the drain hose may be blocked. Check the hose for deposits and flush the hose out.
On the display panel. Clean the fluff filter and/or the heat exchanger, then select the Start button → Page 26;→ Page 29.
Dryer does not start. Mains plug plugged in or fuse checked? Program selected? Select a program. Dryer door open? Close the door. Childproof lock activated? Deactivate the childproof lock. "Finish in" time selected? Program starts after a delay.
Display panel goes off and Start button flashes. Not a fault. Energy saving mode is active → Page 12.
Creasing. Creasing occurs when you have exceeded the maximum load or selected the wrong program for the type of fabric. All the required information can be found in the program table. Remove clothes immediately after drying; creasing may occur if they are left in the drum.
Water is leaking out. Not a fault; the dryer may be positioned on an incline. Level the dryer.
Change in the programme duration displayed during drying. Not a fault. The moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes).
Laundry is not dried correctly or is still too damp. After the end of the program, warm laundry feels damper than it actually is. Spread the laundry out and allow the heat to disperse. Finely adjust the dryness level – this extends the drying time but does not increase the temperature. Your laundry will become drier → Page 24. Select a program with a longer drying time or increase the drying level. This does not increase the temperature. Select a timed program for subsequent drying of laundry that is still damp → Page 22. Select timed program for a small load and individual items of laundry. If you have exceeded the maximum load for the program, the laundry may not be dried properly. Clean the moisture sensor in the drum. The sensor may become covered by a fine layer of limescale or residues of detergents and care products which then impair its function. Your laundry is not being dried correctly → Page 30. Drying has been interrupted as a result of a power cut, because the condensate container is full or because the maximum drying time has been exceeded.
Drying time too long? The fluff filter may be dirty and cause a longer drying time. Clean the fluff filter. The heat exchanger may be dirty and cause a longer drying time. Clean the heat exchanger. If the air inlet on the dryer is blocked or not freely accessible, this may increase the drying time. Make sure that the air inlet remains unobstructed. If the ambient temperature is higher than 35 °C, this may extend the drying time. Insufficient air circulation in the room may increase the drying time. Ventilate the room.
Displayed drying time changes during drying process. Not a fault. The dryer recognizes the load and adapts the remaining program duration.
Humidity in the room increases. Not a fault. Make sure the room is sufficiently ventilated.
Power cut. The drying program is interrupted. Remove the laundry and spread it out, or restart the program.
