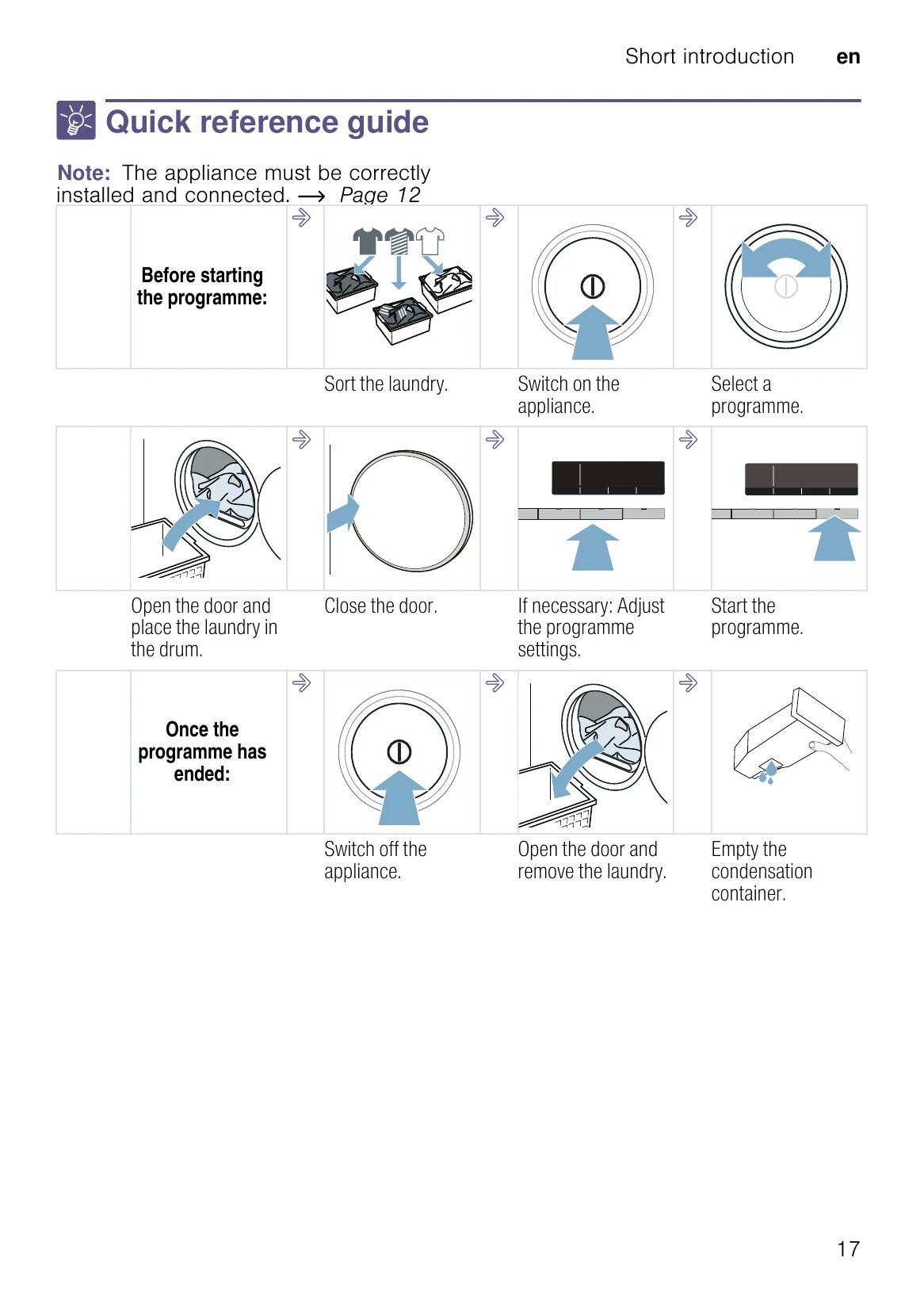

Quick Reference Guide

Before starting the programme:

  • Sort the laundry.
  • Switch on the appliance.
  • Select a programme.
  • Open the door and place laundry in the drum.
  • Close the door.
  • If necessary, adjust programme settings.
  • Start the programme.

Once the programme has ended:

  • Switch off the appliance.
  • Open the door and remove the laundry.
  • Empty the condensation container.

Troubleshooting and error codes

FaultsCause/Remedy
Appliance does not startCheck the mains plug and the fuses.
The appliance does not respond to inputs and the display shows: A1If there is fluff or debris in the fluff filter or if the fluff filter is damp, this may impair the airflow in the appliance at low ambient temperatures. Clean the base unit and dry the fluff filter thoroughly. → Page 47
Switch the appliance off and on again.
Press Start/Reload to restart the programme.
Creasing.Load exceeded or incorrect programme selected for a type of fabric. All the required information can be found in the programme table. → Page 22
Remove laundry from the drum as soon as the drying programme has finished. Creasing occurs when clothing is left in the drum.
Water is leaking out.The appliance may be positioned at an angle. Level the appliance.
In the base unit, make sure that:
  • The heat exchanger cover is properly locked.
  • There is no dirt or debris on the heat exchanger cover's seal. → Page 47
  • If the optional drain hose* is installed, make sure that the drain hose is correctly connected. → Page 44
The appliance is paused but the drum is turning.The appliance has detected a high temperature and has started the CoolDown process. Temperature regulation can take up to 10 minutes. You can cancel the CoolDown process at any time by opening the door.
The programme does not startMake sure that:
  • The door is closed
  • The Child Lock 3 sec. has been deactivated
  • You have pressed Start/Reload
Note: If the programme has been delayed by setting - Ready in +, the programme starts at a later point.
Programme duration displayed changes as drying progresses.Not a fault. The moisture sensor measures the residual moisture in the laundry and adjusts the programme duration (with the exception of timed programmes).
