Manual for UBP-X700 / UBP-UX70

SECTION 1 SERVICE NOTE

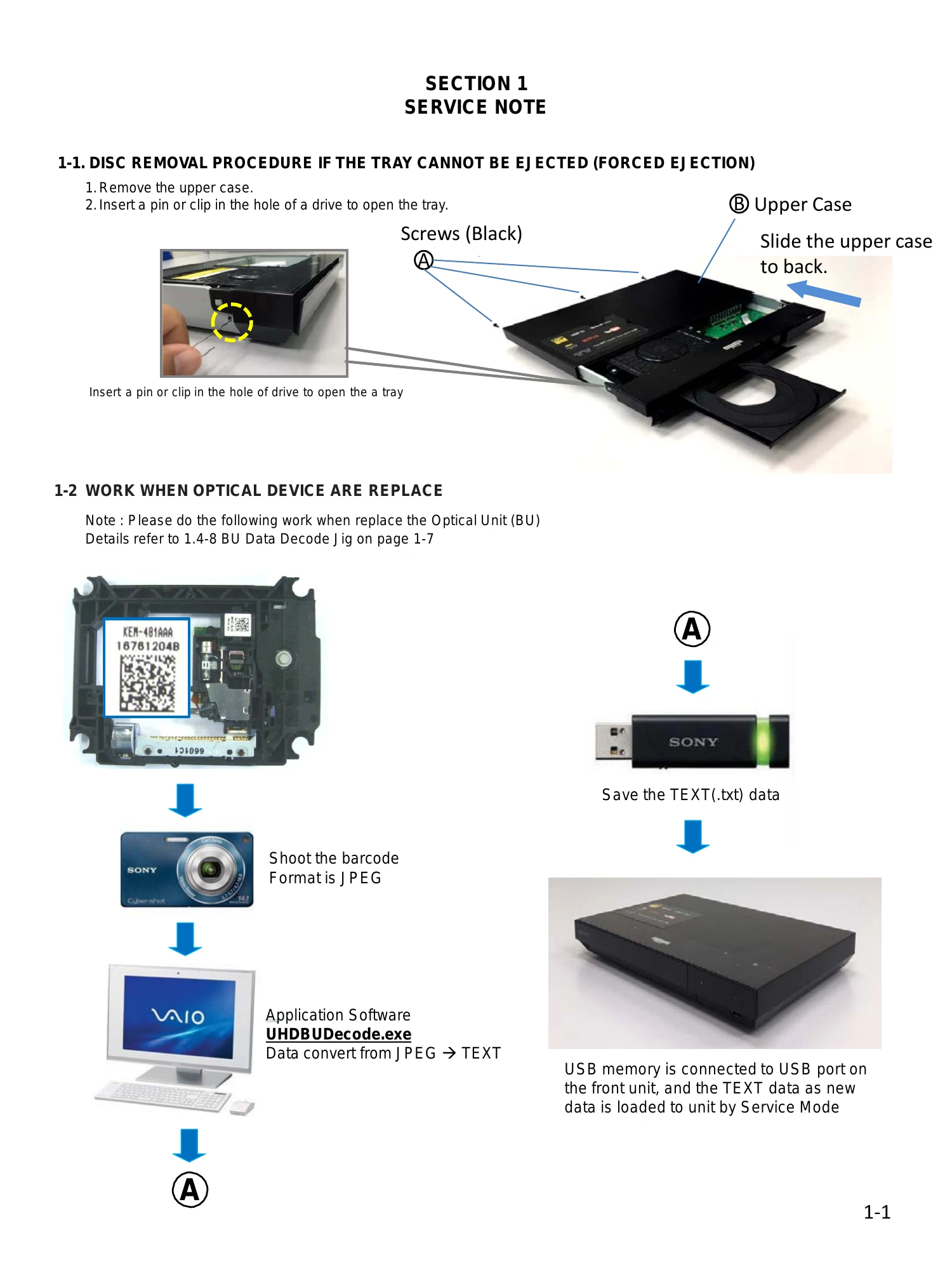

1-1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)
1. Remove the upper case.
2. Insert a pin or clip in the hole of a drive to open the tray.
1-2 WORK WHEN OPTICAL DEVICE ARE REPLACE
Note: Please do the following work when replace the Optical Unit (BU)
Details refer to 1.4-8 BU Data Decode Jig on page 1-7
1-3. TEST DISC
1-3-1. Operation and Display
Disc checking items:
1) ULX-301 (Ultra HD Blu-ray disc) with triple layer (L0, L1, L2)
1. No disc Menu; auto playback chapter 1 → press
2. Play chapter 1: Content C Color bar 100% (LO)
3. Play chapter 20 : Content A with Bouncy music (L1) → press
4. Play chapter 21: Content A with Bouncy music (L2)
2) BLX-104 (BD-ROM Single layer)
* 1. Select 23.976Hz/1080p
2. Play "4.Motion pictures"
3. Check whether player can play back or not
4. Check each outputs Video:
Composite/component/HDMI Audio:
Digital out (Coaxial/Optical)/Audio out/5.1Ch output
When 1080/24p monitor no output, select1080i (59.94Hz or 50Hz) instead of 1080/24p.
However this is temporary correspondence.
3) BLX-204 (BD-ROM Dual layer)
1. Select 1080i (59.94Hz or 50Hz)
2. Play "4.Motion pictures"
3. Check whether player can play back or not (Check the picture and sound output)
4) CD HLX-A1
Check whether player can play back or not (Check the sound output)
5) DVD HLX-513/514 (NTSC), HLX-506/507 (PAL)
1. After displayed Main Menu, select "1. Video"
2. Play "1.Color Bar 100%" (Check the picture and sound output)
3. Return to Menu
4. Play "Demonstration 4:3" or "Demonstration 16:9" (Check the picture and sound output)
1-3-2 Disc Information (ULX-301)
SECTION 2 DISASSEMBLY
2-1. DISASSEMBLY FLOW
SET
2-2 CASE UPPER
2-3 PANEL FRONT & FR PWB
2-4 WIFI & MB PWB
2-5 BD DRIVE
2-2. CASE UPPER
2-3. PANEL FRONT & FR PWB
2-4. WIFI & MB PWB
2-5. BD DRIVE
SECTION 3 BLOCK DIAGRAMS
3-1. FRAME HARNESS : UBP-X700 / UX70
SECTION 6 TROUBLESHOOTING
6-1. Main Flowchart
Start (and return from each
flowchart)
Power LED Light up about 10s
and turn of automatically.
Yes
No
Are all the power line mentioned
in Power flow (x-x) normal?
No
Yes
Check IC401, pin 2
(output) UNSW 1.8V
No
Yes
Set can power ON by Power
Switch or Remote Control.
No
6-3. Remote Con Flowchart
6-4. FR board flowchart
Yes
No
Check HDMI output
6-5. Video/HDMI flowchart
Yes
No
Check Coaxial Output
6-6. Audio flowchart
Yes
No
Check Playback function
6-7. Drive flowchart
Yes
No
Check Internet connection
function
6-8. Ethernet Flowchart
6-9. Wifi Flowchart
Yes
Check USB playback function
Yes
Change MB board
To Drive Flowchart (BU adj. flow)
No
6-10. USB flowchart
6-2. Power System Flowchart
SECTION 7 REPAIR PARTS LIST
7-1. EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)... (RED)
Abbreviation :
UK: UK Model
AEP: AEP Model
MX: Mexican Model
SP: Singapore Model
CH: Chinese Model
RUS: Russian Model
AUS: Australian/NZ Model
E: Latin America Model
TW: Taiwan Model
CL: Chille Model
TH: Thailand Model
IN: India Model
EA: EA Model
KS: Saudi Arabia Model
US: US Model
CND: Canadian Model
AUS: Australian/NZ Model
PX: PX Model
BR: Brazilian Model
• Items marked "*" are not stocked since they are seldom
required for routine service. Some delay should be
anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of the electrical parts list.
7-1-1 CASE SECTION
ns: not supplied
7-1-2. MAIN CHASSIS SECTION
7-1-3. DRIVE SECTION
7-1-4. Accessories
1 AC Adaptor
2 Power Supply Cord
3 Remote Commander
