The manual provides detailed instructions for the servicing and repair of the ILME-FX6V camcorder. It covers various sections including Service Overview, Product Comparison, Circuit Description, Replacement of Parts, Error Codes, Service Menu, Spare Parts, and Diagrams. Specific procedures are outlined for disassembling and reassembling various components like the top cabinet, bottom cover, inside panels, and external parts. It also details the functions of onboard LED indicators and includes a comprehensive error code list with check and action procedures. The document guides users through electrical adjustments, handling of cables, cleaning procedures, and provides exploded views for identifying and replacing parts.

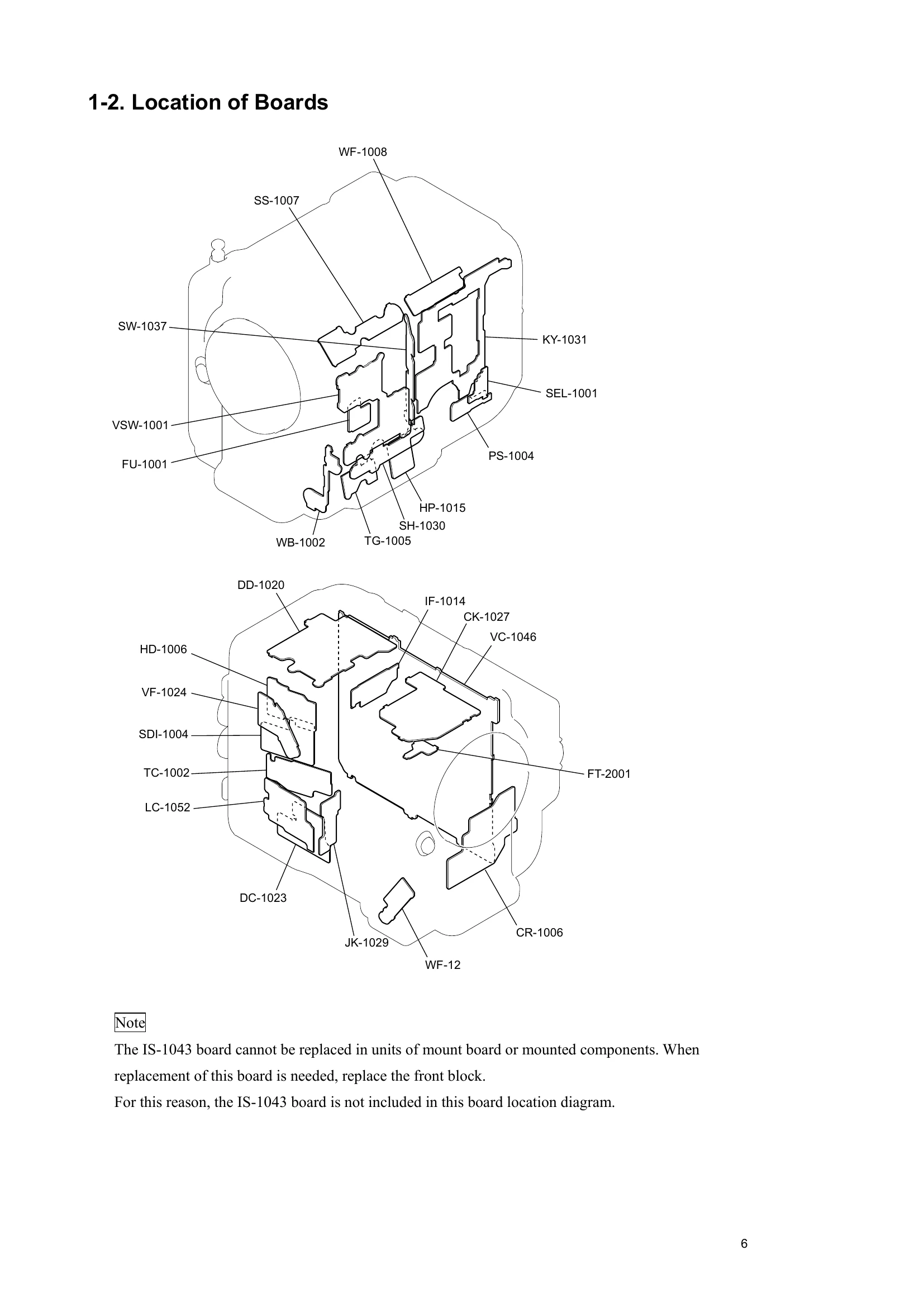

Troubleshooting and error codes
| Error code | Description | Check and Action |
|---|---|---|
| E12-001 | CMR failure | Check: ND unit, IC6502 (CR-1006 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, CR-1006 board, ND unit. |
| E12-002 | Abnormal temperature due to disconnection or short-circuit of the thermistor for CMR | Check: ND unit, IC6502 (CR-1006 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, CR-1006 board, ND unit. |
| E12-003 | Electric insertion or removal error of CMR | Check: ND unit, IC6502 (CR-1006 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, CR-1006 board, ND unit. |
| E12-004 | CMR position detection PI error | Check: ND unit, IC6502 (CR-1006 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, CR-1006 board, ND unit. |
| E91-195 | Communication error from IC2000 (VC-1046 board) to IC0500 (KY-1031 board) | Check: IC2000 (VC-1046 board), IC0500 (KY-1031 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, KY-1031 board. |
| E91-2A5 | Communication error from IC2000 (VC-1046 board) to IC0700 (VC-1046 board) | Check: IC2000, IC0700 (VC-1046 board) and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E91-350 | Communication error from IC1000 (VC-1046 board) to IC8000 (VC-1046 board) | Check: IC1000, IC8000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E91-370 | Communication error from IC1000 (VC-1046 board) to IC8000 (VC-1046 board) | Check: IC1000, IC8000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E91-377 | Memory failure in IC8000 (VC-1046 board) | Check: IC8000 (VC-1046 board) and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E91-380 | Communication error between IC1000 (VC-1046 board) and IC0301 (KY-1031 board) | Check: IC1000 (VC-1046 board), IC0301 (KY-1031 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the KY-1031 board, VC-1046 board. |
| E91-3C0 | Communication error between IC8000 (VC-1046 board) and IC6004 (SDI-1004 board) | Check: IC8000 (VC-1046 board), IC6004 (SDI-1004 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the SDI-1004 board, VC-1046 board. |
| E91-3EC | Communication error from IC1000 (VC-1046 board) to IC6015 (IS-1043 board) | Check: IC1000 (VC-1046 board), IC6015 (IS-1043 board), and the peripheral devices. Action: Repair or replace the front block, VC-1046 board. |
| E91-623 | Communication error between IC6502 (CR-1006 board) and IC1000 (VC-1046 board) | Check: ND unit, IC6502 (CR-1006 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, CR-1006 board, ND unit. |
| E91-627 | Failure in downloading program of IC6502 (CR-1006 board) from IC1000 (VC-1046 board) | Check: ND unit, IC6502 (CR-1006 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board, CR-1006 board, ND unit. |
| E91-645 | Communication error from IC1000 (VC-1046 board) to IC0900 (VC-1046 board) | Check: IC1000, IC0900 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E91-685 | Communication error from IC1000 (VC-1046 board) to IC9301 (VC-1046 board) | Check: IC1000, IC9301 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E91-6F0 | Communication error from IC1000 (VC-1046 board) to SE3000 (CR-1006 board) | Check: IC1000 (VC-1046 board), SE3000 (CR-1006 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the CR-1006 board, VC-1046 board. |
| E92-302 | Communication error from IC1000 (VC-1046 board) to IC9451 (VC-1046 board) | Check: IC1000, IC9451 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E95-125 | Recording stopped | Check: IC1000, IC2000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E95-311 | Device failure in IC1000 (VC-1046 board) | Check: IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E95-312 | Communication error from IC6015 (IS-1043 board) to IC1000 (VC-1046 board) | Check: IC6015 (IS-1043 board), IC1000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the front block, VC-1046 board. |
| E95-315 | Communication error from IC1000 (VC-1046 board) to IC8000 (VC-1046 board) | Check: IC1000, IC8000 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
| E95-318 | Communication error from IC8000 (VC-1046 board) to IC9100 (VC-1046 board) | Check: IC8000, IC9100 (VC-1046 board), and the peripheral devices. Action: • Replace the flexible flat cables, flexible boards, and harnesses that connect the boards. • Repair or replace the VC-1046 board. |
