Warranty Information

The warranty period for parts and consumables like the fan and battery is approximately 5 years under normal operating conditions.

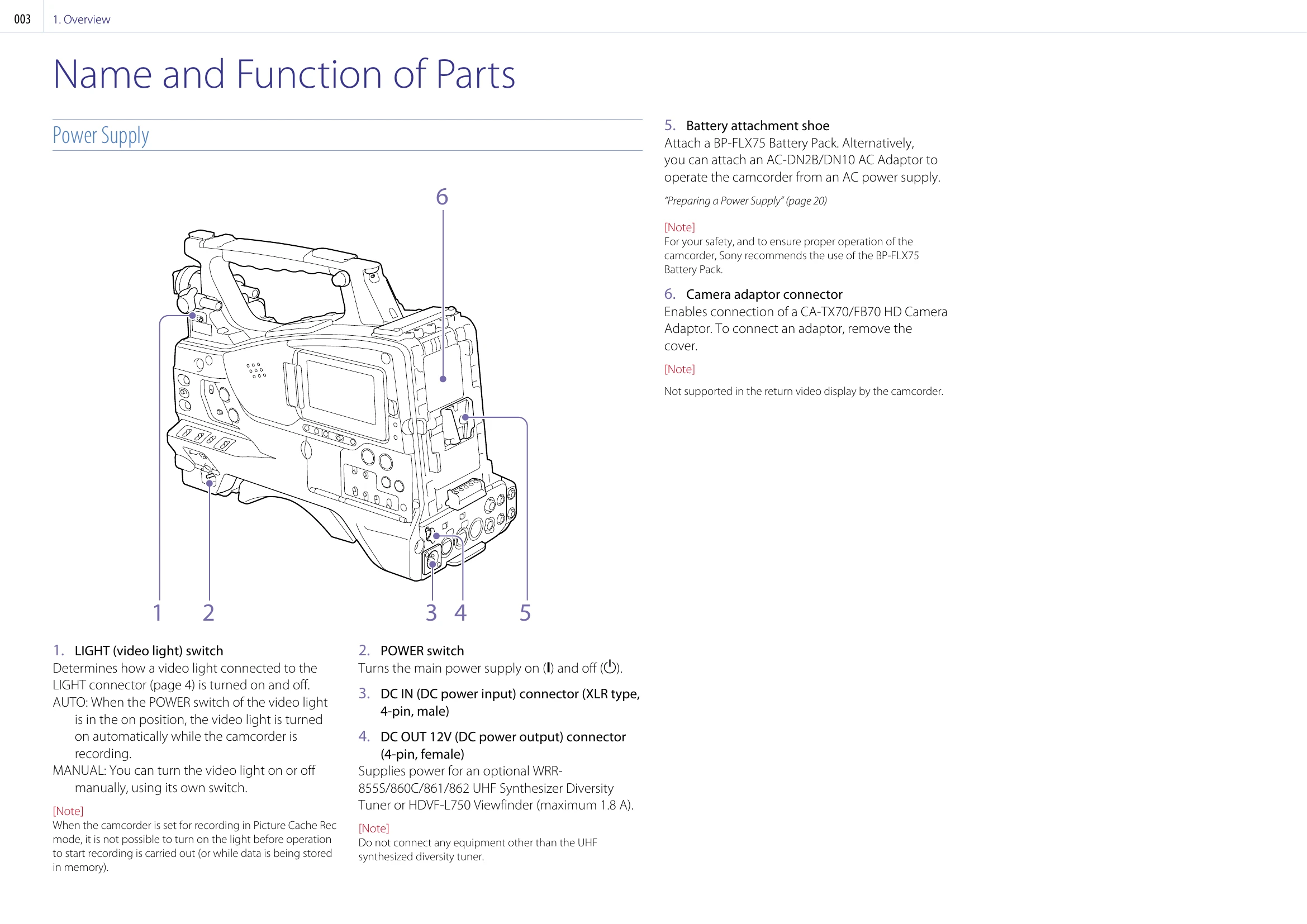

Powering the Camcorder

  • Use the BP-FLX75 Battery Pack or AC-DN2B/DN10 AC Adaptor.
  • To attach a battery pack, align the lines and slide down until it locks. Pull up to detach.
  • To use AC power, mount the adaptor and connect to the AC supply.

Attaching a Viewfinder

  • Power off the camcorder before attaching.
  • Couple the viewfinder connector to the camcorder's VF connector (26-pin). Ensure a firm connection.
  • Adjust the diopter for a sharp image.
  • Adjust brightness, contrast, and peaking using respective knobs.
  • Loosen positioning levers and knobs, slide the viewfinder assembly forward, and secure.

Controls Overview

  • Familiarize yourself with buttons like REC START, SHUTTER, FILTER knob, MENU knob, ASSIGN. switches, GAIN switch, and OUTPUT/DCC switch.
  • Monitor audio using the MONITOR knobs and AUDIO MONITOR SELECTION switches.
  • Utilize the LCD monitor side controls for playback, display settings, and adjustments.
