Parts/Service for PCV-MXS10

Parts/Service for PCV-MXS10

Brand: SONY

Category: Computer

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 6:32 p.m.

Manual Publish Date: 2005-02-09

Warranty Information

None

  • 1. OPERATION: This section covers the basic operation of the device.

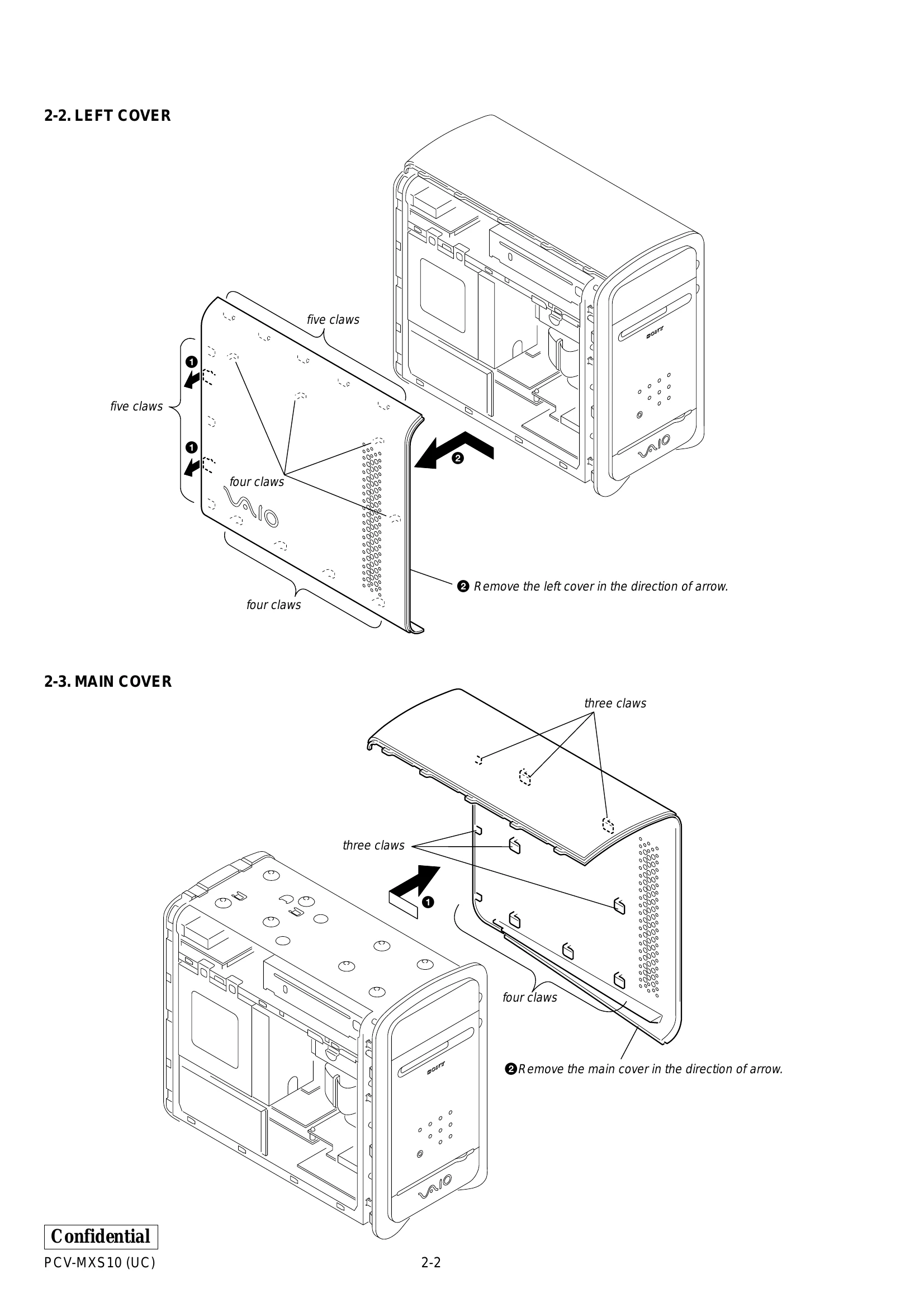

  • 2. DISASSEMBLY: Provides a flowchart and detailed steps for disassembling various components of the PCV-MXS10. This includes the left cover, main cover, front panel, rear panel, and internal components like drives, power unit, motherboard, CPU, and memory.
  • 3. PROGRAMS FOR SERVICE: Details the service diagnostics program, including an overview, how to start the PC-Doctor, and how to start the video diagnostics. It also explains how to interpret test results.
  • 4. SERVICE INFORMATION: Provides specific service information, such as jumper settings for the hard disk drive.
  • 5. FRAME HARNESS: Lists connectors on the motherboard and provides a frame harness diagram, showing how various components are connected.
  • 6. EXPLODED VIEW: Presents exploded views and parts lists for the main section, speaker section, and accessories, aiding in identification and replacement of parts.

Troubleshooting and error codes

Part No. Maker Code Capacity (formatted) Memo
A-8058-425-A Seagate ST380020A 80 GB Master/Slave selection Jumper setting
