Brand: SONY
Category: Computer
Document Type: Parts/Service
Language: EN
Parts/Service for SVE171 Series
Uploaded: Nov. 21, 2025, 9:13 p.m.
Manual Publish Date: 2013-01-25
Warranty Information
None
- Service and Inspection Precautions:
- Observe all precautionary markings and instructions.
- Use only designated parts.
- Follow original design for mounting and wiring.
- Inspect after service to ensure correct reassembly and no damage.
- Handle chip components carefully, noting tantalum capacitor polarity.
- Handle flexible printed boards with care, using appropriate soldering temperatures and avoiding multiple applications to the same pattern.
- Handle hard disk drives with care due to vibration sensitivity.
- Key Sections:

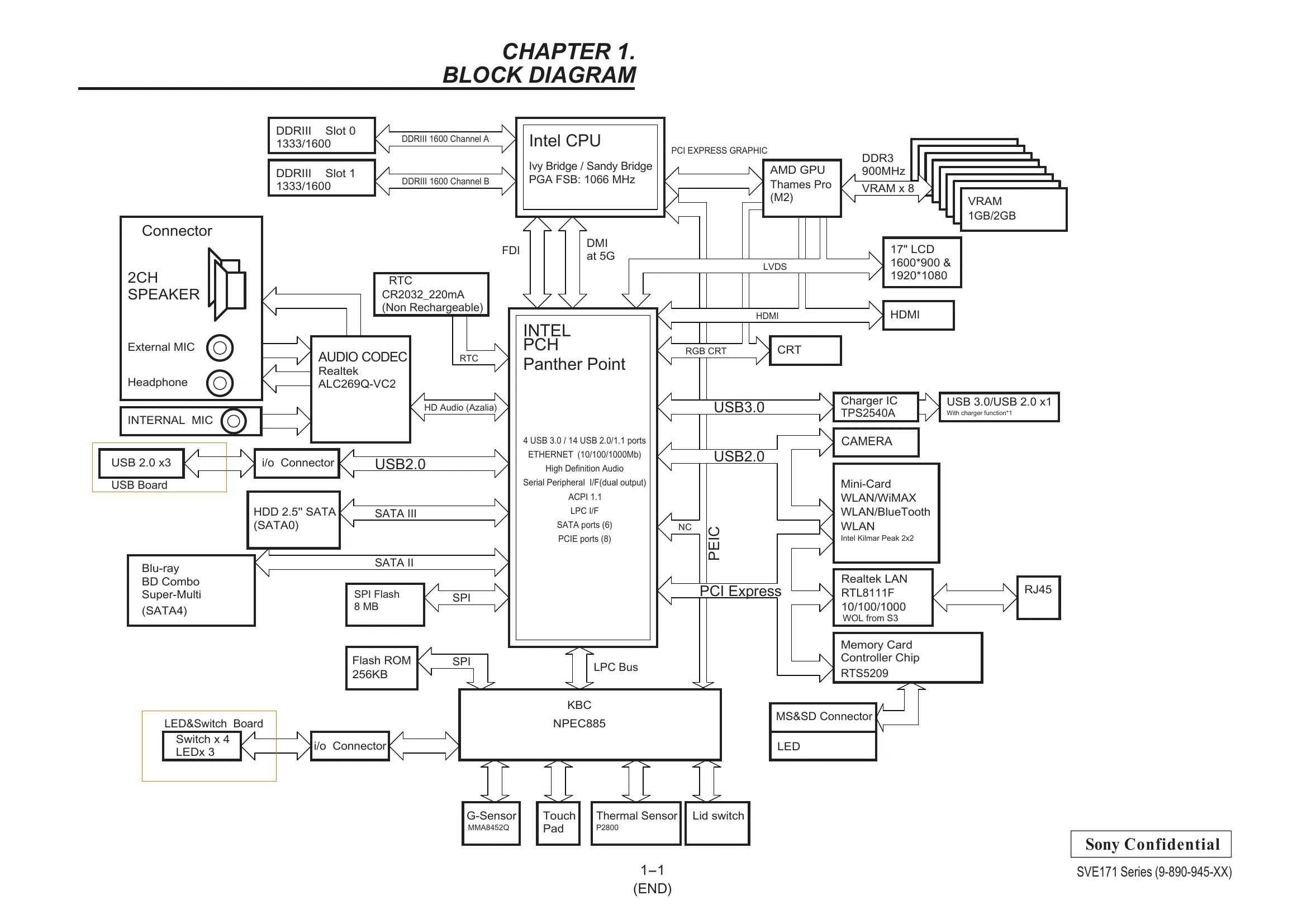

- Chapter 1: Block Diagram - Provides an overview of the system's interconnected components.
- Chapter 2: Frame Harness Diagram - Illustrates the wiring and connections within the device.
- Chapter 3: Exploded Views - Details various parts of the computer with visual breakdowns (Screws, Palmrest, Main Board, Bottom, Optical Drive, HDD, LCD, Accessories).
- Chapter 4: Others - Includes specific procedures like CPU replacement.
