Brand: SONY
Category: TV
Document Type: Manual
Language: EN
Manual for KZ-32TS1E
Uploaded: Nov. 21, 2025, 8:28 p.m.
Manual Publish Date: 2002-05-01
Warranty Information
The manual provides detailed service information and does not contain warranty details.
- Safety Check-Out: Perform these checks after service before releasing the set to the customer. This includes checking solder connections, wiring, replaced parts, line cords, B+ and HV values, and AC leakage.
- Leakage Test: The AC leakage from any exposed metal part to earth ground or other exposed metal parts must not exceed 0.5 mA. Three methods are described for measurement.
- Service Mode: Access hidden menus by entering a pass code (Standby: 5 -> Vol+ -> Power ON). This mode allows for adjustments like A/D Converter Calibration, White Balance, and Sub-color/Sub-hue.

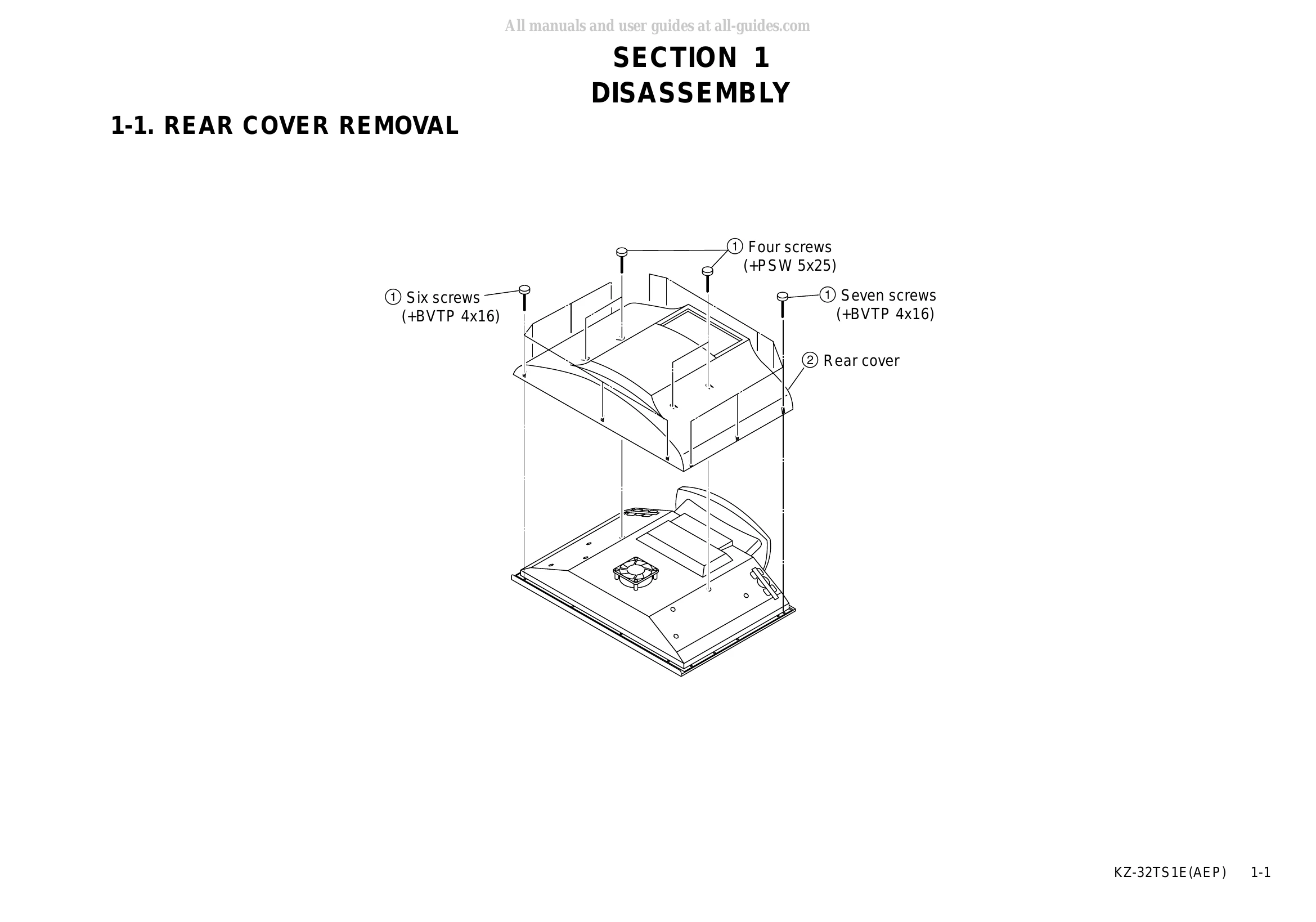

- Disassembly: The manual details procedures for removing the rear cover, main shield, stand assembly, and various internal boards (Q, B, TU, H1, H2) before accessing the plasma display panel.
- Diagrams: Block diagrams and schematic diagrams for various boards are provided for service reference.
- Exploded Views: Visual breakdowns of the TV's components to aid in part identification and assembly/disassembly.
- Electrical Parts List: A comprehensive list of electronic components with their part numbers, descriptions, and specifications.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Refer to the full manual for detailed troubleshooting information. | The provided pages do not contain a dedicated troubleshooting table. | Specific issues may be addressed within the service and adjustment sections. |
