Manual for CCD-PC1

Features

• Wide-angle lens and high resolution CCD imager (270,000 pixels) for wide views with high resolution.
• Compact design and flexible arm for versatile shooting positions.
• Manual focus for sharp images from less than half inch (10mm) to infinity.
• Manual iris for good image in various lighting.
• Rotating camera head for flexible picture angles.

Connections

Connect to a personal computer, TV, or VCR with audio/video input. S-Video cable is recommended for higher picture quality if your equipment has an S-Video input.

• Connect to S-VIDEO input using an S-Video cable (not supplied) for better video quality.
• Connect to VIDEO (yellow) and AUDIO (black) inputs using the supplied audio/video cable.
• Connect the AC power adapter to the DC IN jack and then to an AC outlet.

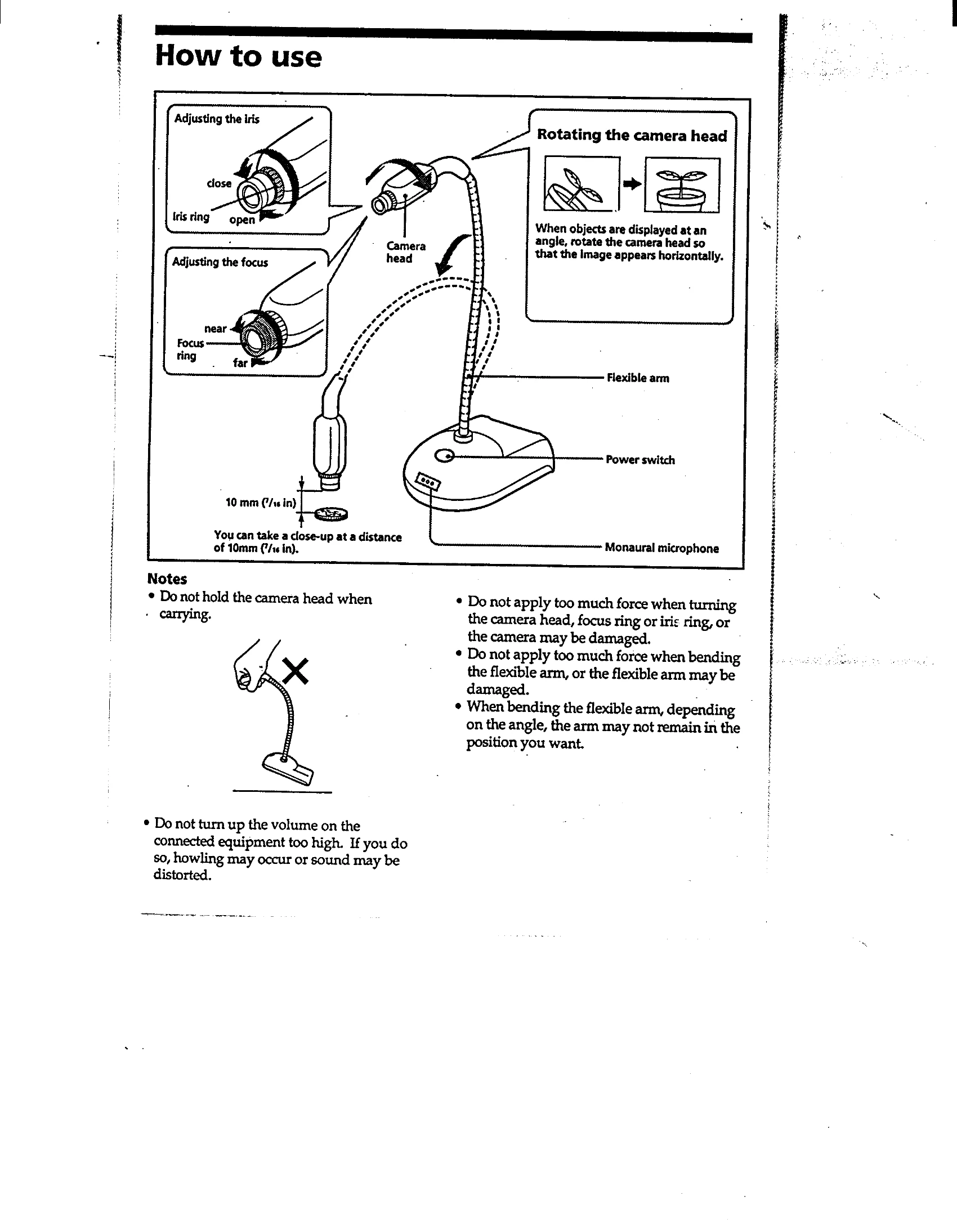

How to use

• Adjust the iris using the iris ring (open/close).
• Adjust the focus using the focus ring (near/far). You can take close-ups at a distance of 10mm (7/16 in).
• Rotate the camera head to ensure horizontal images when objects are displayed at an angle.
• Use the flexible arm to position the camera.
• Turn the unit on/off using the power switch.

Precautions

• Do not expose the unit to rain or moisture.
• If the light exceeds the illumination range, the image may not be displayed clearly.
• Do not focus on a stationary or bright object for too long, as the color filter may be damaged.
• Be mindful of copyright laws when recording or storing materials.

Maintenance

• Clean the lens with a blower brush and a soft cloth for fingerprints.
• Clean the camera body with a dry soft cloth or one lightly moistened with a mild detergent solution.
• Do not use solvents that may damage the finish.

Troubleshooting

• If the picture does not appear, check connections and try connecting to other equipment.
• For picture and sound quality issues on computers, consult your computer retailer.
• For strong sound beats, turn down volume, move the camera away from speakers, and change microphone direction.

Specifications

Details on video signal, image device, lens, illumination, white balance, shutter, focus, power requirements, outputs, operating and storage temperatures, dimensions, and mass are provided.
