Warranty Information
Sony is not liable for damages, including loss of profits, due to unit failure.

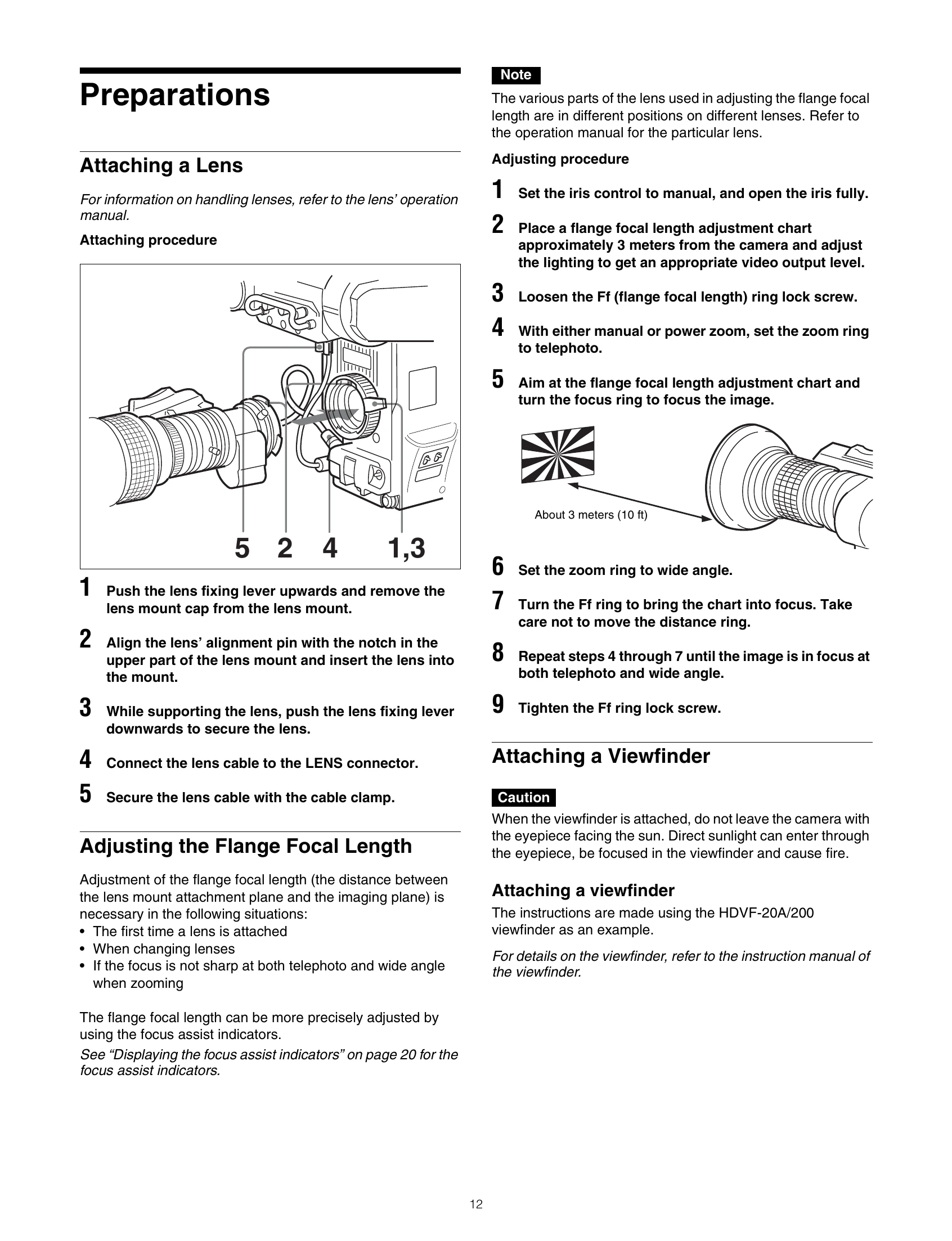

- **Attaching a Lens:** Push lens fixing lever upwards, align lens pin with notch, insert lens, push lever down, connect lens cable, secure cable clamp.
- **Attaching a Viewfinder:** Slide viewfinder, loosen left-right positioning ring, slide side-to-side, tighten ring, connect viewfinder cable to VF connector, connect microphone cable to MIC 1 IN.
- **Adjusting Viewfinder Position:** Loosen front-rear positioning lever and lock knob, slide viewfinder forward/backward, tighten lever and knob.
- **Attaching Cable Clamp Belt:** Insert belt bracket into hole, remove screws, secure belt with screws, bundle cable, lock buckle, adjust length.
- **Adjusting Shoulder Pad:** Raise lever, slide pad backward/forward, move lever to lock.
- **Mounting to Tripod:** Attach tripod attachment with screw, place camera, slide forward until click, verify secure attachment.
