Overview: The HDC3100/3170 are color cameras featuring a newly developed 2/3 inch CMOS sensor with global shutter, offering high sensitivity and a high signal-to-noise ratio. The HDC3100 operates as a studio camera when connected to an HDCU3100, HDCU3170, or HDCU2000-series CCU via fiber cable. The HDC3170 operates as a studio camera when connected to an HDCU3170 via triax cable.

Preparations: This section covers attaching a lens, adjusting the flange focal length, attaching a viewfinder, the cable clamp belt, shoulder pad, and mounting the camera to a tripod.

Adjustments and Settings for Shooting: Key adjustments include black balance, white balance, electronic shutter, focus assist functions, and camera outputs. The viewfinder screen also displays status information.

Menu Operations: Menus are operated using the DISPLAY switch and the MENU SEL knob/ENTER button to adjust camera settings.

Selecting Pages: Users can navigate through menu pages using the arrow marker and the MENU SEL knob/ENTER button.

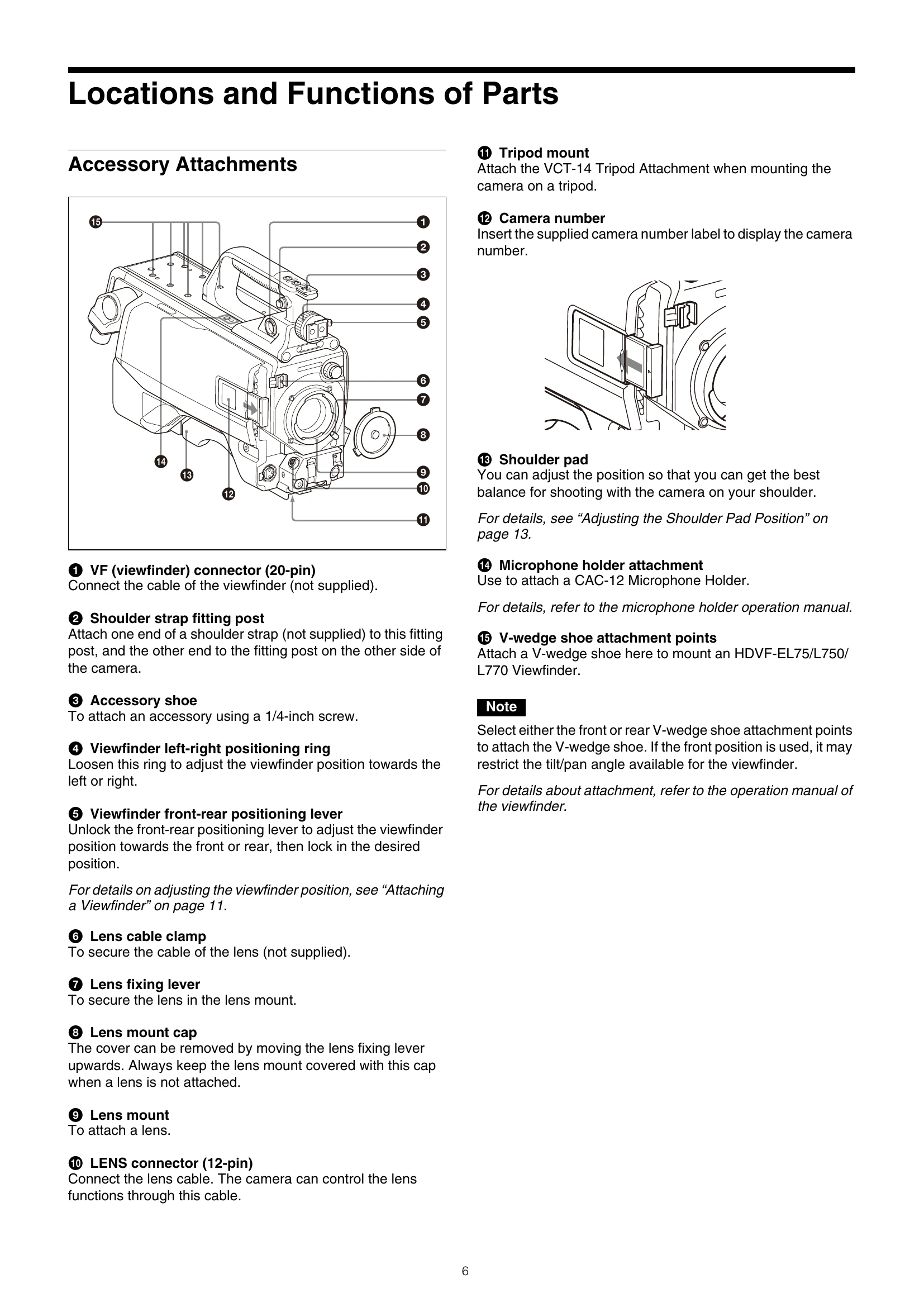

Manual for HDC3100/3170
