Brand: SONY
Category: Video Camera
Document Type: Manual
Language: EN
Manual for HDR-AS100V
Uploaded: Aug. 10, 2025, 12:25 a.m.
Manual Publish Date: 2014-01-01

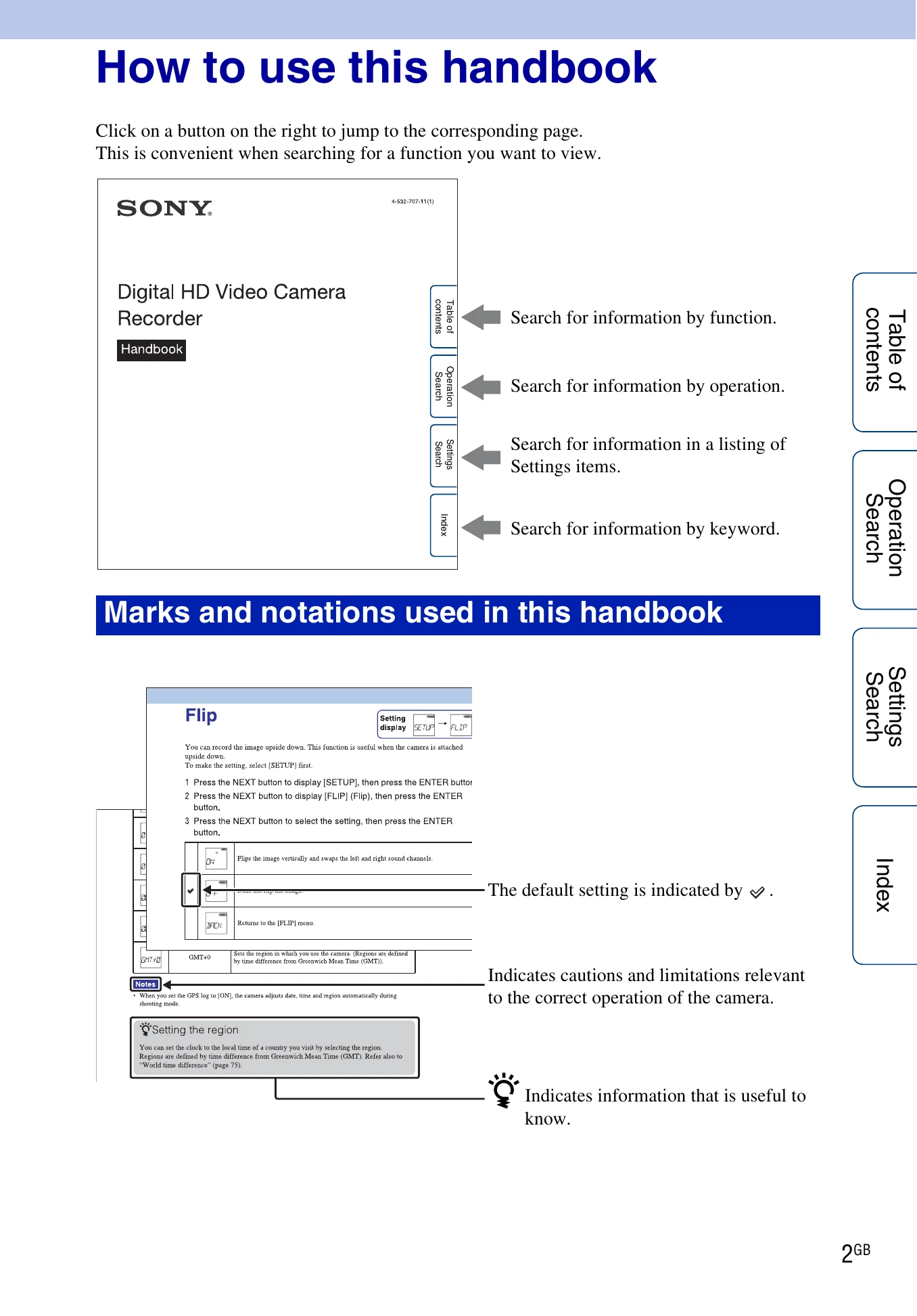

How to use this handbook: Click on a button on the right to jump to the corresponding page. This is convenient when searching for a function you want to view.
Marks and notations used in this handbook:
- A checkmark indicates the default setting.
- A light bulb indicates useful information.
- A caution symbol indicates cautions and limitations relevant to the correct operation of the camera.
- Inserting Battery Pack: Slide the lock lever, open the cover, insert the battery pack correctly, then close the cover.
- Inserting Memory Card: Slide the lock lever, open the cover, insert the memory card until it clicks, then close the cover.
- Charging the Battery Pack: Turn off the camera, connect to a powered-on computer via micro USB cable. The REC/access/CHG lamp turns amber. Charging is complete when the lamp turns off.
- Setting Date & Time: Navigate to SETUP > CONFG > DATE to set the year, month, day, time, and region.
Troubleshooting and error codes
| Message | Instructions |
|---|---|
| ERROR | Turn the power off and then on again. |
| HEAT | The camera temperature has risen. Leave the camera in a cool location until the temperature goes down. If recording for extended periods, stop recording. |
| NoIMG | The memory card does not contain playable images. |
| LowPw | There is no remaining battery charge. |
| BATT | Battery charge is insufficient. Battery pack delivering current exceeding maximum discharge current. Different battery pack detected. Battery pack deterioration detected. |
| FULL | Remaining capacity of the memory card is insufficient for recording. |
| MAX | The maximum number of files that can be recorded has been reached. |
| MEDIA | Memory card not inserted properly. Memory card damaged. Memory card format incompatible. Memory card does not support XAVC S movie recording. |
| NoCRD | There is no memory card inserted. |
| NoDSP | The camera is not connected to a TV when playback is started. |
| PLANE | When airplane mode is set to [ON], GPS and Wi-Fi cannot be used. |
