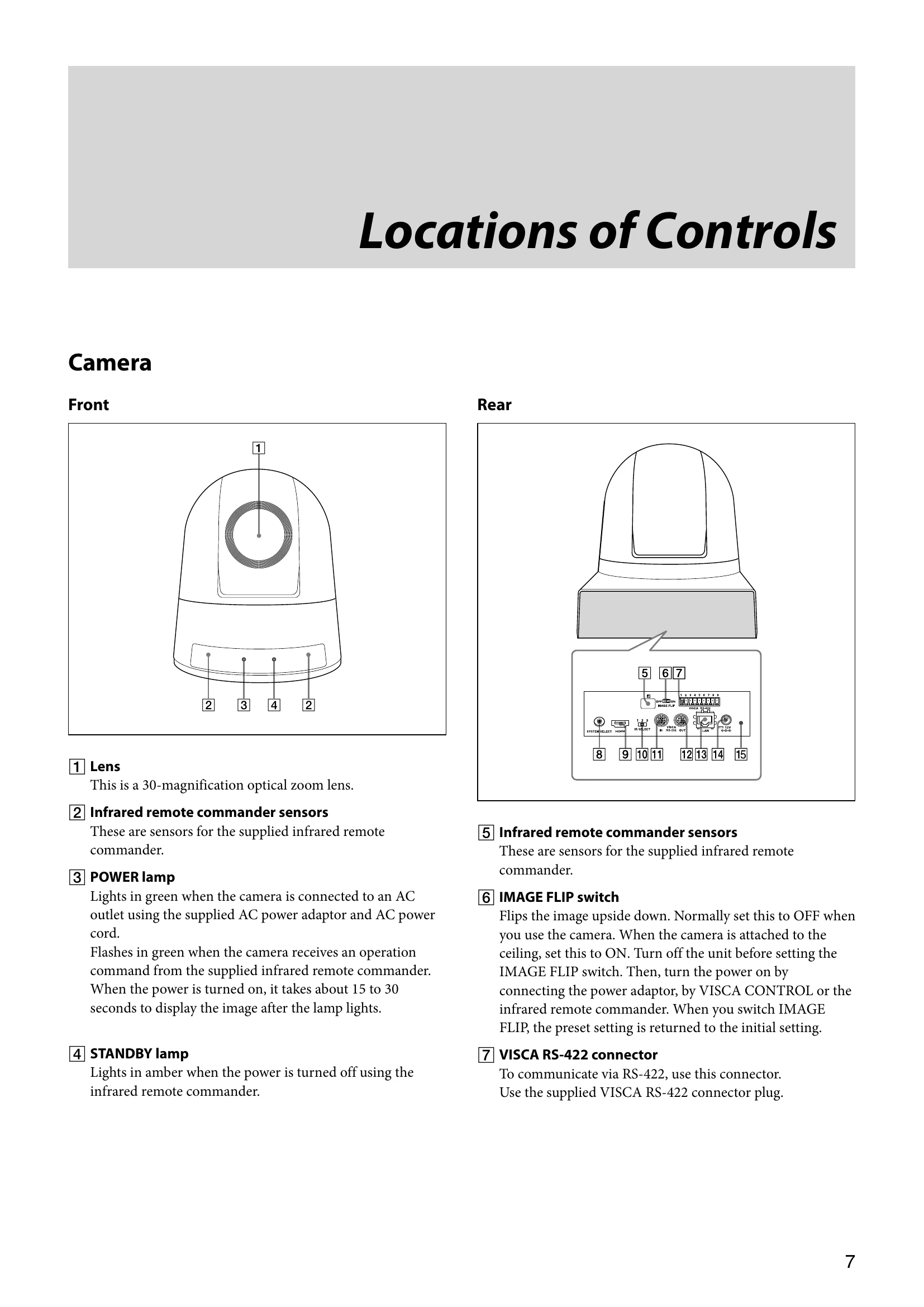

Manual for SRG-300H
Uploaded: Aug. 10, 2025, 12:24 a.m.
Warranty Information
No warranty information found in the provided document.
- Features: High-definition shooting with 1/2.8 type Exmor CMOS sensor, 30x optical zoom, wide and dynamic range functions, RS-232/RS-422 communication, high-speed and wide range pan/tilt with vertical image flip, infrared remote commander for setting and control, up to 16 preset camera positions, LAN cable for system construction ease, and HD video formats with HDMI interface.
- Connection: Options include HDMI, VISCA RS-232/RS-422, and LAN connections. Ensure correct cable types and avoid simultaneous RS-232 and RS-422 connections.
- System Configuration: The camera can be operated using the supplied infrared remote commander for short-distance control, or with the RM-IP10 IP Remote Controller for pan/tilt, zoom, and preset operations. Multiple cameras can be controlled using multiple IP remote controllers.
- Basic Functions: Covers Zoom (optical and digital), Focus (Auto/Manual modes), White Balance, Automatic Exposure, Wide Dynamic Range, and Noise Reduction.
- Initial Settings and Preset: Allows storing and recalling up to 16 camera shooting conditions, including Pan/Tilt Position, Zoom, Focus, AE Mode, and more.
Troubleshooting and error codes
| Pan/Tilt Status Code List | P | Q | R | S | |
| 0--- | ---1 | A Pan movement all the way to the left | |||
| 0--- | --1- | A Pan movement all the way to the right | |||
| 0--- | -1-- | A Tilt movement all the way up | |||
| 0--- | 1--- | A Tilt movement all the way down | |||
| --00 | --01 | 0--- | Pan movement is correct | ||
| --01 | 0--- | Abnormal pan position detected | |||
| --00 | 0--- | --01 | The Tilt movement is correct | ||
| --01 | 0--- | Abnormal tilt position detected | |||
| 00-- | 0--- | No move request received | |||
| 01-- | 0--- | In the midst of a Pan/Tilt | |||
| 10-- | 0--- | Pan/Tilt completed | |||
| 11-- | 0--- | Pan/Tilt failed | |||
| --00 | 0--- | Not initialized | |||
| --01 | 0--- | Initializing | |||
| --10 | 0--- | Initialization completed | |||
| --11 | 0--- | Initialization failed |
