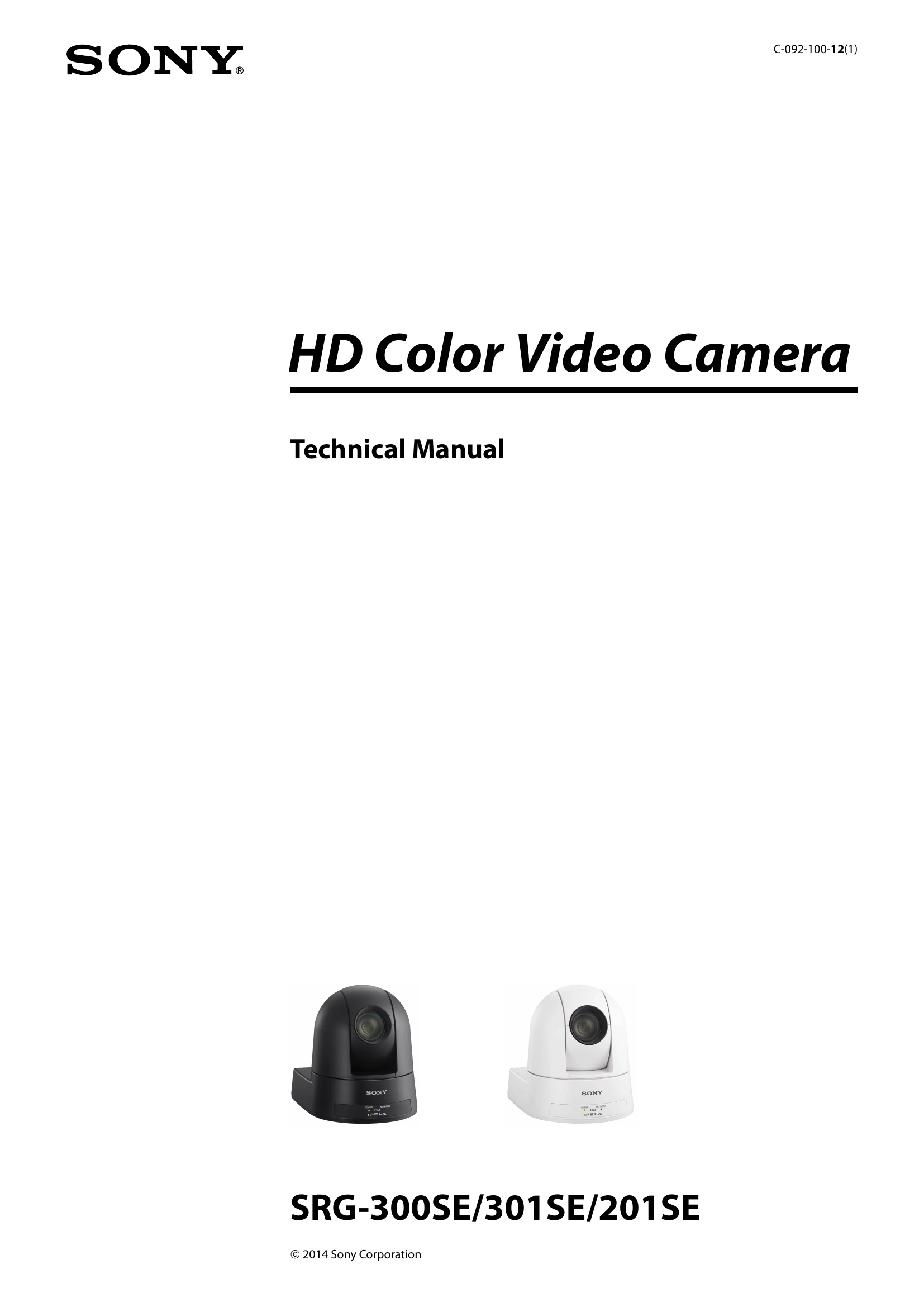

Manual for SRG-300SE/301SE/201SE

Zoom

The SRG cameras offer up to 30x optical zoom combined with digital zoom for up to 360x magnification. The SRG-201SE has 20x optical zoom for up to 240x with digital zoom. Zoom can be controlled via VISCA commands in Standard Mode (variable speed with stop commands) or Direct Mode (quick movement to designated positions).

Focus

Available focus modes include Auto Focus (Normal AF, Interval AF, Zoom Trigger Mode) and Manual Focus (Standard Mode, Variable Mode, One Push Trigger Mode, Infinity Mode, Near Limit Mode). AF sensitivity can be set to Normal or Low.

White Balance

Modes include Auto White Balance, ATW, Indoor, Outdoor, One Push WB, and Manual WB. One Push WB allows manual capture of white color to set the balance.

Exposure

Various AE functions are available: Full Auto, Shutter Priority, Iris Priority, Manual, and Bright. Gain Limit setting is available for improving signal-to-noise ratio. Exposure compensation allows for brightness adjustment.

Other Functions

Features like Wide Dynamic Range (WD), High Resolution Mode, Aperture Control, Back Light Compensation, Noise Reduction, High Sensitivity Mode, Gamma Mode, Image Stabilizer, Auto Slow Shutter, Low-Illumination Chroma Suppress Mode, ICR (IR Cut-Removable) Mode, Color Gain, Color Phase, and Auto ICR Mode enhance image quality and functionality.
