Manual for TimeCutter SS 4225 or MX 5000

Manual for TimeCutter SS 4225 or MX 5000

Brand: TORO

Category: Lawn Mower

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:39 p.m.

Warranty Information

Refer to the enclosed engine owner's manual for emission system maintenance and warranty details.

Before Operation

  • Inspect the machine, area of use, and safety features.
  • Ensure proper fuel is used and handled safely.

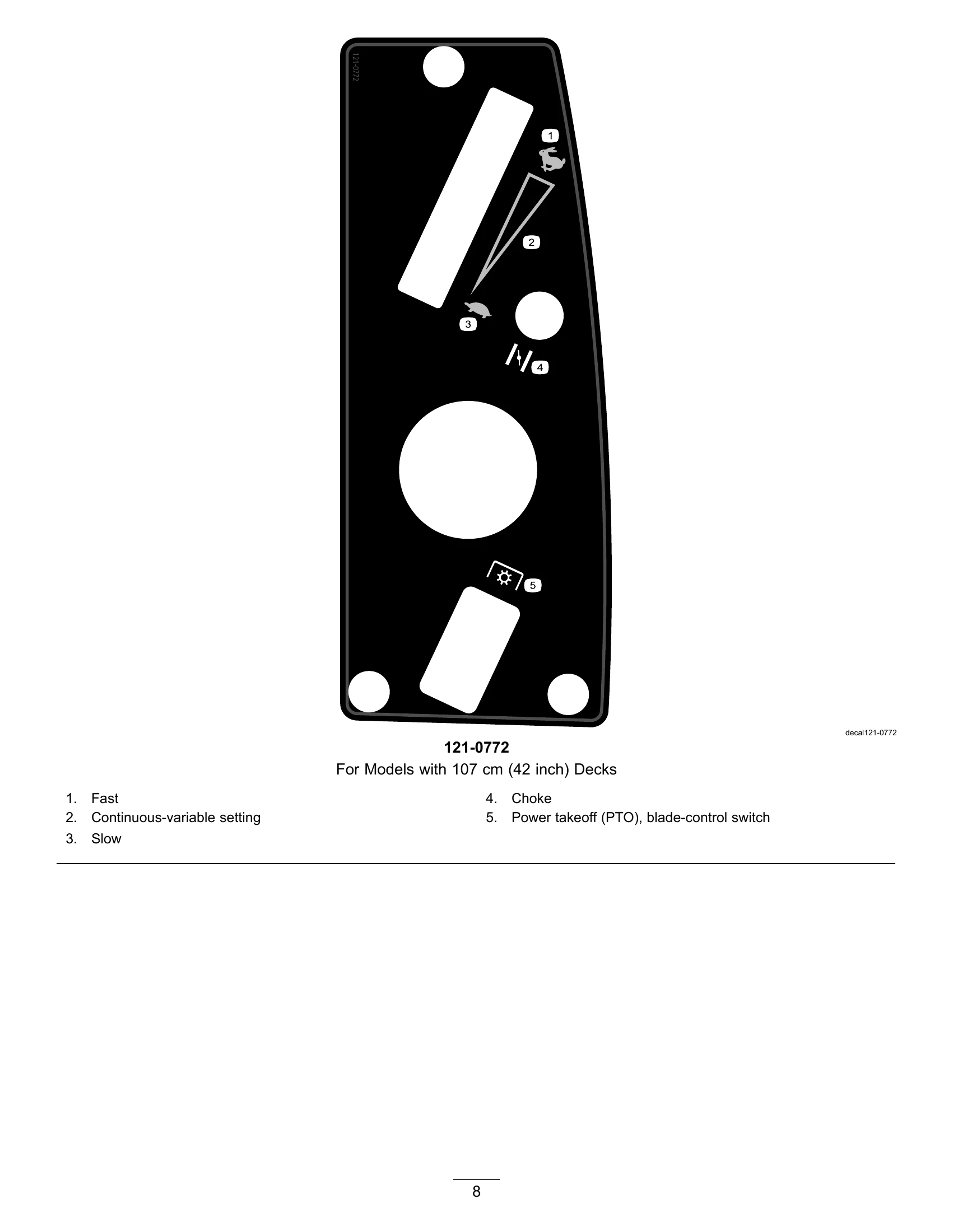

Starting the Engine

  • Follow key switch and choke procedures.
  • Ensure safety interlocks are functional.

During Operation

  • Wear appropriate safety gear.
  • Operate with caution, especially on slopes and near hazards.
  • Follow safe operation procedures for starting, stopping, and maneuvering.

After Operation

  • Stop the machine safely on level ground.
  • Disengage attachments, engage parking brake, shut off engine, and remove key.

Maintenance

  • Refer to the maintenance schedule for regular service.
  • Perform checks and services for engine, fuel, electrical, drive, and belt systems.
  • Clean and store the machine properly.

Troubleshooting and error codes

Problem Possible Cause Corrective Action
The fuel tank is showing signs of collapsing or the machine is frequently showing signs of running out of fuel. 1. The air-cleaner paper element clogged. 1. Clean the paper element.
The engine overheats. 1. The engine load is excessive. 1. Reduce the ground speed.
2. The oil level in the crankcase is low. 2. Add oil to the crankcase.
3. The cooling fins and air passages under the engine-blower housing are plugged. 3. Remove the obstruction from the cooling fins and air passages.
4. The air cleaner is dirty. 4. Clean or replace the air-cleaner element.
5. Dirt, water, or stale fuel is in the fuel system. 5. Contact an Authorized Service Dealer
The starter does not crank. 1. The blade-control switch is engaged. 1. Disengage the blade-control switch.
2. The motion-control levers are not in the PARK position. 2. Move the motion-control levers outward to the PARK position.
3. The battery is dead. 3. Charge the battery.
4. The electrical connections are corroded or loose. 4. Check the electrical connections for good contact.
5. A fuse is blown. 5. Replace the fuse.
6. A relay or switch is damaged. 6. Contact an Authorized Service Dealer.
The engine does not start, starts hard, or fails to keep running. 1. The fuel tank is empty. 1. Fill the fuel tank.
2. The choke (if applicable) is not on. 2. Move the choke lever to the ON position.
3. The air cleaner is dirty. 3. Clean or replace the air-cleaner element.
4. The spark-plug wire(s) is loose or disconnected. 4. Install the wire(s) on the spark plug.
5. The spark plug(s) is pitted, fouled, or the gap is incorrect. 5. Install a new, correctly gapped spark plug(s).
6. There is dirt in fuel filter. 6. Replace the fuel filter.
7. Dirt, water, or stale fuel is in fuel system. 7. Contact an Authorized Service Dealer.
8. There is incorrect fuel in the fuel tank. 8. Drain the tank and replace the fuel with the proper type.
9. The oil level in the crankcase is low. 9. Add oil to the crankcase.
The engine loses power. 1. The engine load is excessive. 1. Reduce the ground speed.
2. The air cleaner is dirty. 2. Clean the air-cleaner element.
3. The oil level in the crankcase is low. 3. Add oil to the crankcase.
4. The cooling fins and air passages under the engine blower housing are plugged. 4. Remove the obstruction from the cooling fins and air passages.
5. The spark plug(s) is pitted, fouled, or the gap is incorrect. 5. Install a new, correctly gapped spark plug(s).
6. The fuel-tank vent is blocked. 6. Contact an Authorized Service Dealer.
7. There is dirt in the fuel filter. 7. Replace the fuel filter.
8. Dirt, water, or stale fuel is in the fuel system. 8. Contact an Authorized Service Dealer.
9. There is incorrect fuel in the fuel tank. 9. Drain the tank and replace the fuel with the proper type.
The machine does not drive. 1. The bypass valves are open. 1. Close the tow valves.
2. The traction belts are worn, loose, or broken. 2. Contact an Authorized Service Dealer.
3. The traction belts are off the pulleys. 3. Contact an Authorized Service Dealer.
4. The transmission has failed. 4. Contact an Authorized Service Dealer.
The machine vibrates abnormally. 1. The cutting blade(s) is/are bent or unbalanced. 1. Install new cutting blade(s).
2. The blade mounting bolt is loose. 2. Tighten the blade mounting bolt.
3. The engine mounting bolts are loose. 3. Tighten the engine mounting bolts.
4. The engine pulley, idler pulley, or blade pulley is loose. 4. Tighten the appropriate pulley.
5. The engine pulley is damaged. 5. Contact an Authorized Service Dealer.
6. The blade spindle is bent. 6. Contact an Authorized Service Dealer.
7. The motor mount is loose or worn. 7. Contact an Authorized Service Dealer.
The cutting height is uneven. 1. The blade(s) is not sharp. 1. Sharpen the blade(s).
2. A cutting blade(s) is/are bent. 2. Install a new cutting blade(s).
3. The mower is not level. 3. Level the mower from side-to-side and front-to-rear.
4. An anti-scalp roller (if applicable) is not set correctly. 4. Adjust the anti-scalp wheel height.
5. The underside of the mower deck is dirty. 5. Clean the underside of the mower deck.
6. The tire pressure is incorrect. 6. Adjust the tire pressure.
7. A blade spindle is bent. 7. Contact an Authorized Service Dealer.
The blades do not rotate. 1. The drive belt is worn, loose or broken. 1. Install a new drive belt.
2. The drive belt is off of the pulley. 2. Install the drive belt and check the adjusting shafts and belt guides for the correct position.
3. The power-takeoff (PTO) switch or PTO clutch is faulty. 3. Contact an Authorized Service Dealer.
4. The mower belt is worn, loose, or broken. 4. Install a new mower belt.
