Brand: TORO
Category: Lawn Mower
Document Type: Manual
Language: EN

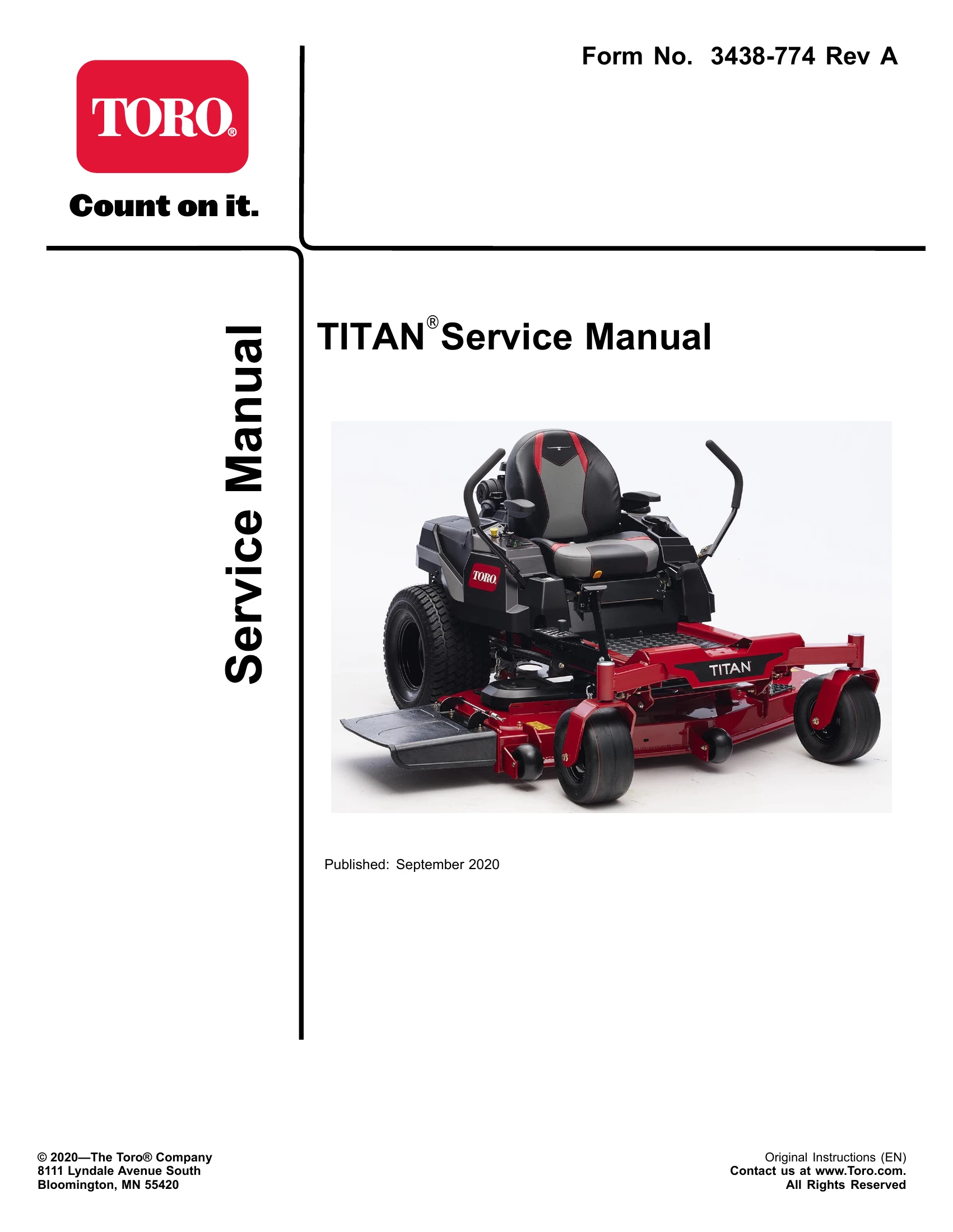

Manual for TITAN
Uploaded: Nov. 21, 2025, 9:25 p.m.
Manual Publish Date: 2020-09-01
Safe Operation of the Toro Titan Mower
- Before Starting: Always ensure safety equipment is in place, check for obstructions, and be aware of bystanders.
- Engine Operation: Never operate in a confined area without ventilation. Avoid touching hot components.
- Fuel Handling: Use extreme care with flammable fuel. Extinguish all ignition sources and store fuel properly.
- Moving Parts: Stay clear of all moving parts when the engine is running.
- Electrical System: Avoid touching electrical wires while the engine is running. De-energize for repairs.
- Hydraulic System: Release pressure before working on the system. Never use hands to search for leaks.
- Personal Protective Equipment (PPE): Wear appropriate PPE for the work environment.
- Tools: Use only properly maintained tools suitable for the task.
- Lifts, Hoists, Jacks: Use according to manufacturer instructions and ensure they are rated for the machine's weight.
- Fire Extinguishers: Keep appropriate fire extinguishers readily available and know how to use them.
Troubleshooting and error codes
Troubleshooting information is organized by system and symptoms, with a focus on the GEARS (Gather Information, Evaluate Potential Causes, Assess Performance, Repair, Solution Confirmation) systematic approach.
| Symptom | Possible Cause | Corrective Action |
|---|---|---|
| Engine Will Not Crank/Start | Low battery charge | Check and charge battery. |
| Blown fuse | Inspect and replace fuse if necessary. | |
| Faulty ignition switch | Test ignition switch continuity. | |
| Neutral switch malfunction | Test neutral switch continuity. | |
| Parking brake switch malfunction | Test parking brake switch continuity. | |
| PTO Clutch Not Engaging | Blown fuse | Inspect and replace fuse if necessary. |
| Faulty PTO switch | Test PTO switch continuity. | |
| Damaged PTO clutch coil | Measure PTO clutch coil resistance. | |
| Wiring issue | Check all wiring connections. |
