Brand: TOSHIBA
Category: DVD Player
Document Type: Parts/Service
Language: EN
Parts/Service for SD-43HKSE
Uploaded: Nov. 21, 2025, 8:18 p.m.
Manual Publish Date: 2003-04-01

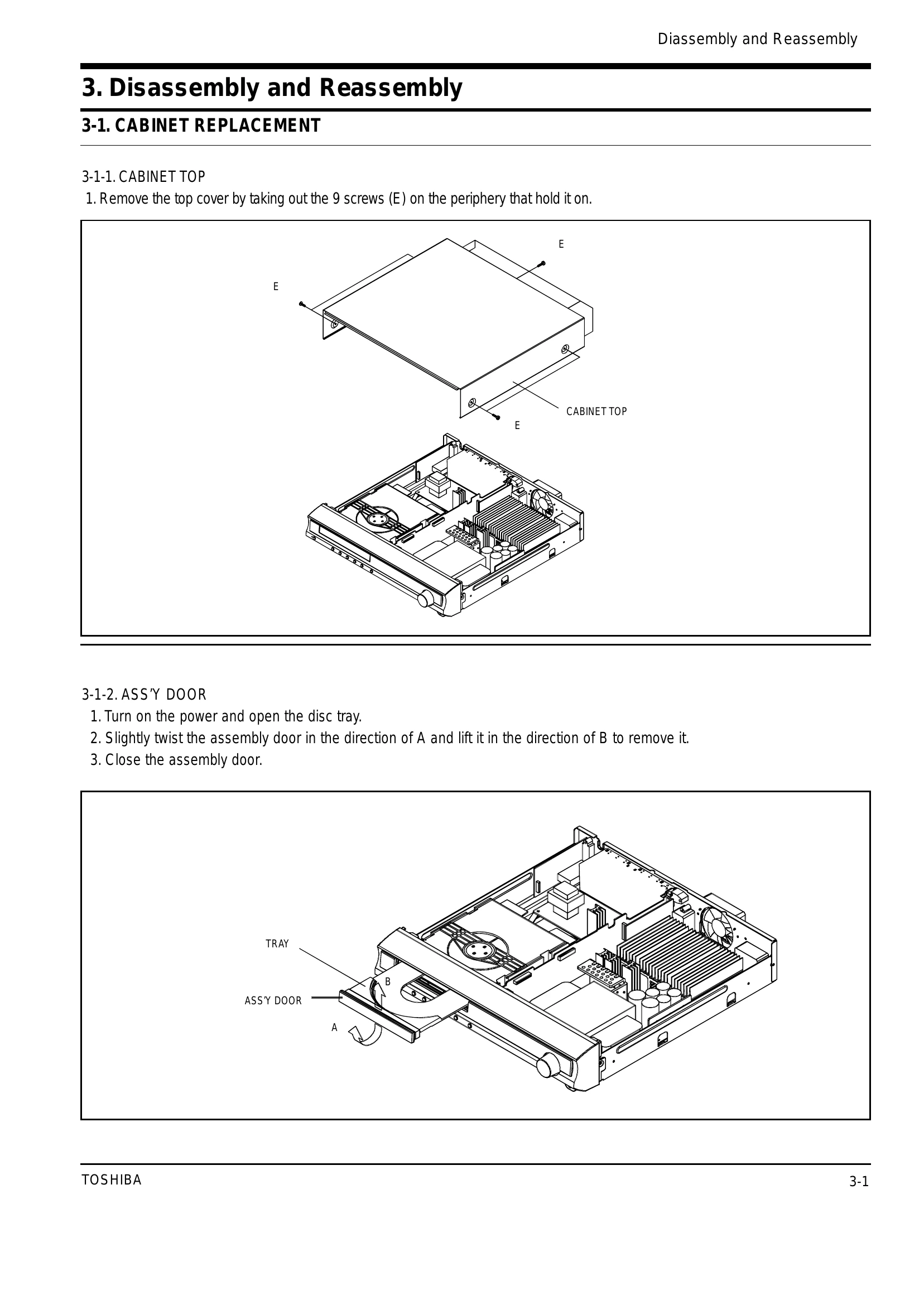

The manual details servicing procedures for the Toshiba SD-43HKSB/SD-43HKSE DVD Home Theater System. It covers alignment and adjustments, exploded views, disassembly and reassembly, electrical parts lists, block diagrams, PCB diagrams, wiring diagrams, schematic diagrams, IC block diagrams, and troubleshooting. Key sections include safety precautions like laser beam caution and leakage current checks. Detailed steps are provided for replacing various components such as cabinets, PCBs, and internal parts, along with comprehensive schematic diagrams of different system sections like Main, Front & Power, DSP, Jack (SCART), and DVD Pack.
Troubleshooting and error codes
| Symptom | Possible Cause | Remedy |
|---|---|---|
| No Sound Output | Speaker wires disconnected or faulty. | Check speaker connections and wire integrity. Replace if damaged. |
| No Picture Display | HDMI or AV cable disconnected or faulty. | Ensure cables are securely connected and undamaged. Try a different cable. |
| Disc Not Reading | Disc is dirty, scratched, or unreadable format. | Clean the disc. Ensure the disc is in a compatible format (e.g., DVD, CD). |
| Remote Control Not Working | Batteries are low or absent. Remote control is faulty. | Replace batteries. Test remote control with a new set of batteries. If still not working, replace the remote. |
| Unit Won't Power On | Power cord is not plugged in. Fuse is blown. Internal power supply issue. | Check power cord connection. Inspect and replace fuse if necessary. Contact service if power supply is suspected. |
