Brand: TOSHIBA
Category: Other
Document Type: Installation Guide
Language: EN

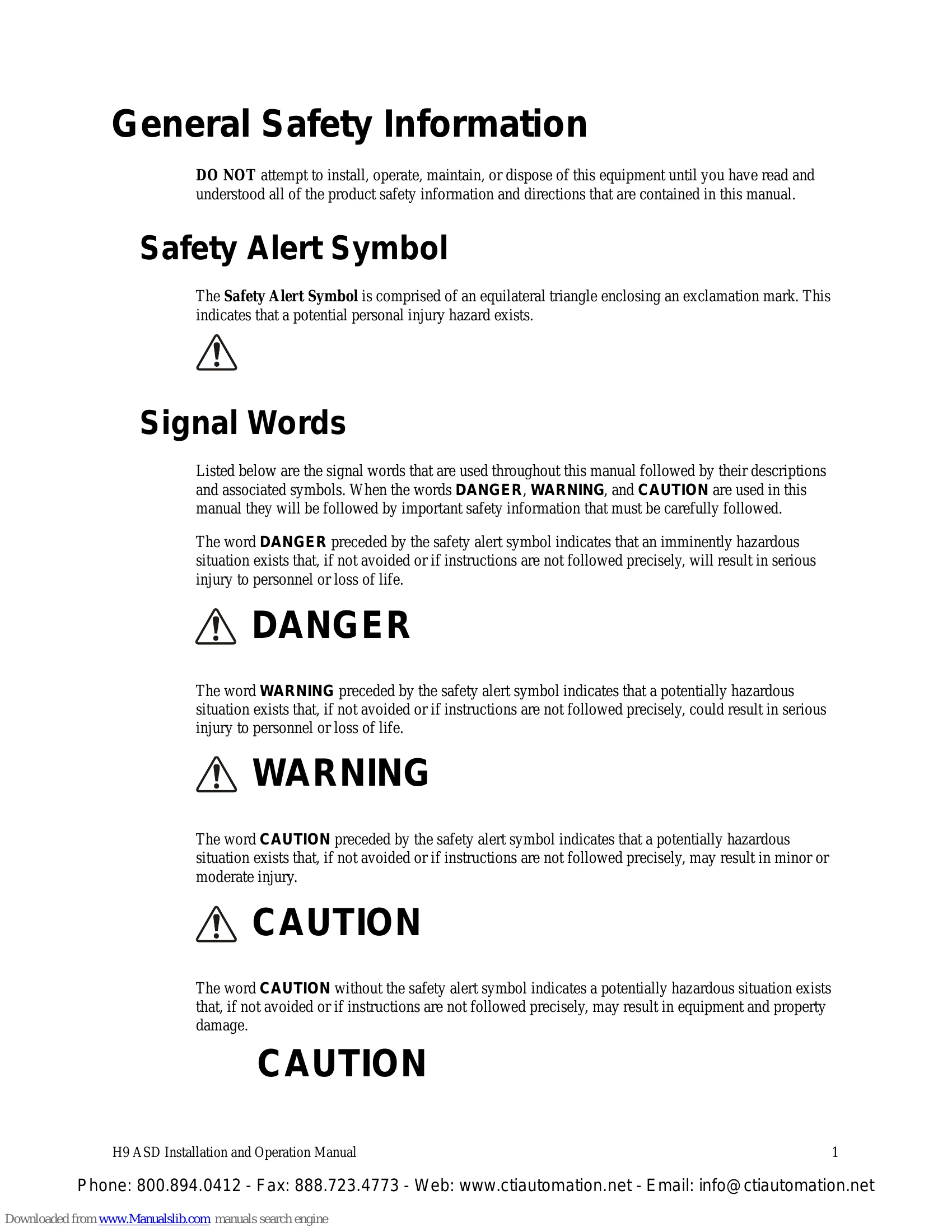

Installation Guide for H9 ASD
Uploaded: Nov. 21, 2025, 7:53 p.m.
Manual Publish Date: 2011-03-01
Warranty Information
The warranty is 12 months from installation, but not exceeding 18 months from the shipping date.
Introduction
The H9 Adjustable Speed Drive (ASD) is a solid-state AC drive featuring Toshiba International Corporation's (TIC) Vector Control Algorithm. This algorithm enables the motor to develop high starting torque and compensate for motor slip, resulting in smooth, quick starts and highly efficient operation.
The ASD uses digitally-controlled pulse width modulation and offers programmable functions accessible via an easy-to-use menu or Direct Access Numbers. Its user-friendly Electronic Operator Interface (EOI) features an easy-to-read LCD screen and a read-only LED screen for enhanced visibility.
The motor control software is menu-driven, providing easy access to motor control parameters and quick changes.
Important Notice
This manual is not intended to cover all details or variations in equipment types. For additional information, contact your TIC Sales Representative.
Unauthorized modifications may void warranties, create safety hazards, or damage equipment.
Misuse of this equipment may result in injury or equipment damage. Toshiba International Corporation is not liable for direct, indirect, special, or consequential damages resulting from misuse.
