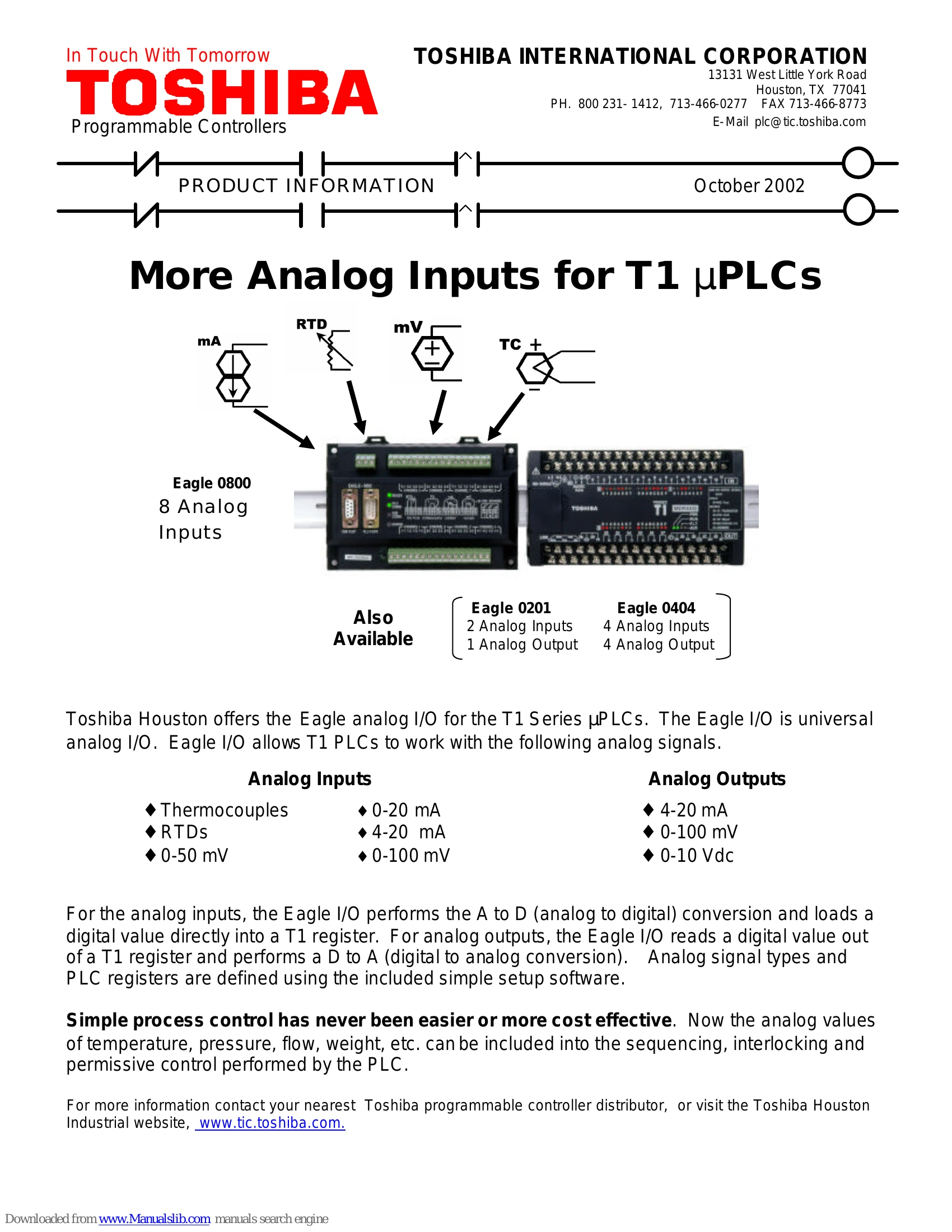

Page 1 describes the Toshiba Eagle analog I/O modules for the T1 Series µPLCs, highlighting their universal analog I/O capabilities. It lists the supported analog signal types for both inputs (Thermocouples, RTDs, 0-50 mV, 0-20 mA, 4-20 mA, 0-100 mV) and outputs (4-20 mA, 0-100 mV, 0-10 Vdc). The document explains that Eagle I/O performs A to D conversion for inputs and D to A conversion for outputs, with signal types and PLC registers configured using included software. It emphasizes the ease and cost-effectiveness of using these modules for process control, integrating analog values like temperature, pressure, and flow into PLC sequencing and interlocking.
Page 2 provides detailed specifications for the Analog Inputs and Outputs, including part numbers, I/O register assignment, and specific input/output ranges and resolutions. It also includes general specifications covering communication ports, environmental conditions (temperature, humidity), immunity standards (ESD, Transients, Radiated Susceptibility), emissions, certifications (CE, CSA), isolation, size, mounting, and weight for different Eagle module models (0800, 0404, 0201). A table of Order Numbers lists the specific Eagle units and necessary connection cables, noting that setup software is included with each unit and cables must be ordered separately.
Troubleshooting and error codes
| ITEM | SPECIFICATION |
|---|---|
| Part Number: | See Order Numbers Below |
| I/O Registers Assigned: | None (Uses Data Registers, 1 Register per Channel Designated by Sfwr) |
| Input Range: | Thermocouple Resolution J, K, R, S, T, E, N, & B. 0-100 mV, Cold Junction Compensation Error 1° maximum, 0.5°C typical. |
| Input Range: | RTD Resolution PT100 (0.00395 and 0.00385), 3 Wire Compensation, Current Sense 0.5ma. Range: -200° to 800° C |
| Input Range: | Voltage Current Resolution 0-100 mV, 0-10 V (via PLC scaling/external shunt resistor) 0-20 mA 12 bit |
| ITEM | SPECIFICATION |
|---|---|
| Part Number: | See Order Numbers Below |
| I/O Registers Assigned: | None (Uses Data Registers, 1 Register per Channel Designated by Sfwr) |
| Output Range: | Voltage Current 0-10 V, Minimum Load = 400 Ω 4-20 mA Maximum Load = 500 Ω |
| ITEM | GENERAL | SPECIFICATION |
|---|---|---|
| Communication Ports: | PLC IBM |
Connects to T1 Programming Port Connects to Computer for Setup Connects to OIS for PLC Access |
| Temperature: | Operating: 0° to 50° C Storage: -25° to 80° C |
|
| Humidity: | 10% to 90% Non condensing | |
| Immunity to ESD: | Level 3 per IEC 61000-4-2 | |
| Immunity to Transients: | Level 3 per IEC 61000-4-4 | |
| Radiated Susceptibility: | Level 3 per IEC 61000-4-3 | |
| Emissions: | EN55011 CISPR A | |
| Certifications: | CE, CSA | |
| Isolation: | Analog isolated from Digital, no isolation between channels. | |
| Size | Eagle 0800 & 0404 Eagle 0201 |
155mm x 102mm x 48mm 94mm x 42mm x 47 mm |
| Mounting: | DIN rail or through hole | |
| Weight | Eagle 0800 & 0404: 0.5 kg Eagle 020:1 02 kg |
| ITEM | ORDER NUMBERS | DESCRIPTION |
|---|---|---|
| Eagle0201U | 2 Universal Analog Inputs, 1 Analog Output. | |
| Eagle0404U | 4 Universal Analog Inputs, 4 Analog Outputs. | |
| Eagle-0800U | 8 Universal Analog Inputs. | |
| TKEAGLE05T1 | Cable, 50 cm, Connects T1 to Eagle Exp.Unit | |
| TKEAGLE20T1 | Cable, 2 m, Connects T1 to Eagle Exp.Unit1 | |
| TKEAGLE20T2 | Cable, 2 m, Connects T2 to Eagle Exp. Unit | |
| NOTES: 1. Each Eagle unit contains setup software. 2. Connection cables must be ordered separately |
||
