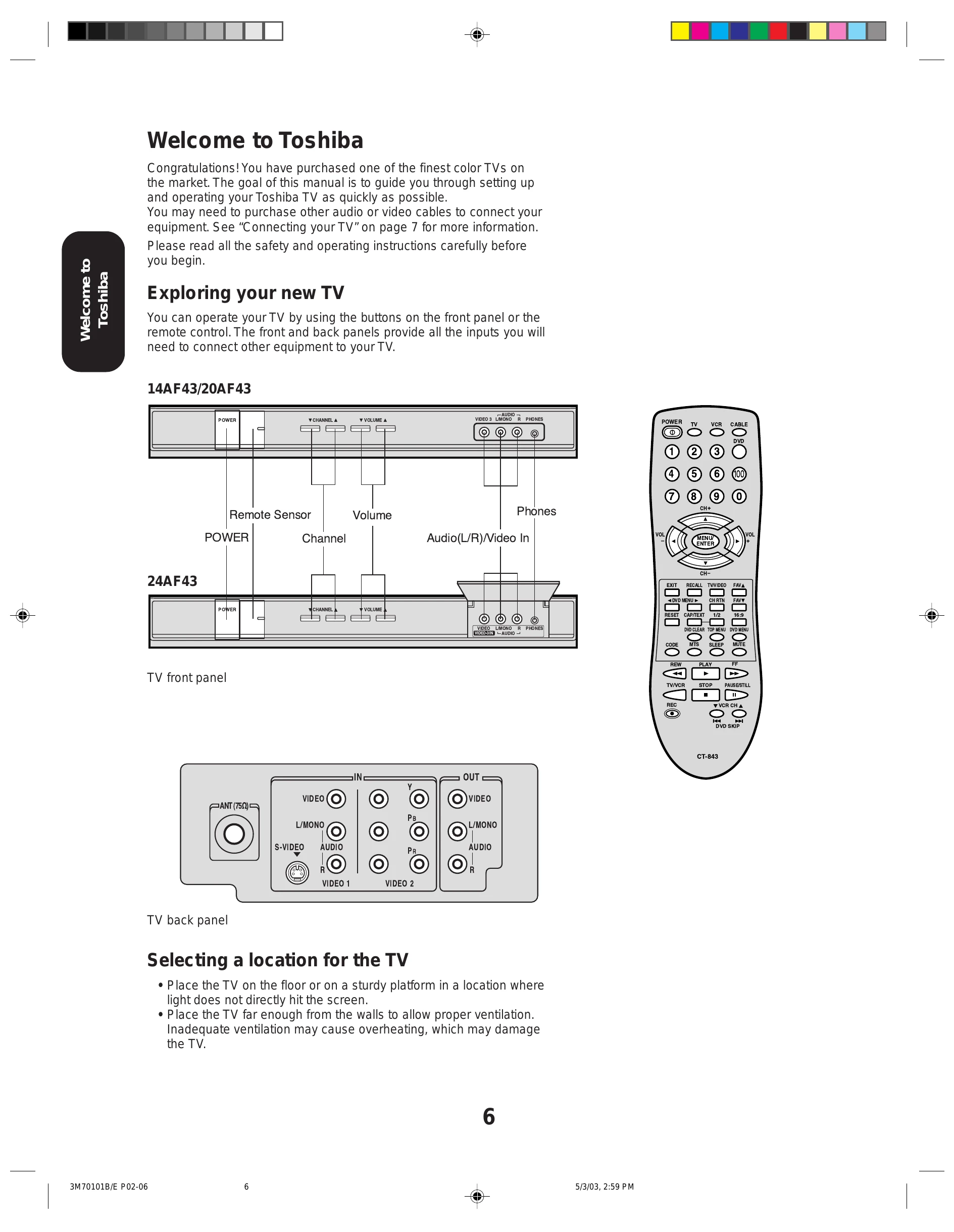

Manual for 14AF43

Manual for 14AF43

Brand: TOSHIBA

Category: Television

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:36 p.m.

Manual Publish Date: 2003-04

Warranty Information

Offers a limited warranty on labor, parts, and picture tube, with varying durations for each component.

  • Basic Operation: Use the front panel buttons or the remote control to operate the TV. The remote control can also operate compatible VCRs, DVD players, and cable TV converters after programming.
  • Connections: Connect external devices like VCRs, DVD players, satellite receivers, and audio amplifiers using the provided A/V, S-video, component video, or coaxial cables. Refer to connection diagrams for specific setup.
  • Setup: Program TV channels automatically or manually. Set up favorite channels, adjust picture and sound quality, and configure on-screen display language.
  • Features: Utilize features like V-Chip parental controls, channel locking, sleep timer, on/off timer, closed captioning, and picture size adjustments.
  • Troubleshooting: Consult the troubleshooting section for solutions to common problems like no picture, no sound, or poor reception.

Troubleshooting and error codes

Problem Solution
TV will not turn on • Make sure the power cord is plugged in, then press POWER.
• The remote control batteries may be dead. Replace the batteries.
No picture, no sound • Check the antenna/cable connections.
• This TV will not accept or display 480p or 720p progressive scan signals or 1080i interlaced high-definition signals through its ColorStream inputs. Switch the other device's output to 480i interlaced mode first (see page 9).
No sound, picture OK • The sound may be muted. Press VOLUME.
• The station may have broadcast difficulties. Try another channel.
• The MTS feature may be in SAP mode. Press the MTS button on the remote control until STEREO (or MONO) mode is active.
Poor sound, picture OK • The station may have broadcast difficulties. Try another channel.
• The MTS feature may be in SAP mode. Press the MTS button on the remote control until STEREO (or MONO) mode is active.
Poor picture, sound OK • Check the antenna connections.
• The station may have broadcast difficulties. Try another channel.
• Adjust the PICTURE menu.
• This TV will not accept or display 480p or 720p progressive scan signals or 1080i interlaced high-definition signals through its ColorStream inputs. Switch the other device's output to 480i interlaced mode first (see page 9).
Poor reception of broadcast channels • The station may have broadcast difficulties. Try another channel.
• Check the antenna connections.
• If you are using a VCR, make sure the TV/VCR button is set correctly.
• Make sure TV/CABLE is set to CABLE mode.
Cannot receive above channel 13 • The channel may be blocked by the V-Chip feature or CH LOCK feature, or erased with the add/erase feature.
Unable to select a certain channel • Check the VIDEO LOCK feature.
Cannot access signal input sources (Video1, Video2, Video3 and ColorStream) and/or Channels 3 and 4 • The station may have broadcast difficulties. Try another channel.
Multiple images • Use a highly directional outdoor antenna.
Poor color or no color • The station may have broadcast difficulties. Try another channel.
• Adjust the TINT and/or COLOR in the PICTURE menu.
• If you change the direction of the TV while it is turned on, the picture could suffer from color shading. If so, turn off the TV and allow it to cool for several hours before turning it on again.
Black box on screen • Repeatedly press CAP/TEXT to turn off the Closed Caption Text mode.
No stereo or SAP sound from a known MTS broadcast • Make sure the MTS feature is set properly.
The V-Chip PIN code does not work (U.S. V-Chip system only) • Change or reset your PIN code (page 18 and 19).
The remote control does not operate • Make sure the TV/VCR/DVD/CABLE mode is set properly.
• Remove all obstructions between the remote control and the TV.
• The remote control batteries may be dead. Replace the batteries.
