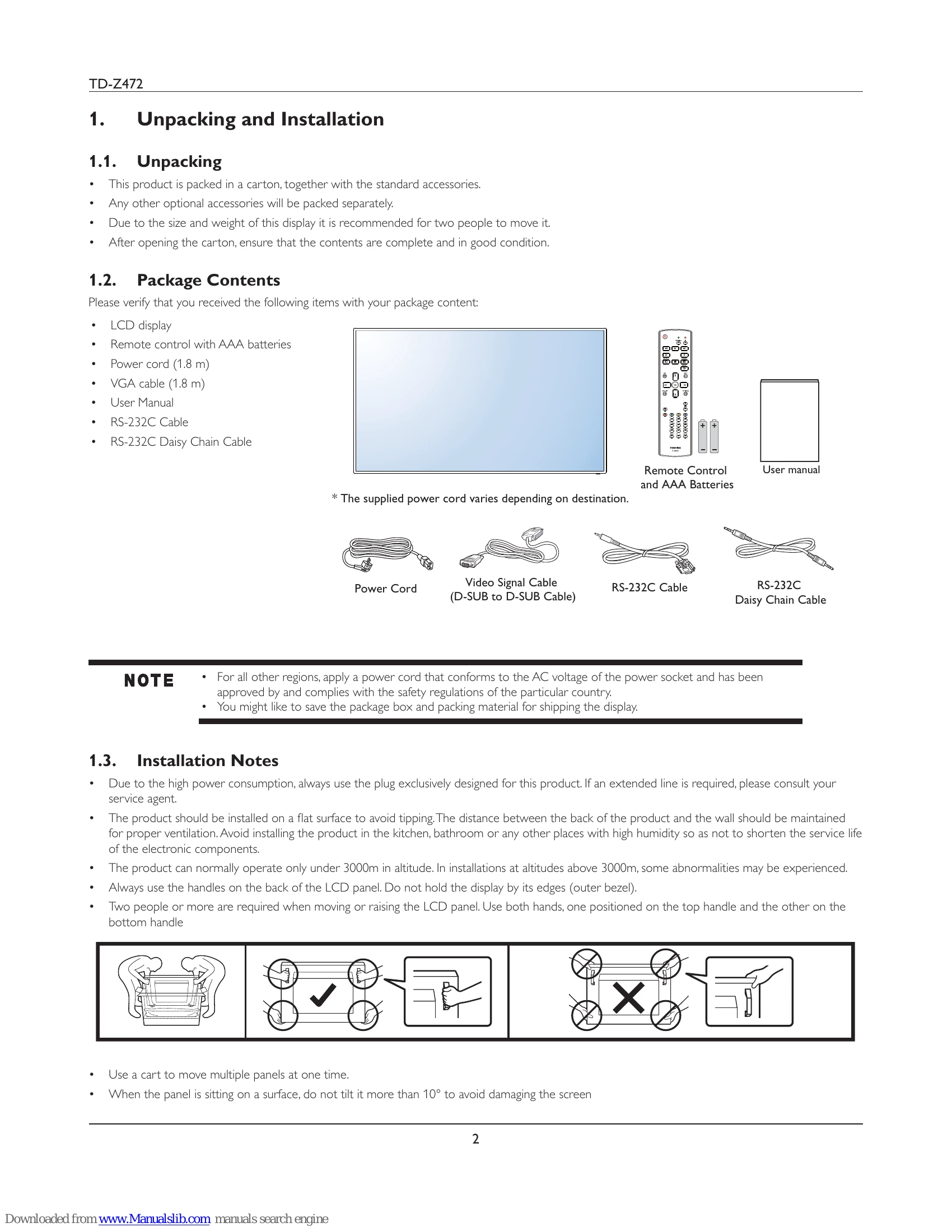

Unpacking and Installation

  1. Unpack the carton and verify contents.
  2. Handle with care, two people recommended for moving.
  3. Install table stands or wall mount following instructions.
  4. Connect power cord and other cables as needed.
  5. Avoid displaying static content to prevent image retention.

Parts and Functions

  1. Familiarize yourself with the control panel buttons.
  2. Identify and understand the function of various input/output terminals.
  3. Learn how to use the remote control, including battery installation and operating range.

Connecting External Equipment

  1. Connect DVD/VCR/VCD players using Component, Video Source, or HDMI inputs.
  2. Connect a PC using VGA, DVI, HDMI, or DisplayPort inputs.
  3. Connect audio equipment like external speakers or amplifiers.
  4. Set up daisy-chain configurations for multiple displays.

Troubleshooting and error codes

Symptom Possible Cause Remedy
No picture is displayed 1. The power cord is disconnected.
2. The main power switch on the back of the display is not switched on.
3. The selected input has no connection.
4. The display is in standby mode. 		1. Plug in the power cord.
2. Make sure the power switch is switched on.
3. Connect a signal connection to the display.
Interference displayed on the display or audible noise is heard Caused by surrounding electrical appliances or fluorescent lights. Move the display to another location to see is the interference is reduced.
Color is abnormal The signal cable is not connected properly. Make sure that the signal cable is attached firmly to the back of the display.
Picture is distorted with abnormal patterns 1. The signal cable is not connected properly.
2. The input signal is beyond the capabilities of the display. 		1. Make sure that the signal cable is attached firmly.
2. Check the video signal source to see if it is beyond the range of the display. Please verify its specifications with this display's specification section.
Display image doesn't fill up the full size of the screen 1. The zoom mode is not set correctly.
2. Scan Mode may be set incorrectly to underscan.
3. If the image exceeds the screen size, Scan Mode may need to be set to Underscan. 		Use the Zoom mode or Custom zoom function in the Screen menu to fine tune display geometry and time frequency parameter.
Can hear sound, but no picture Improperly connected source signal cable. Make sure that both video inputs and sound inputs are correctly connected.
Can see picture but no sound is heard 1. Improperly connected source signal cable.
2. Volume is turned all the way down.
3. {Mute} is turned on.
4. No external speaker connected when the internal speaker is set to off. 		1. Make sure that both video inputs and sound inputs are correctly connected.
2. Press [+] or [-] button to hear sound.
3. Switch MUTE off by using the [MUTE] button.
4. Connect external speakers and adjust the volume to a suitable level or set the internal speaker switch to on.
Some picture elements do not light up Some pixels of the display may not turn on. This display is manufactured using an extremely high level of precision technology: however, sometimes some pixels of the display may not display. This is not a malfunction.
After-Images can still be seen on the display after the display is powered off. (Examples of still pictures include logos, video games, computer images, and images displayed in 4:3 normal mode) A still picture is displayed for an over extended period of time Do not allow a still image to be displayed for an extended period of time as this can cause a permanent after-image to remain on the display.
