Brand: VersaPro
Category: Computers
Document Type: Manual
Language: EN
Manual for VG23T/B-T
Uploaded: Nov. 21, 2025, 7:06 p.m.
Manual Publish Date: 2016-12-01
Warranty Information
Warranty details are not explicitly stated in this section of the manual.
- Windows Setup: Initial configuration of the operating system, including user name and PC name entry, network connection setup, and Cortana integration.
- Hardware Overview: Identification of major computer components like LCD display, keyboard, touchpad, ports (USB, HDMI, LAN, DisplayPort), status LEDs, and battery.

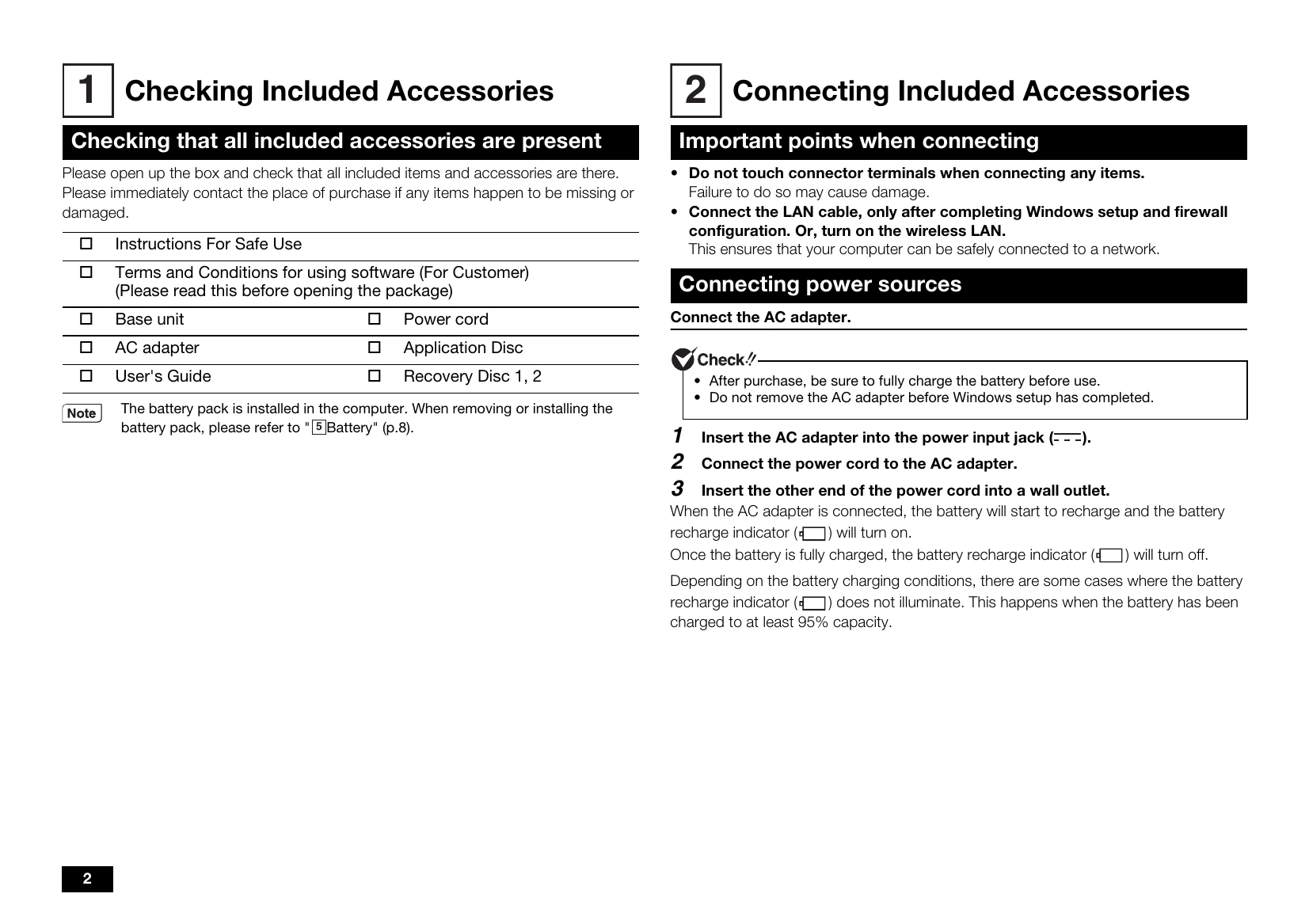

- Connectivity: Instructions for connecting power sources, wired and wireless networks, and external devices via USB and display ports.
- Memory Installation: Steps to install additional RAM by accessing the internal components of the computer.
- System Configuration: Guidance on entering BIOS setup for system configuration, restoring factory settings, and initializing the security chip.
- Applications & Utilities: Information on pre-installed software like Microsoft Office and Battery Tool, including installation, uninstallation, and usage for diagnostics and performance.
- Data Management: Procedures for creating partitions on the hard disk and securely deleting data.
- Recovery Options: Instructions for recovering the system using recovery discs or Windows functions (Refresh/Reset) and creating a recovery drive.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| If the computer does not start up | System does not start up | Connect the "recovery drive" to the USB port, turn on the power and press <F12> key, select startup device, choose keyboard layout, enter recovery key if BitLocker is displayed, select [Troubleshoot], then [Recover from a drive]. |
| If the setup screen is not displayed | BIOS Setup screen appears instead of Windows setup | Press the <F2> key, select [System Date] and [System Time] menus to set date and time, press <F9> to load default settings, press <F10> to save and restart. |
| If the computer is unresponsive or shows an error message during setup | System unresponsive or error message | Note the error message, hold down the power switch for at least four seconds for a forced shutdown. Wait five seconds before powering on and refer to "If you accidentally turn off the power during setup". |
| Battery recharge indicator does not illuminate | Battery is fully charged or nearly fully charged | This is normal; it happens when the battery has been charged to at least 95% capacity. |
| Cannot recharge battery although enabled by BIOS Setup utility | Possible connection issue | Disconnect the USB cable then reconnect it. |
| Peripheral device not detected after installing or removing | Fast Startup function is enabled | Disable the "Fast Startup" function by unchecking "Turn on fast startup (recommended)" in Power Options. |
