Warranty Information

Refer to the manufacturer for specific warranty details.

Installation Sequence

Follow these steps for installation:

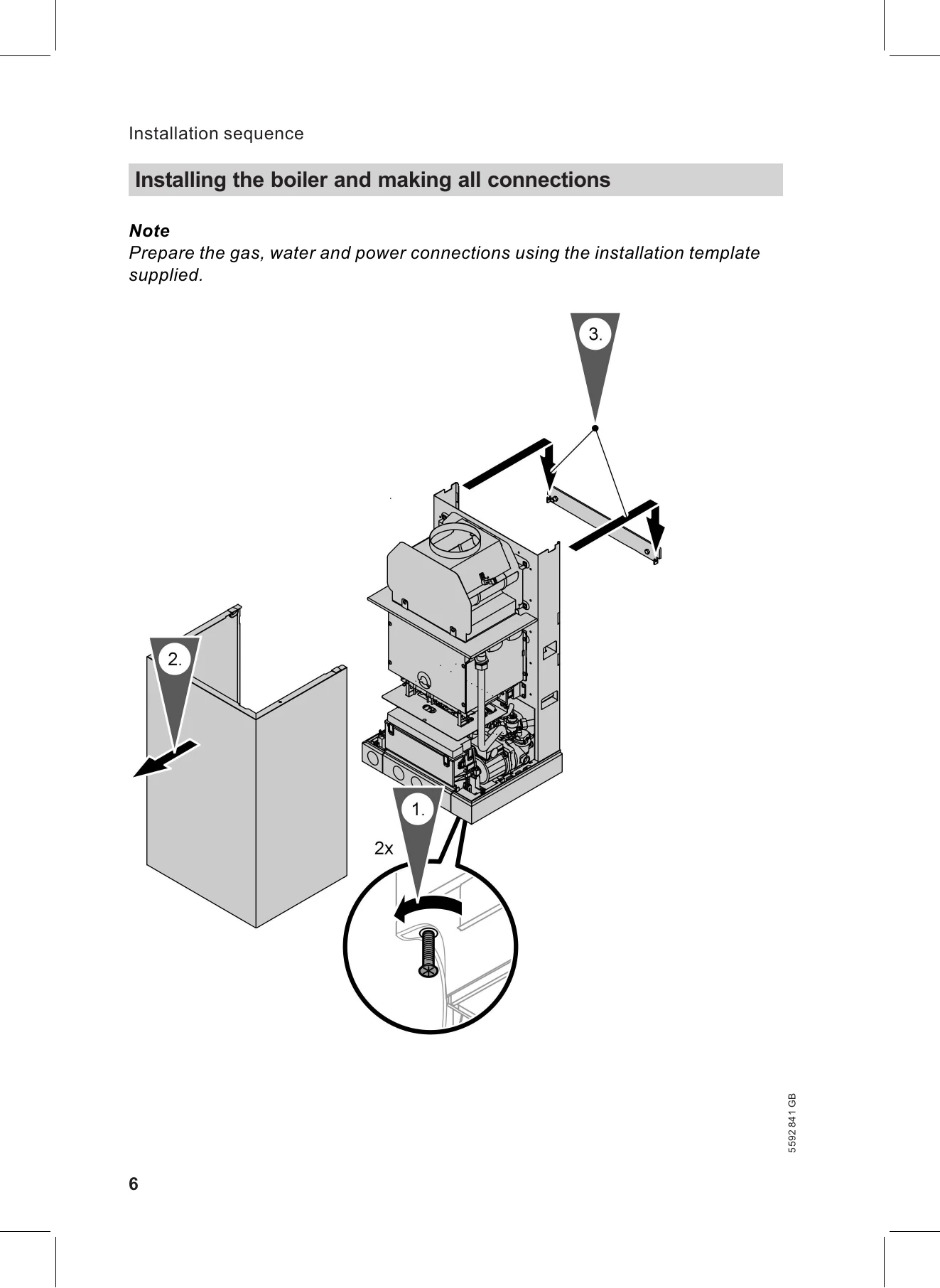

  1. Installing the boiler and making all connections: Prepare gas, water, and power connections using the provided template. (Page 6)
  2. Flue gas connection: Connect the flue outlet to the chimney, ensuring proper cross-section match and clearance. Create a test port. (Page 7)
  3. Gas connection: Install a gas shut-off valve, perform a leak/soundness test (max 150 mbar), and vent the gas supply pipe. (Page 7)
  4. Opening the control unit: Access and open the control unit. (Page 8)
  5. Electrical connections: Connect power supply, fuse, ionization lead, and optional components like the cylinder temperature sensor and Vitotrol 100. Ensure correct core terminations and appropriate fuse rating (max 16 A). (Pages 9-10)
  6. Routing connecting cables: Secure cables to avoid contact with hot components. (Page 11)

Commissioning, Inspection, Maintenance

These steps are crucial after installation:

  1. Filling and venting the heating system: Ensure correct fill water quality and system pressure (min > 0.8 bar). (Page 14)
  2. Checking gas type: Verify and record the gas type and Wobbe index. Convert burner if necessary. (Page 15)
  3. Checking static and supply pressure: Measure and record pressures according to specifications. (Pages 16-17)
  4. Checking the nozzle pressure: Select upper and lower outputs and test nozzle pressure, adjusting as needed. (Pages 18-21)
  5. Draining the boiler or heating system: Only drain when water temperature is below 40°C and the diverter valve servomotor is in its center position. (Page 22)
  6. Checking and cleaning the burner: Perform after switching off power and closing the gas shut-off valve. (Page 22)

Troubleshooting and error codes

Fault Possible Cause Remedy
No ignition Gas supply interrupted Check gas shut-off valve.
Gas pressure too low Check gas supply pressure.
Ignition electrode faulty Check ignition electrode.
Boiler shuts down Overheating Check circulation, fill level, and expansion vessel.
Flue gas sensor fault Check flue gas sensor.
Water pressure too low Check system pressure.
Error code displayed Refer to the control unit diagnostics section. See page 32.
