Warranty Information

Please keep the serial number label for your warranty claims.

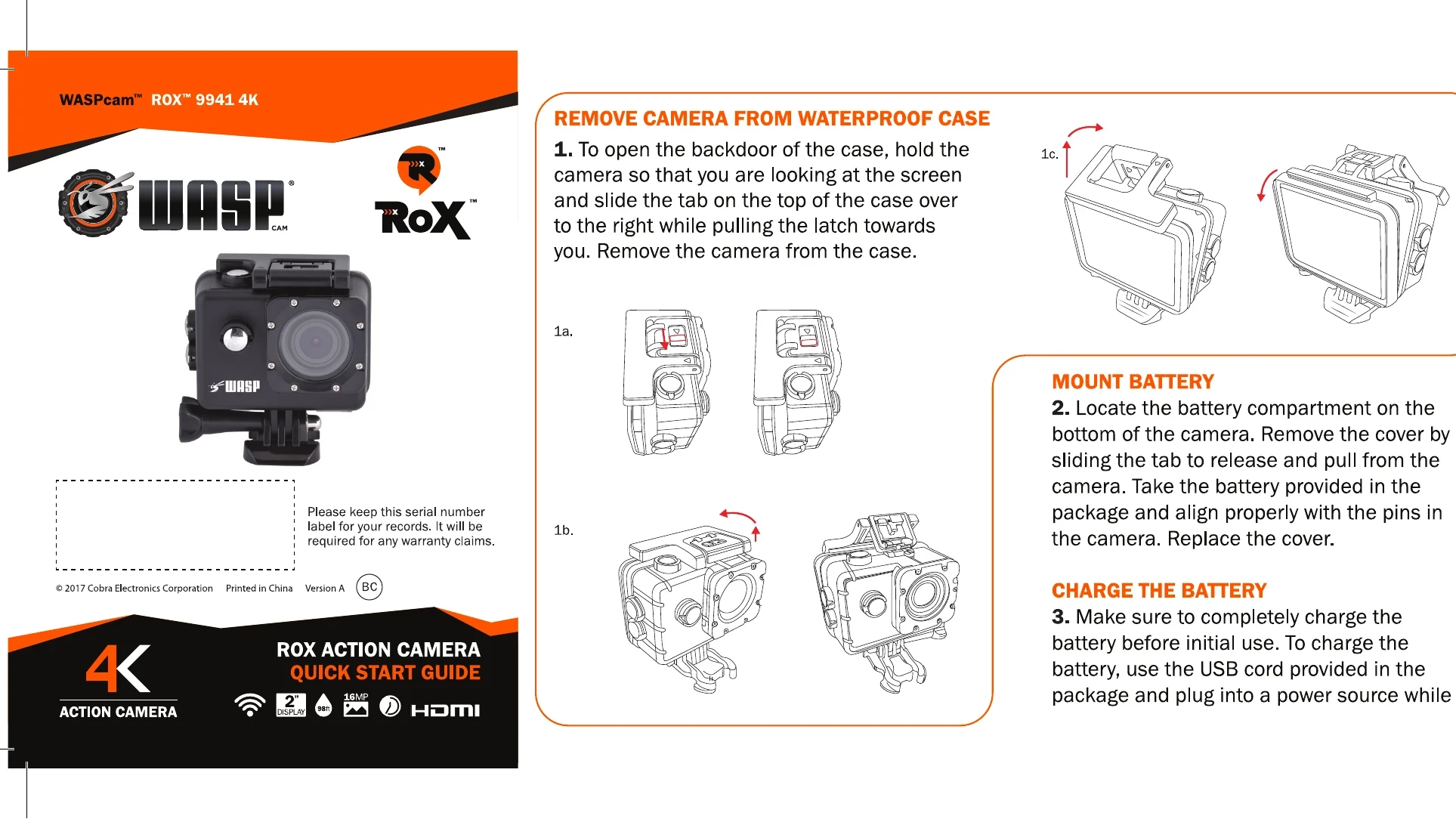

1. Remove Camera from Waterproof Case: Slide tab, pull latch to open, remove camera. 2. Mount Battery: Locate compartment, slide tab, pull cover, align battery with pins, replace cover. 3. Charge Battery: Connect fully charged battery via USB to power source. Red LED indicates charging. 4. Storage: Insert MicroSDHC card (up to 32GB, Class 10/UHS-1) into the side slot until it clicks, ensuring correct orientation. 5. Power On: Press and hold the 'mode' button on the front of the camera. 6. Buckle Mounting System: Attach adhesive mount to a clean surface. Slide mounting buckle into adhesive mount. 7. Fin-Style Mounting System: Unscrew mounting screw, remove camera from mount, align fins, push camera in, screw back to secure. 8. Record: Toggle modes with Power/Mode button. Press 'OK' to start/stop recording or take a picture. 9. WASPcam ROX App: Download app, turn on camera Wi-Fi (hold up button), connect via app using camera Wi-Fi SSID/Password.
